Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
10 -2 630 000 7466 BOLT,HEX-SCT 2 M2X6
10 -4 616 122 3135 SPRING PIN 1 1CC2SD1000300
10 -6 630 000 7503 BOLT,HEX-SCT 4 M3X6
11 -2 630 000 7466 BOLT,HEX-SCT 2 M2X6
11 -4 616 122 3135 SPRING PIN 1 1CC2SD1000300
11 -6 630 000 7503 BOLT,HEX-SCT 4 M3X6
12 -2 630 000 7466 BOLT,HEX-SCT 2 M2X6
12 -4 616 122 3135 SPRING PIN 1 1CC2SD1000300
12 -5 616 125 6850 SPRING PIN 2 1CC2SD1000040
12 -6 630 000 7503 BOLT,HEX-SCT 2 M3X6
13 -2 630 000 7466 BOLT,HEX-SCT 2 M2X6
13 -4 616 122 3135 SPRING PIN 1 1CC2SD1000300
13 -5 616 125 6850 SPRING PIN 2 1CC2SD1000040
13 -6 630 000 7503 BOLT,HEX-SCT 2 M3X6
14 -2 630 000 7466 BOLT,HEX-SCT 2 M2X6
14 -4 616 122 3135 SPRING PIN 1 1CC2SD1000300
14 -5 616 125 6850 SPRING PIN 2 1CC2SD1000040
14 -6 630 000 7503 BOLT,HEX-SCT 2 M3X6
15 616 123 3516 SPRING PIN 2 648FB-21H-518 1CC2SD1000440
16 616 125 6799 SUPPORTER 2 648FB-21B-016 1CC2FC1501431
17 616 125 6812 FIBER 1 648FB-21H-514 1CC4V23500290
18 630 000 7503 BOLT,HEX-SCT 2 M3X6
19 630 000 7534 BOLT,HEX-SCT 2 M3X12
20 630 000 7503 BOLT,HEX-SCT 2 M3X6
23 616 125 6805 COVER 1 648FB-21B-017 1CC2CA0505670
24 630 000 7503 BOLT,HEX-SCT 2 M3X6
NOTE
8-2
9705-001
MODEL TIM-1100L

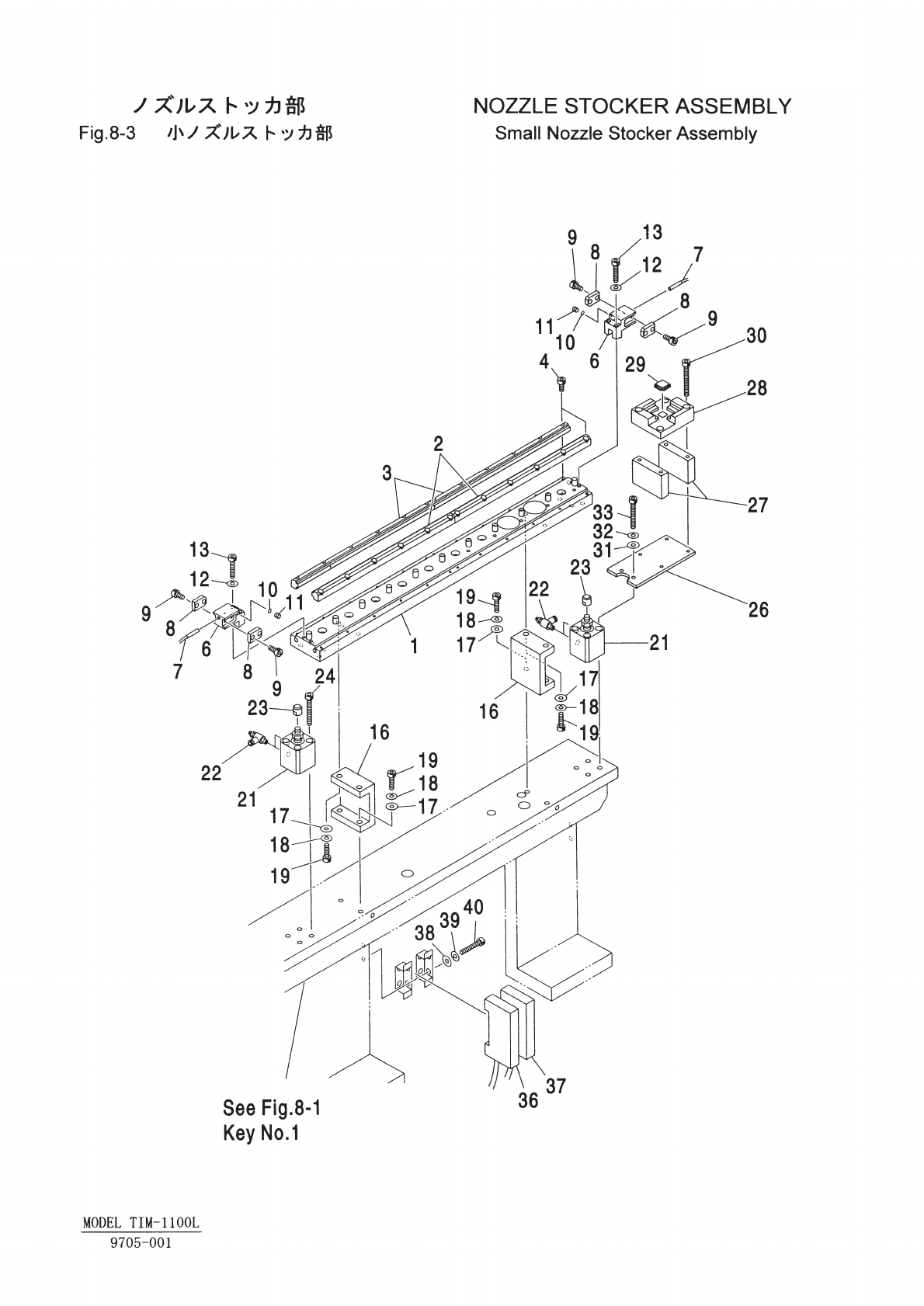

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 066 9770 BLOCK(NOZZLE STOCK) 1 648FC-21B-001
2 616 121 9183 GUIDE 2 648FC-21B-017 1CC2GG2001131
3 616 121 9213 PLATE 2 648FC-21B-021 1CC2FB0507470
4 630 000 7466 BOLT,HEX-SCT 24 M2X6
6 616 125 8861 BLOCK 2 648FC-21B-013 1CC2FB1002872
7 616 125 6812 FIBER 1 648FC-21H-512 1CC4V23500290
8 616 125 8878 CUSHION 4 648FC-21B-018 1CC2FJ1500611
9 630 000 7466 BOLT,HEX-SCT 8 M2X6
11 630 000 8883 SET SCREW 2 M3X4 SET
12 411 141 2806 WASHER SPR 3 4 SW3
13 630 000 7565 BOLT,HEX-SCT 4 M3X20
16 616 121 9121 FOOT(MOUNT) 2 648FC-21B-010 1CC2CG0500440
17 411 141 4008 WASHER V 4X9X0.8 8 FW4
18 411 141 2905 WASHER SPR 4 8 SW4
19 630 000 7640 BOLT,HEX-SCT 8 M4X14
21 616 121 9220 CYLINDER 2 648FC-21H-501 1CC2BA0506040
22 616 111 8226 SPEED CONTROLLER 4 648FC-21H-510 1CC2BC0800141
23 616 125 8847 BLOCK 2 648FC-21B-009 1CC2FB1002861
24 630 000 7589 BOLT,HEX-SCT 4 M3X30
26 630 063 0343 BLOCK 1 648FC-21B-024
27 630 063 0336 BLOCK 2 648FC-21B-023
28 630 060 6294 BLOCK 1 648FC-21B-022
29 630 062 8944 BLOCK(JIGU) 1 648FC-21B-025
30 630 000 7596 BOLT,HEX-SCT 4 M3X35
31 411 141 3902 WASHER V 3X7X0.5 2 FW3
32 411 141 2806 WASHER SPR 3 2 SW3
33 630 000 7596 BOLT,HEX-SCT 2 M3X35
36 616 121 9015 AMP 1 648FB-21H-515 1CC4V23200400
37 616 121 9015 AMP 1 648FC-21H-511 1CC4V23200400
38 411 141 3902 WASHER V 3X7X0.5 2 FW3
39 411 141 2806 WASHER SPR 3 2 SW3
40 630 000 7572 BOLT,HEX-SCT 2 M3X25
NOTE
8-3
9705-001
MODEL TIM-1100L
