Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 067 3074 FRAME 1 648BE-21B-001
2 616 901 9756 FRAME 1 648BC-21B-001 1CC2FA0502105
3 616 901 9723 FRAME 1 648BC-21B-002 1CC2FA0502074
4 411 141 5401 WASHER V 20X37X3 12 FW20
5 411 141 6804 WASHER SPR 20 12 SW20
6 630 000 8388 BOLT,HEX-SCT 12 M20X60
7 411 143 9407 NUT HEX 24 6 M24-3
8 630 003 0570 FEED SCREW 6 648BE-21H-506
9 616 124 6158 FOOT(MOUNT) 6 648BE-21B-019 1CC2CG0500060
10 616 121 7202 CASTER 6 648BE-21H-534 1CC2CG1000030
11 411 141 4503 WASHER V 8X17X1.6 24 FW8
12 411 141 3100 WASHER SPR 8 24 SW8
13 630 000 8005 BOLT,HEX-SCT 24 M8X16
NOTE
1-1
9705-001

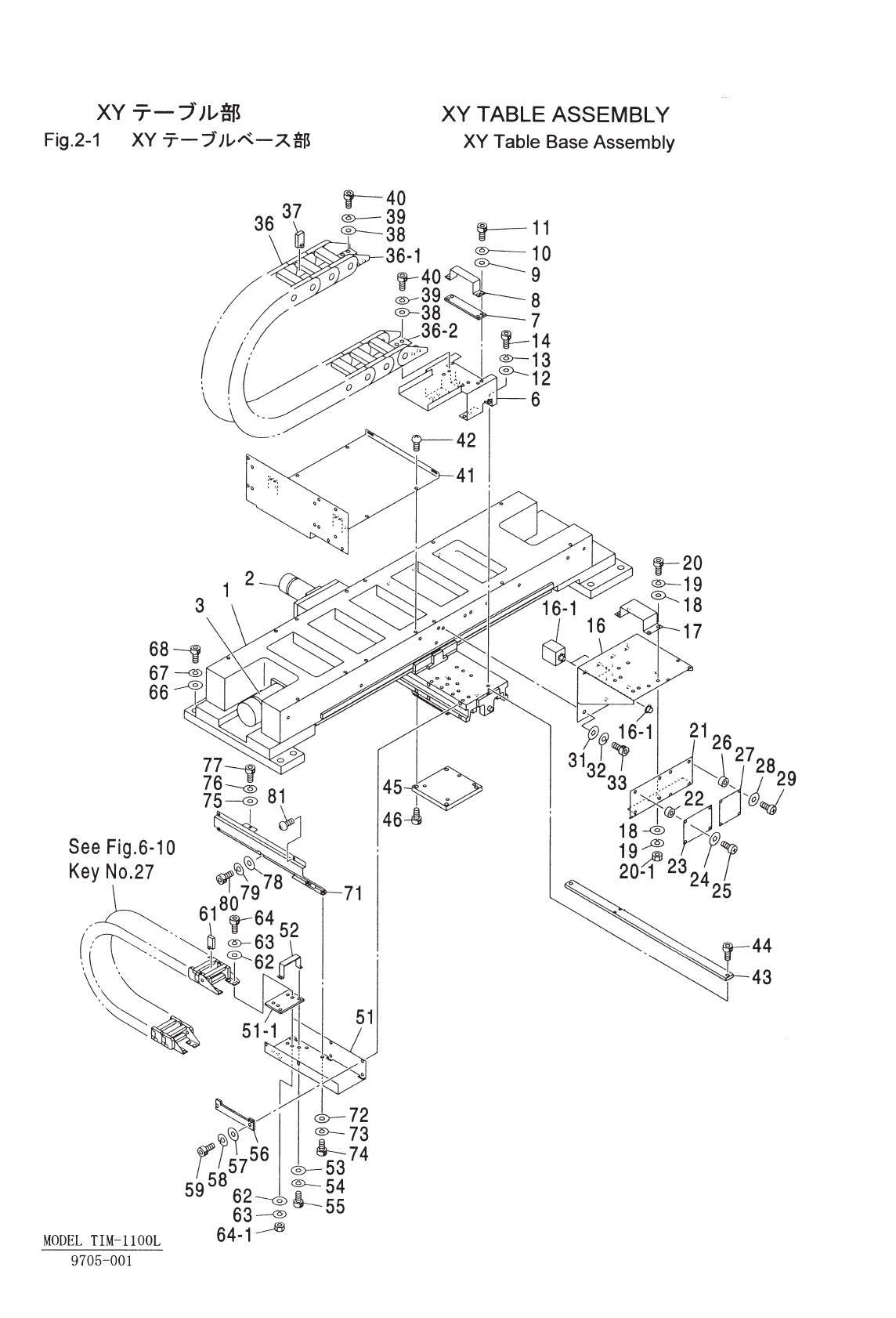

MODEL TIM-1100L
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 900 0066 TABLE 1 648BD-21H-501 1CC2KA0500502
2 616 121 6687 AC SERVO MOTOR 1 648BD-21H-505 1CC4M16000180
3 616 121 6663 AC SERVO MOTOR 1 648BD-21H-502 1CC4M16000170
6 616 125 8014 HOLDER 1 648BC-21B-005 1CC2FC0506782
7 630 052 9258 BLOCK 1 648BC-21B-082
8 616 121 5987 SADDLE 1 648BC-21B-006 1CC2FC2000261
9 411 141 4107 WASHER V 5X10X1 4 FW5
10 411 141 6705 WASHER SPR 5 4 SW5
11 630 000 7763 BOLT,HEX-SCT 4 M5X16
12 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
13 411 141 3001 WASHER SPR 6 6 SW6
14 630 000 7886 BOLT,HEX-SCT 6 M6X16
16 630 058 1676 BRACKET 1 648BC-21B-003
16 -1 616 121 7837 CONTROL UNIT 2 648DB-21D-501 1CC4U24010170
17 616 121 5963 SADDLE 1 648BC-21B-004 1CC2FC2000251
18 411 141 4107 WASHER V 5X10X1 6 FW5
19 411 141 6705 WASHER SPR 5 6 SW5
20 630 000 7732 BOLT,HEX-SCT 4 M5X8
20 -1 411 141 0505 NUT HEX 5 2 M5
21 630 058 4912 BRACKET(PCB) 1 648BC-21B-068
22 616 124 6110 SPACER 4 648JC-21D-521 1CC4S60500122
23 630 062 5134 P.C.B,MOUNT 1 648JC-21U-501
24 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
25 411 042 0703 SCR PAN 3X8 4 M3X8 PAN
26 616 121 5598 SPACER 4 648HB-21D-557 1CC4S60500140
28 411 086 4408 WASHER SPR 3 4 SW3 F
29 411 042 0703 SCR PAN 3X8 4 M3X8 PAN
31 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
32 411 141 3001 WASHER SPR 6 3 SW6
33 630 000 7886 BOLT,HEX-SCT 3 M6X16
36 616 121 6526 BEAR 1 648BC-21H-501 1CC2CJ3500830
36 -1 616 110 3123 HOLDER 1 648BC-21H-503 1CC2FC0502920
36 -2 616 110 3116 HOLDER 1 648BC-21H-502 1CC2FC0502910
37 616 121 6632 SPACER 10 648BC-21H-515 1CC2FF0502200
38 411 141 4107 WASHER V 5X10X1 8 FW5
39 411 141 6705 WASHER SPR 5 8 SW5
40 630 000 7763 BOLT,HEX-SCT 8 M5X16
41 630 065 6848 BRACKET 1 648BC-21B-017
42 411 113 7501 SCR TRS 4X10 6 M4X10 TRS
43 616 124 6097 REINFORCEMENT 1 648BD-21B-010 1CC2FE0500650
44 630 000 7879 BOLT,HEX-SCT 2 M6X12
45 616 121 6649 BRACKET 1 648BD-21B-006 1CC2FC1005200
46 630 000 8012 BOLT,HEX-SCT 4 M8X20
51 630 053 7673 BRACKET 1 648BC-21B-008
51 -1 630 053 7680 PLATE 1 648BC-21B-084
52 630 053 7727 BRACKET 1 648BC-21B-007
53 411 141 4008 WASHER V 4X9X0.8 2 FW4
54 411 141 2905 WASHER SPR 4 2 SW4
55 630 000 7640 BOLT,HEX-SCT 2 M4X14
56 630 053 0063 BLOCK 1 648BC-21B-083
NOTE
2-1
9705-001
MODEL TIM-1100L
