Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 064 2100 BOX 1 648GH-21B-006
2 616 121 9695 BRACKET 3 648GH-21B-002 1CC2FC1005530
3 616 121 4706 CONNECTOR 24 648HG-21D-511 1CC4J13006190
4 411 141 4008 WASHER V 4X9X0.8 6 FW4
5 411 141 2905 WASHER SPR 4 6 SW4
6 411 141 0307 NUT HEX 4 6 M4
7 616 901 4810 PRINTED BOARD 6 648HG-21D-501 1CC4B18000121
8 616 123 8603 PRINTED BOARD ASSY 6 1CC0B18100061
9 630 061 2646 ACCESSORY,P.C.B 18 648HG-21D-524
10 411 119 1909 WASHER V 3X7X0.5 18 FW3 F
11 411 041 8908 SCR PAN 3X6 18 M3X6 PAN
12 411 108 7103 SCR FLT 3X10 6 M3X10 FLT
16 616 121 4904 CONNECTOR 1 648HB-21D-507 1CC4J13004041
17 411 034 7208 SCR FLT 3X8 3 M3X8 FLT
18 616 121 4928 CONNECTOR 1 648HB-21D-520 1CC4J13002120
19 616 121 4935 CONNECTOR HOLDER 2 648HB-21D-521 1CC4J13400011
26 616 121 4911 RECEPTACLE 1 648HB-21D-522 1CC4J11500030
27 616 125 6492 SELECTOR SWITCH 1 648GH-21D-503 1CC4S13500370
28 616 121 4126 PUSH SWITCH 1 648GH-21D-504 1CC4S11000220
29 616 121 4133 PUSH SWITCH 1 648GH-21D-505 1CC4S11000170
NOTE
11-14
9705-001
MODEL TIM-1100L

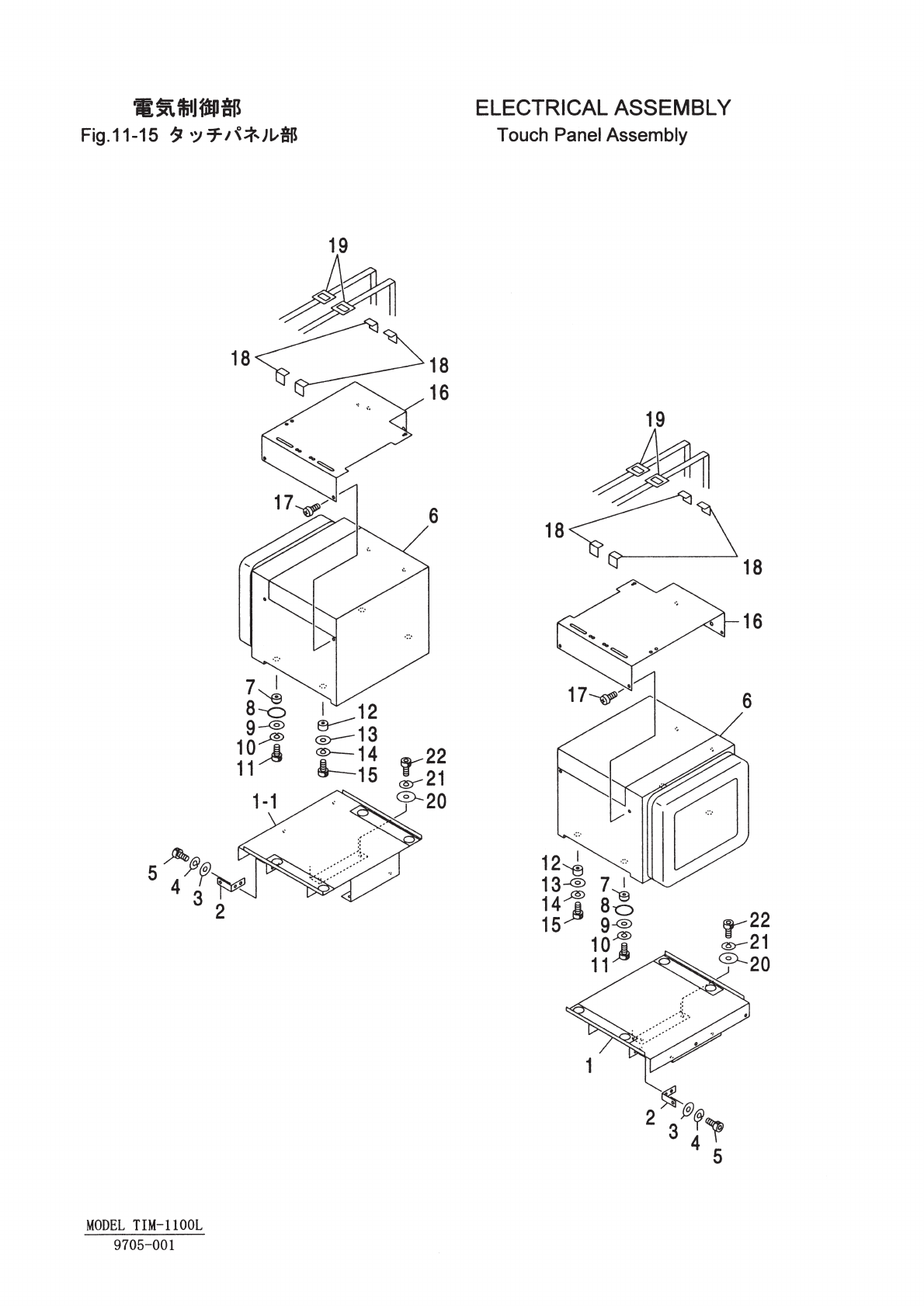

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 061 1151 BRACKET 1 648BC-21B-018
1 -1 630 061 1168 BRACKET 1 648BC-21B-019
2 616 121 6182 BRACKET 2 648BC-21B-030 1CC2FC1005171
3 411 141 4107 WASHER V 5X10X1 4 FW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7749 BOLT,HEX-SCT 4 M5X10
6 630 059 7950 UNIT,DISPLAY 2 648GG-21D-501
7 630 058 2352 SPACER 4 648BC-21B-088
8 630 003 3489 SEAL 4 648GG-21D-509
9 411 141 4008 WASHER V 4X9X0.8 4 FW4
10 411 141 2905 WASHER SPR 4 4 SW4
11 630 000 7657 BOLT,HEX-SCT 4 M4X16
12 630 057 9635 SPACER 4 648BC-21B-089
13 411 141 4008 WASHER V 4X9X0.8 4 FW4
14 411 141 2905 WASHER SPR 4 4 SW4
15 630 000 7657 BOLT,HEX-SCT 4 M4X16
16 630 057 4470 COVER 2 648BC-21B-086
17 411 051 2804 SCR TRS 4X8 6 M4X8 TRS
18 630 066 2627 SHEET 4 648BC-21B-087
20 630 001 0237 WASHER 8 BW6
21 411 141 3001 WASHER SPR 6 8 SW6
22 630 000 7893 BOLT,HEX-SCT 8 M6X20
NOTE
11-15
9705-001
MODEL TIM-1100L
