Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 122 3142 CHUTE 1 648FF-21B-001 1CC2HC2000232
2 616 122 3159 BOX 1 648FF-21B-003 1CC2CA2500560
3 411 141 4008 WASHER V 4X9X0.8 2 FW4
4 411 141 2905 WASHER SPR 4 2 SW4
5 630 000 7626 BOLT,HEX-SCT 2 M4X10
6 616 125 6614 SUPPORTER 1 648FJ-21B-001 1CC2FC1501443
7 616 122 3197 PHOTO SENSOR 3 648FJ-21H-502 1CC4V23000710
8 411 140 6300 SCR PAN 2X8 12 M2X8 PAN
9 630 063 9766 SHEET 2 648FJ-21H-501
10 616 122 3173 BOX 1 648FJ-21B-002 1CC2CA2500570
10 -1 616 122 3203 SPONGE 1 648FJ-21H-503 1CC2FJ1500380
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 616 122 1469 BRACKET 1 648JD-21B-018 1CC2FC1006060
15 411 141 3902 WASHER V 3X7X0.5 3 FW3
16 411 141 2806 WASHER SPR 3 3 SW3
17 630 000 7510 BOLT,HEX-SCT 3 M3X8
NOTE
5-3
9705-001
MODEL TIM-1100L

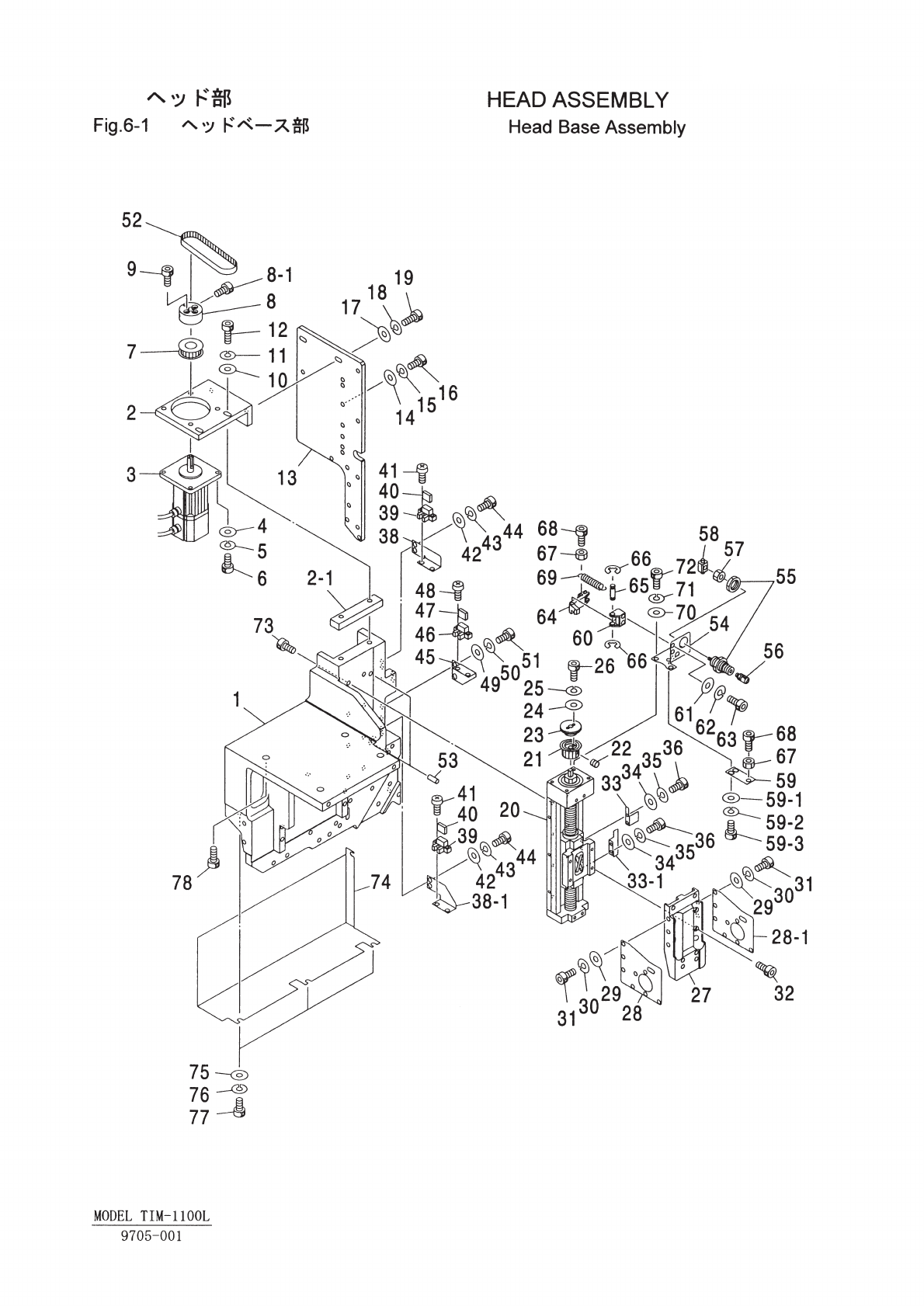

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 067 6006 BASE(HEAD) 1 648HC-21B-003
2 616 121 9916 BRACKET 1 648HC-21B-011 1CC2FC1005582
2 -1 630 057 8362 SPACER(MOTOR) 1 648HC-21B-101
3 616 125 9325 AC SERVO MOTOR 1 648HC-21H-503 1CC4M16000201
4 411 141 4107 WASHER V 5X10X1 4 FW5
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7763 BOLT,HEX-SCT 4 M5X16
7 616 914 2692 CONTROL UNIT 1 648HC-21H-602 1CC2GD2003913
8 630 057 8393 SET COLLAR 1 648HC-21B-104
8 -1 630 000 7756 BOLT,HEX-SCT 1 M5X12
9 630 000 7657 BOLT,HEX-SCT 6 M4X16
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7794 BOLT,HEX-SCT 2 M5X30
13 630 057 8386 PLATE 1 648HC-21B-103
14 411 141 4107 WASHER V 5X10X1 4 FW5
15 411 141 6705 WASHER SPR 5 4 SW5
16 630 000 7749 BOLT,HEX-SCT 4 M5X10
17 411 141 4107 WASHER V 5X10X1 2 FW5
18 411 141 6705 WASHER SPR 5 2 SW5
19 630 000 7749 BOLT,HEX-SCT 2 M5X10
20 630 060 8519 BALL SCREW 1 648HC-21H-601
21 616 125 9349 PULLEY 1 648HC-21H-506 1CC2GD2004050
22 630 000 8920 SET SCREW 1 M4X6 SET
23 630 058 9016 GEAR 1 648HC-21H-516
24 411 141 3902 WASHER V 3X7X0.5 2 FW3
25 411 141 2806 WASHER SPR 3 2 SW3
26 630 000 7558 BOLT,HEX-SCT 2 M3X16
27 616 125 9233 BASE 1 648HC-21B-023 1CC2FA1001933
28 616 125 9134 REINFORCEMENT 1 648HB-21B-099 1CC2FE0500581
28 -1 630 057 8348 PLATE 1 648HB-21B-155
29 411 141 3902 WASHER V 3X7X0.5 6 FW3
30 411 141 2806 WASHER SPR 3 6 SW3
31 630 000 7510 BOLT,HEX-SCT 6 M3X8
32 630 000 7626 BOLT,HEX-SCT 4 M4X10
33 616 125 9226 DOG 1 648HC-21B-019 1CC2LC1001111
33 -1 616 121 9947 DOG 1 648HC-21B-017 1CC2LC1001100
34 411 141 3902 WASHER V 3X7X0.5 4 FW3
35 411 141 2806 WASHER SPR 3 4 SW3
36 630 000 7503 BOLT,HEX-SCT 4 M3X6
38 630 057 8379 BRACKET(PHS) 1 648HC-21B-102
38 -1 616 121 9930 HOLDER 1 648HC-21B-015 1CC2FC0507310
39 616 111 8974 PHOTO MICRO SENSOR 2 648HC-21H-510 1CC4V24000021
40 616 111 8981 CONNECTOR 2 648HC-21H-511 1CC4J13000010
41 411 040 6202 SCR PAN 3X10 4 M3X10 PAN
42 411 141 3902 WASHER V 3X7X0.5 4 FW3
43 411 141 2806 WASHER SPR 3 4 SW3
44 630 000 7510 BOLT,HEX-SCT 4 M3X8
45 616 121 9923 HOLDER 1 648HC-21B-013 1CC2FC0507300
46 616 111 8974 PHOTO MICRO SENSOR 1 648HC-21H-510 1CC4V24000021
NOTE
6-1
9705-001
MODEL TIM-1100L
