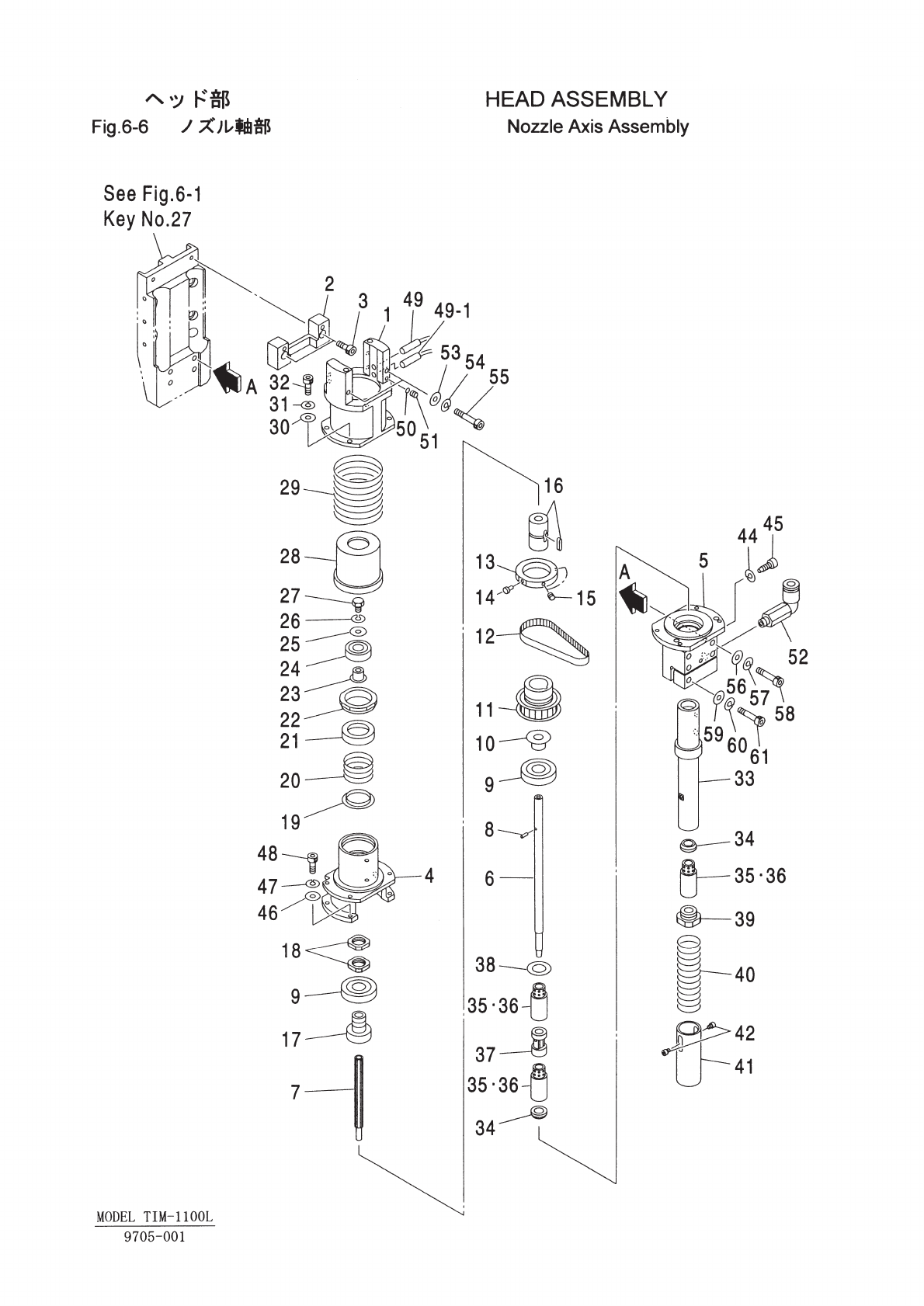

P-0107-002 - 第65页
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No. 1 630 057 8300 HOLDER(SPRING 2) 1 648HB-21B-151 2 630 057 8331 SPACER 1 648HB-21B-154 3 630 000 7527 BOLT,HEX-SCT 2 M3X10 4 616 125 8984 HOLDER 1 648HB-21B-043 …
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 057 8300 HOLDER(SPRING 2) 1 648HB-21B-151
2 630 057 8331 SPACER 1 648HB-21B-154
3 630 000 7527 BOLT,HEX-SCT 2 M3X10
4 616 125 8984 HOLDER 1 648HB-21B-043 1CC2FC0507224
5 616 125 9141 HOLDER 1 648HB-21B-101 1CC2FC0507692
6 616 125 8915 SHAFT 1 648HB-21B-005 1CC2GK0503405
7 616 125 9073 BALL SPLINE 1 648HB-21B-081 1CC2GG6500291
9 616 122 2640 BALL BEARING 2 648HB-21H-505 1CC2GF4000192
10 616 125 8946 HOLDER 1 648HB-21B-015 1CC2FC0507191
11 616 125 9172 PULLEY 1 648HB-21H-511 1CC2GD2004030
12 616 125 9196 BELT 1 648HB-21H-513 1CC2GD1504770
13 616 125 9097 DOG 1 648HB-21B-091 1CC2LC1001171
14 616 125 9103 DOG 1 648HB-21B-093 1CC2LC1001181
15 630 000 8883 SET SCREW 2 M3X4 SET
16 616 122 2633 BALL SPLINE 1 648HB-21H-501 1CC2GG6500151
17 616 122 2336 SHAFT 1 648HB-21B-019 1CC2GK0503410
18 616 122 2343 NUT 2 648HB-21B-021 1CC2SA1501990
19 616 122 2466 SUPPORTER 1 648HB-21B-045 1CC2FC1501450
20 630 055 1570 SPRING,COMP 1 648HB-21H-514
21 616 122 2473 SUPPORTER 1 648HB-21B-047 1CC2FC1501460
22 616 125 8991 SCREW 1 648HB-21B-049 1CC2SA0502421
23 616 122 2350 HOLDER 1 648HB-21B-023 1CC2FC0507200
24 630 068 6081 BEARING,RADIAL 1 648HB-21H-506
25 616 122 2367 WASHER 1 648HB-21B-025 1CC2SB0501660
26 411 141 2905 WASHER SPR 4 1 SW4
27 616 902 5292 BOLT 1 648HB-21B-027 1CC2SA1009144
28 616 125 9004 HOLDER 1 648HB-21B-051 1CC2FC0507232
29 616 122 2732 SPRING 1 648HB-21H-515 1CC2GM0504511
30 411 141 3902 WASHER V 3X7X0.5 4 FW3
31 411 141 2806 WASHER SPR 3 4 SW3
32 630 000 7510 BOLT,HEX-SCT 4 M3X8
33 616 900 8789 HOLDER 1 648HB-21B-003 1CC2FC0507183
34 616 125 8922 BUSH 2 648HB-21B-007 1CC2GF1500531
35 616 122 2855 BALL BUSH 3 648HB-21H-529 1CC2GG5006890
36 616 122 2862 BALL BUSH 3 648HB-21H-530 1CC2GG5006900
37 616 125 8939 SEAL 1 648HB-21B-011 1CC2BG2000181
38 616 122 2602 SPACER 1 648HB-21B-089 1CC2FF0502330
39 616 122 2381 BOLT 1 648HB-21B-029 1CC2SA1009150
40 616 122 2664 SPRING 1 648HB-21H-507 1CC2GM0504520
41 616 125 8960 SHAFT 1 648HB-21B-031 1CC2GK0503421
42 616 122 2404 SCREW 2 648HB-21B-033 1CC2SA0502410
44 411 141 2905 WASHER SPR 4 1 SW4
45 616 125 9158 BOLT 1 648HB-21B-103 1CC2SA1009330
46 411 141 3902 WASHER V 3X7X0.5 4 FW3
47 411 141 2806 WASHER SPR 3 4 SW3
48 630 000 7510 BOLT,HEX-SCT 4 M3X8
49 616 904 6385 PROXIMITY SWITCHS 1 648HB-21H-601 1CC4V25000800
49 -1 616 906 3849 PROXIMITY SWITCHS 1 648HB-21H-602 1CC4V25000810
51 630 000 8890 SET SCREW 2 M3X6 SET
52 616 125 7277 UNION 1 648HH-21H-528 1CC2BD5001200
NOTE
6-6
9705-001
MODEL TIM-1100L
Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
53 411 141 3902 WASHER V 3X7X0.5 2 FW3
54 411 141 2806 WASHER SPR 3 2 SW3
55 630 000 7572 BOLT,HEX-SCT 2 M3X25
56 411 141 4008 WASHER V 4X9X0.8 4 FW4
57 411 141 2905 WASHER SPR 4 4 SW4
58 630 000 7688 BOLT,HEX-SCT 4 M4X30
59 411 141 4008 WASHER V 4X9X0.8 1 FW4
60 411 141 2905 WASHER SPR 4 1 SW4
61 630 000 7671 BOLT,HEX-SCT 1 M4X25
NOTE
6-6
9705-001
MODEL TIM-1100L
