TRS Advanced Maintenance
106
Issue 2, Nov 14
Objective 36: Calibrate Vision and Offset
Carry out the following Vision Calibration procedure:
- Clean the SPC Board (212277), vision alignment plate (212808) and calibration board
(187128) with isopropyl prior to use.
- Load the CALIBRA_TRS product file.
- Enter Setup Product / Tooling / Setup Tooling page.
- Select Transport Height
- Select Extend Board Stop
- Check that Board / Rail Width is set to 170mm.
- Manually adjust the board stop using the SPC board (212277).
- Align the bearings in the rail cap with the marks engraved adjacent to their slots.
SPC Board
(212277)
View on Rail Cap and SPC Board
Issue 2, Nov 14
TRS Advanced Maintenance
107
- Fit the vision alignment plate (VAP) (212808). Carefully align and locate the dowels on the
underside of the VAP with the holes in each of the rail cap bearings.
NOTE
The VAP locates in one position only. Holes are provided in the plate to aid visual location
of the bearings.
1. Care must be taken not to damage the rail cap bearings.
2. Check for flatness and position before tightening the screws.
- Tighten the 6 off captive screws to secure the VAP in place as shown above.
- Load the 187128 calibration PCB onto the VAP as shown below.
VAP
(212808)
View on Rail Cap (VAP Fitted)
DEK Part Number
Location
Locate this
corner rst.
Push this way and
press board at
Calibration Board xed in the Vision Alignment Plate
Calibration Board
(187128)
TRS Advanced Maintenance
108
Issue 2, Nov 14
- The Plate has ‘sprung’ edges to the top and right side. Push 187128 into the top right side
corner and maintain a diagonal pressure while pressing the board flat to the VAP.
NOTE
Make sure DEK Part Number is located to front right.
- In Maintenance set the TRS Tooling to Not Fitted.
- Select Screen.
- Manually feed the SPC board (212277) onto the centre rails during “Auto Board”.
- Carry out a standard Vision Calibration procedure: (Ref. Technical Reference Manual)
• Locate 4 screen fiducials
• Learn board fiducials ( Score 850+)
• Learn screen fiducials (Score 850+)
• Automatic 25 fiducials check
• Automatic 50 fiducials check
• Configuration data save.
Carry out the following Offset Calibration procedure.
- Clean the SPC Board (212277), vision alignment plate (212808) and small calibration
board (187128) with isopropyl prior to use.
- Select Maintenance / Calibration / Offset.
- Select Change Screen and remove the calibration screen.
- Replace the calibration board with the fiducials downward (copper side up) into the
calibration platen.

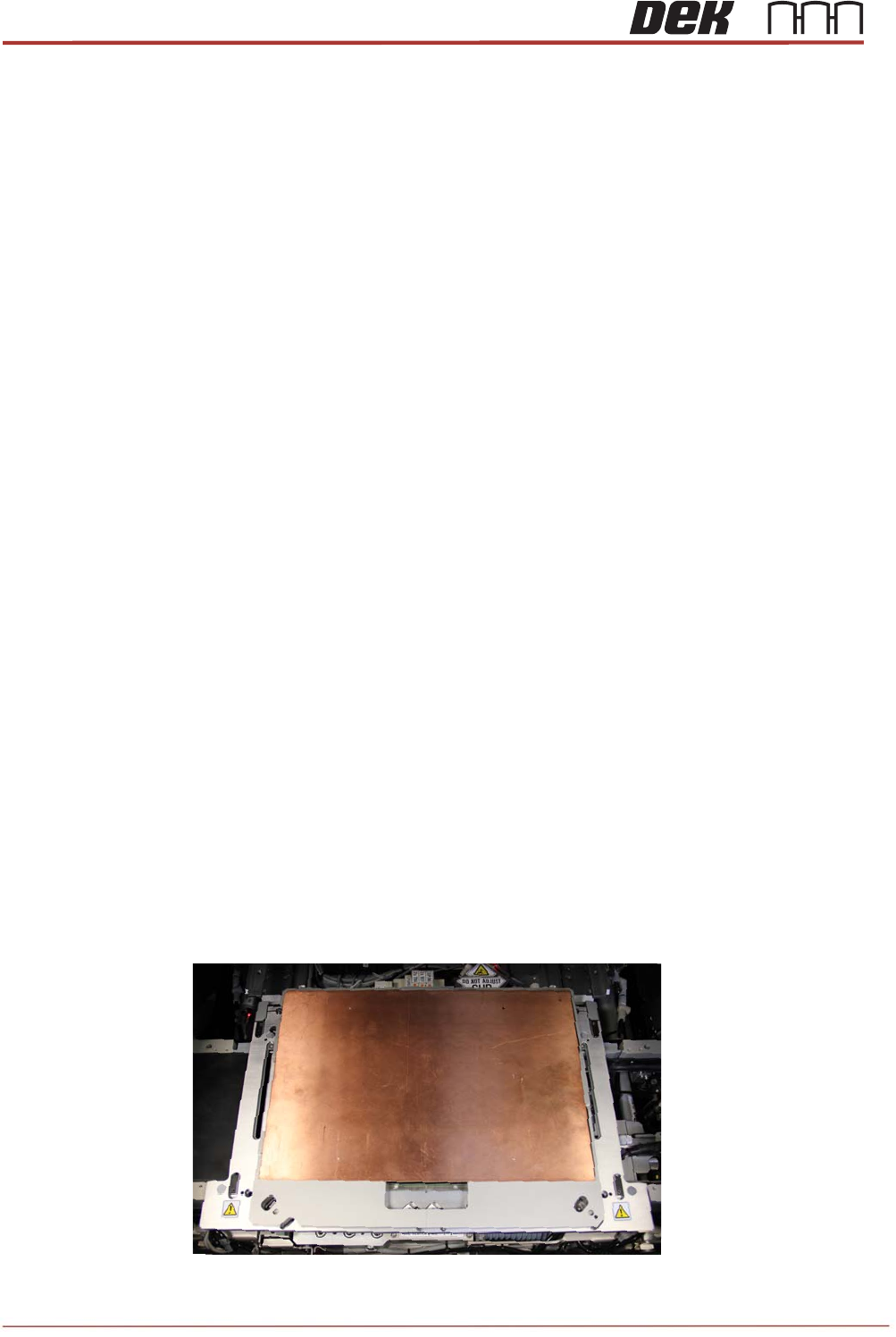

Calibration Board xed in the Vision Alignment Plate (Copper side up)
