Issue 2, Nov 14 TRS Advanced Maintenance 135 Objective 46: Transportation of the TRS Unit Transit Screws and Cable Ties Removal: • Carefully remove 2 red cable ties from t he TRS arm assembly while pushing the arms down.…
TRS Advanced Maintenance
134
Issue 2, Nov 14
Objective 45: Remove and refit left side safety cover.
The left hand safety cover assembly is fitted to the side panels. With new design “safety gate
assembly” protects personnel from inadvertent access to the board entry/exit ports. (For
more detail see MPU 602351*1)
Issue 2, Nov 14
TRS Advanced Maintenance
135
Objective 46: Transportation of the TRS Unit

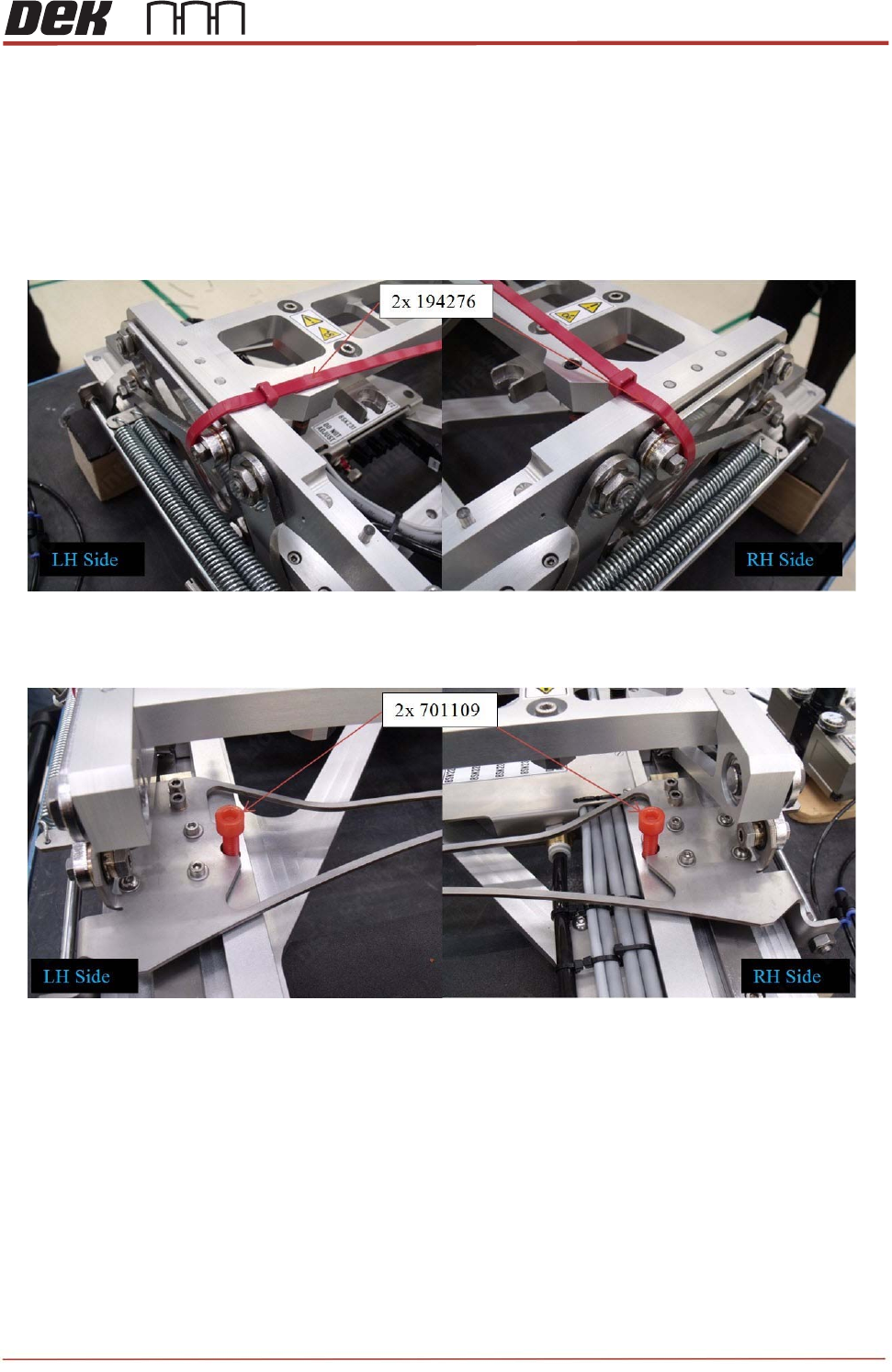

Transit Screws and Cable Ties Removal:
• Carefully remove 2 red cable ties from the TRS arm assembly while pushing the arms
down.
• Carefully remove 2 red transit screws from the cylinder brace beam.
TRS Advanced Maintenance
136
Issue 2, Nov 14
Objective 47: Converting Machine to Round Belt Option (Strip Handling)
The “strip” process uses a transport rail system that employs round belt.
The adapted TRP has a product specific compliant plate fitted that matches the feature on
the static surround. On the rear rail, a blanking plate is fitted in front of the snugger plate
mechanism. The tooling used is a single block.
Z-Lock is only used for printing individual substrate held in handler trays: when strips are
printed, most of the mechanism is removed.
