Issue 2, Nov 14 TRS Advanced Maintenance 33 Fitting the Rail Cap to the Printer 1. Ensure Rising Table is at the print height. 2. Fit the rail cap onto the rails with locati ng the four locating plates into position and …

TRS Advanced Maintenance

Issue 2, Nov 14

7. Undo 6 off M5x16 cap head screws from the rail cap assembly to release the guide rods.

NOTE Do not remove the screws from the rail cap assembly (clamping block).

WARNING

Never remove the guide rods from the bearing assembly in any circumstance.

8. Remove the current rail cap assembly from the rails by removing 8 off screws as shown

below.

M5x16 Cap

Head screws

Viewed from the Rear of the Machine

M4x8 Countersunk

Screws

M4x8 Countersunk

Screws

M4x25 Pan Head Screws

(4 Positions)

M4x16 Pan

Head Screws

M4x16 Pan

Head Screws

View on Rail Cap Assembly

Issue 2, Nov 14

TRS Advanced Maintenance

Fitting the Rail Cap to the Printer

1. Ensure Rising Table is at the print height.

2. Fit the rail cap onto the rails with locating the four locating plates into position and

engage the clamping blocks with the alignment bearing guide rods.

NOTE

Engage the rail width home sensor vane (on the rear rail) into the sensor (on the rail cap)

without damaging it.

3. Connect the short snugger pipe (on the right side of the rail cap) in to the single inlet of

the “Y” fitting behind the rear rail, as shown below.

4. Connect the other snugger pipe (on the left side of the rail cap) in to the one of the outlet

on the “Y” fitting, as shown above.

NOTE

Make sure they are not stretched or creased.

TRS Advanced Maintenance

Issue 2, Nov 14

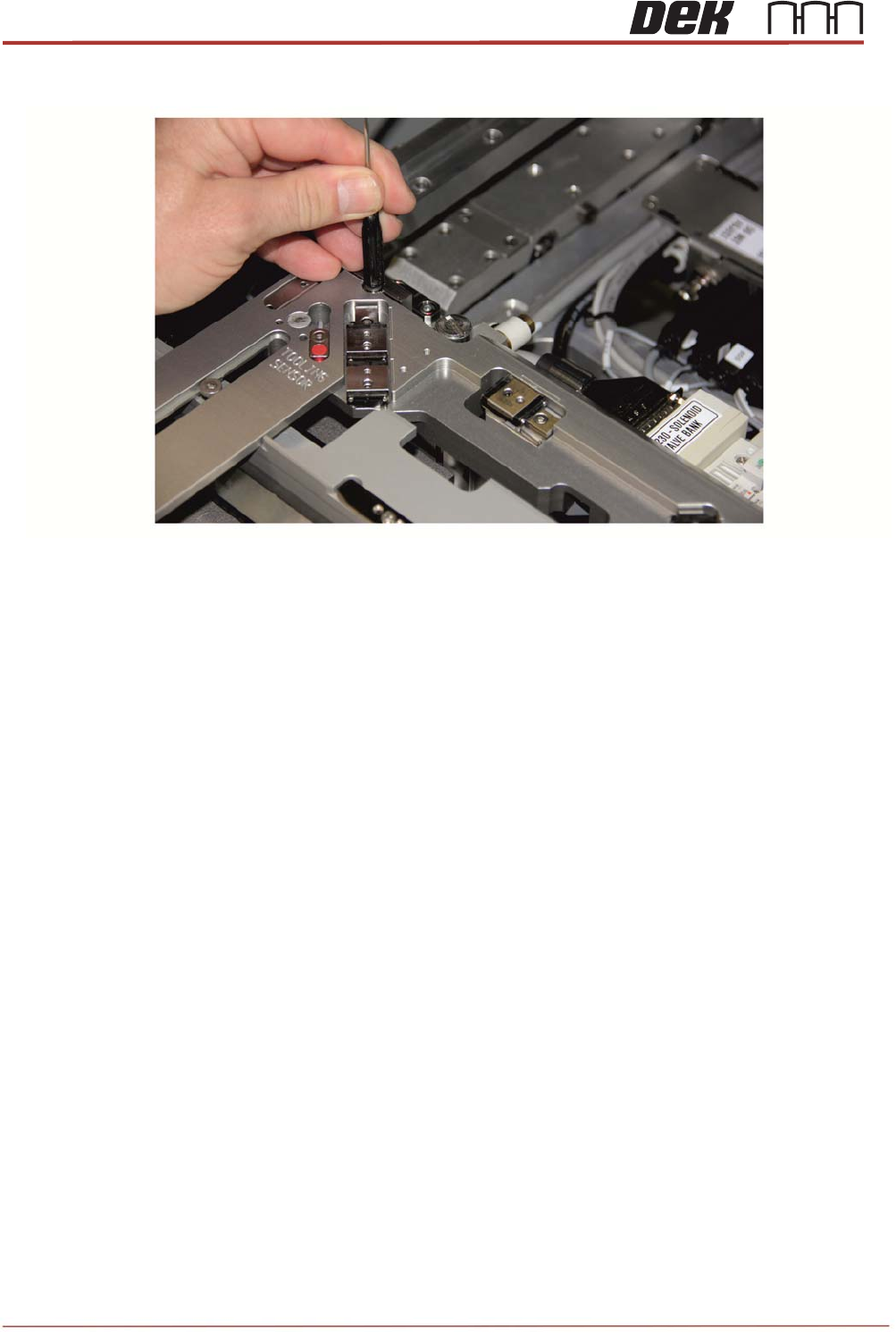

5. Gently tap down each guide rods until it bottoms out do not go any further.
