TRS Advanced Maintenance
68
Issue 2, Nov 14

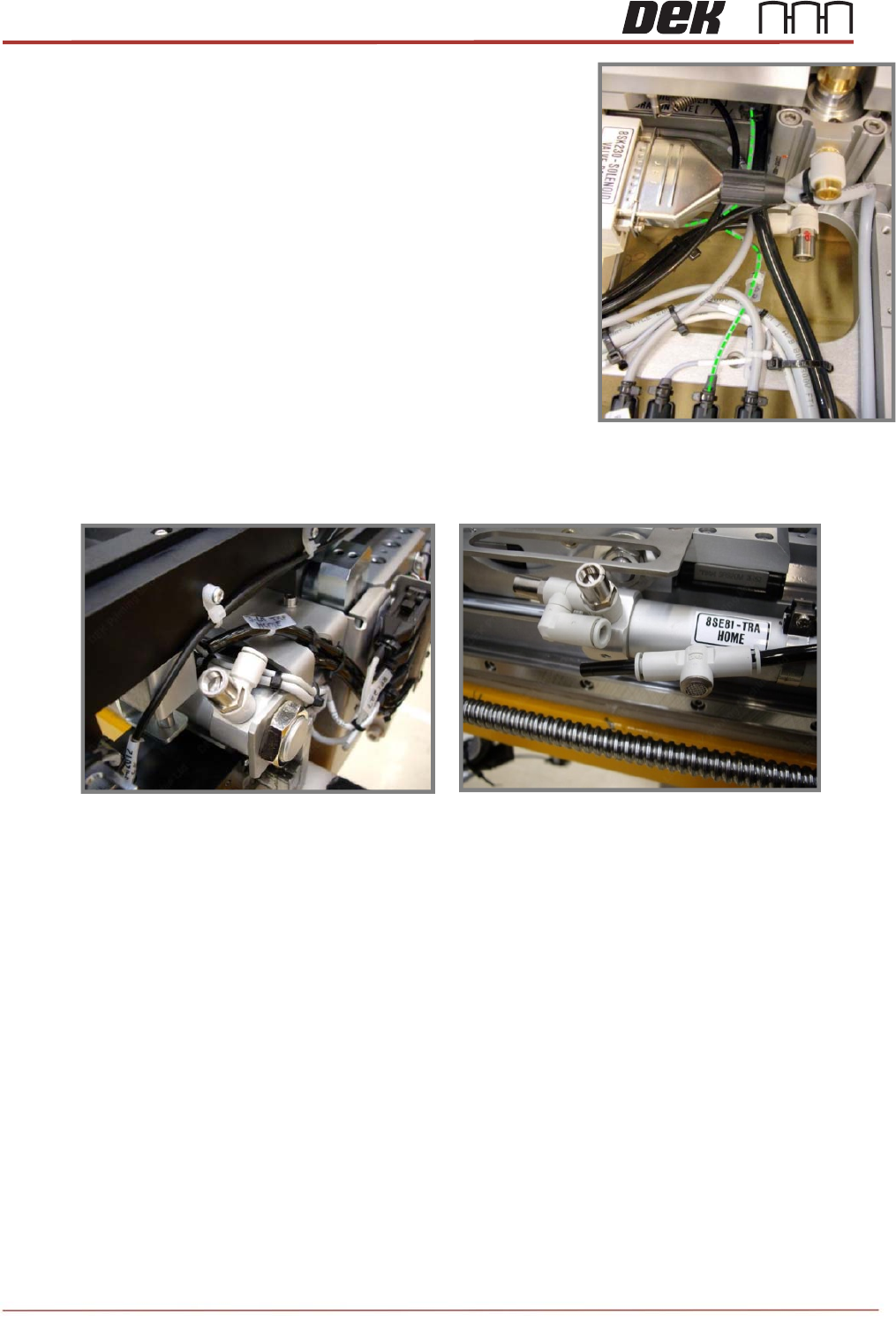

89. Connect the loom marked 8PL224 to the break out
socket plate on the rear of the MEK base.
90. Ensure that the cable is free to move up and down with
the rail cap, any excess can be allowed to loop into the
table casting round the pneumatic pipe.
91. Re-fit the pneumatic pipes to both ends of the LH TRA Sine Cylinder.
Issue 2, Nov 14
TRS Advanced Maintenance
69

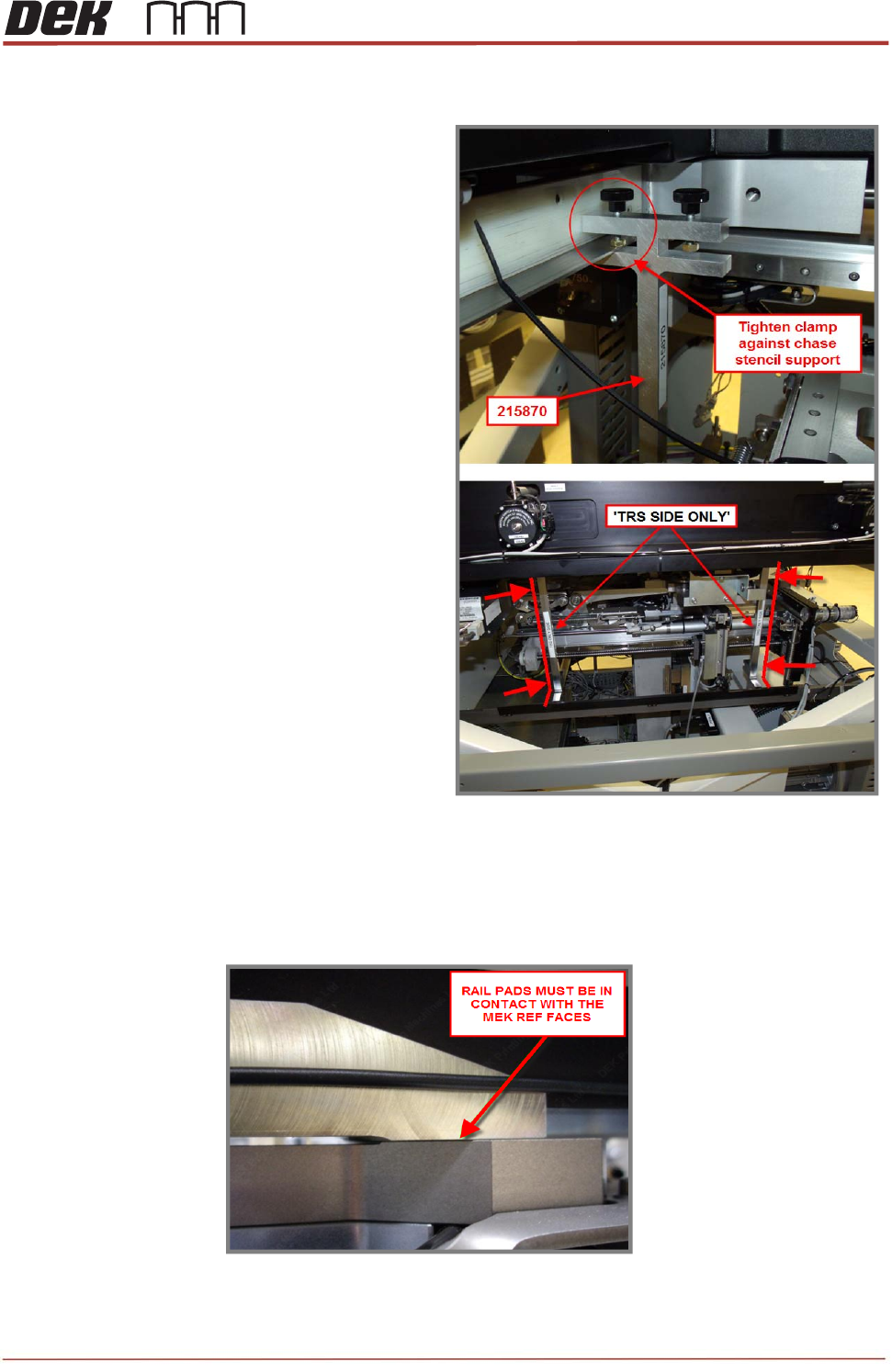

Clatter Bar Height Setting;
Clatter bar height setting jig sets the height
from clatter bar to underneath the stencil
mount.
1. Check the height between clatter bar
and underneath the stencil mount.
2. Go to Diagnostics and home the rising
table.
3. Flag the active surround plate present
sensor on the rail cap (top LH) with a
metal feeler gauge.
4. Exit the rising table module*
5. Enter the rising table motor*
*Note
The last two actions are required to
reset the system flag for the active
surround present sensor.
6. Drive the rising table to vision height.
NOTE
Check that the front and rear rail pads are in contact with MEK base.
TRS Advanced Maintenance
70
Issue 2, Nov 14
7. Loosen (do not remove) the 4 off fixing screws on the transport rail spring posts (as
shown)
8. With an engineer’s level placed in the center of the clatter bar, adjust one end of the
clatter bar in an upward direction until level.
9. Drive the rising table to print height.
10. Place a 1.0mm setting (feeler) gauge under each of the transport rail spring posts.
Note
The slots in the gauges are positioned under the spring posts.
215713, Note small slots in
the Gauges are concealed
by the Rail Spring Posts
