Installation Manual, Station Software Version 603.01 Issue 11/2006 Fig. 4-6: TouchWare Properties – Multiple Monitors tab (example for Monitor 2) → Click the number of the monitor you wish to calibrate. → Open the Calibr…
Installation Manual, Station Software Version 603.01 Issue 11/2006
26 of 62
Fig. 4-4: "Multiple Monitor Layout" dialog box
→ Click the Mirrored Monitors button.
→ Confirm your entry with OK.
The touchscreens are now mapped and the "Multiple Monitors" tab is displayed again.
Fig. 4-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1)
Installation Manual, Station Software Version 603.01 Issue 11/2006
Fig. 4-6: TouchWare Properties – Multiple Monitors tab (example for Monitor 2)
→ Click the number of the monitor you wish to calibrate.
→ Open the Calibrate tab.
27 of 62
Installation Manual, Station Software Version 603.01 Issue 11/2006

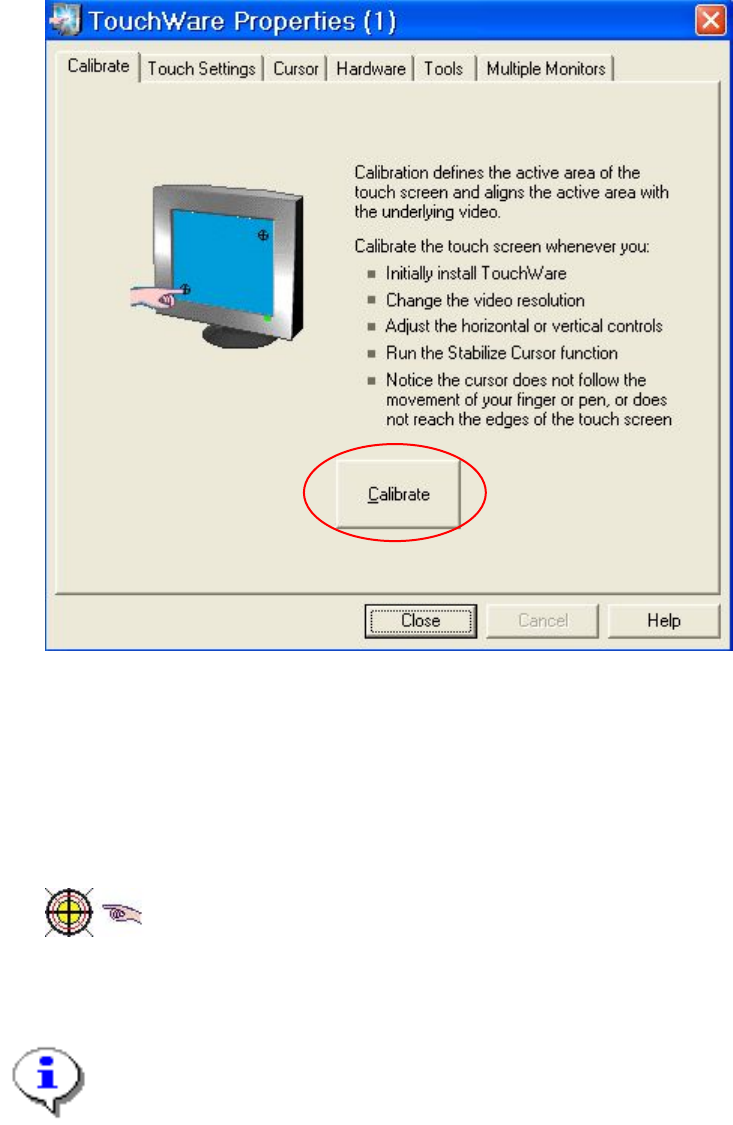

Fig. 4-7: TouchWare Properties – Calibrate tab (example for Monitor 1)
→ Click the Calibrate button. An icon representing the calibration is shown on screen. An icon
representing a hand guides you through the calibration steps by pointing to the calibration icon you
must touch.
Fig. 4-8: Calibration marks
Notes:
Touch the calibration icon within 20 seconds, otherwise calibration is automatically
canceled.
Make sure that you are standing directly in front of the monitor.
Carry out calibration in the position (standing or seated) you normally adopt when working
at this screen.
Touch the calibration icon firmly and accurately with your fingertip.
Make sure that you to not inadvertently touch the screen with any other finger.
→ Touch the calibration icon with your finger and make sure that the yellow area is completely covered
by your finger. The message "Hold" appears around the hand icon.
28 of 62
