Installation Manual, Station Software Version 603.01 Issue 11/2006 → Open the Calibrate tab. 32 of 62 Fig. 4-13: PenMount Control Panel – Calibrate tab → Click the Standard Calibration button. The Calibrate dialog box op…
Installation Manual, Station Software Version 603.01 Issue 11/2006
→ Check the Multiple Monitor Support box.
→ Click the Map Touch Screens button.
The “Mapping” dialog box opens.
31 of 62

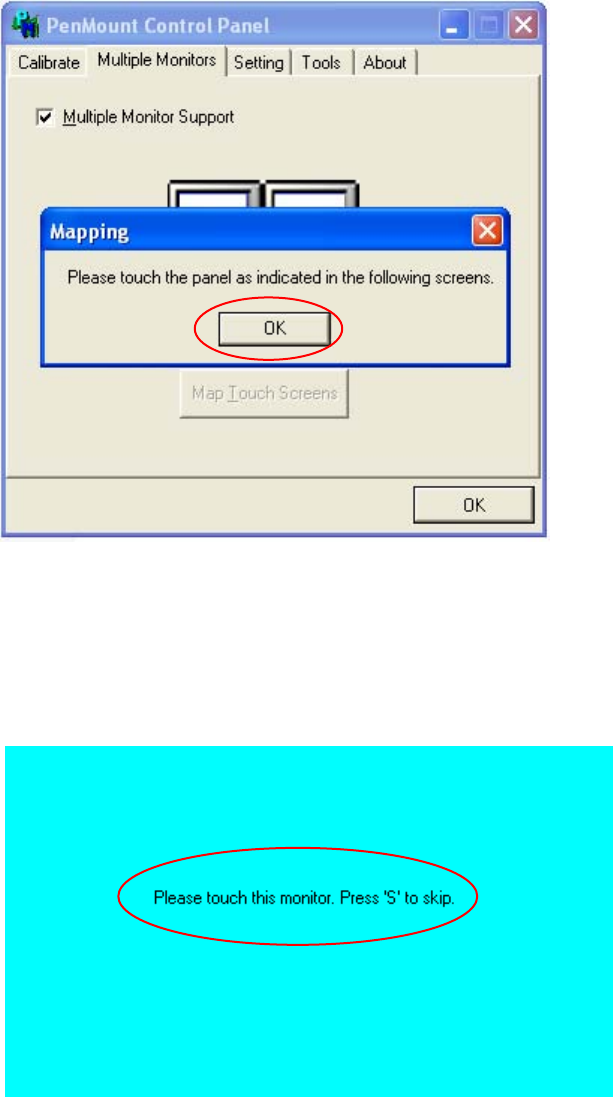

Fig. 4-11: PenMount Control Panel – "Mapping" dialog box
→ Acknowledge the “Mapping” dialog box by clicking on OK.
→ Touch the monitor showing Please touch this monitor with your finger.
Fig. 4-12: Mapping the touchscreens
The touchscreens are now mapped and the PenMount Control Panel is displayed again.
Installation Manual, Station Software Version 603.01 Issue 11/2006
→ Open the Calibrate tab.
32 of 62

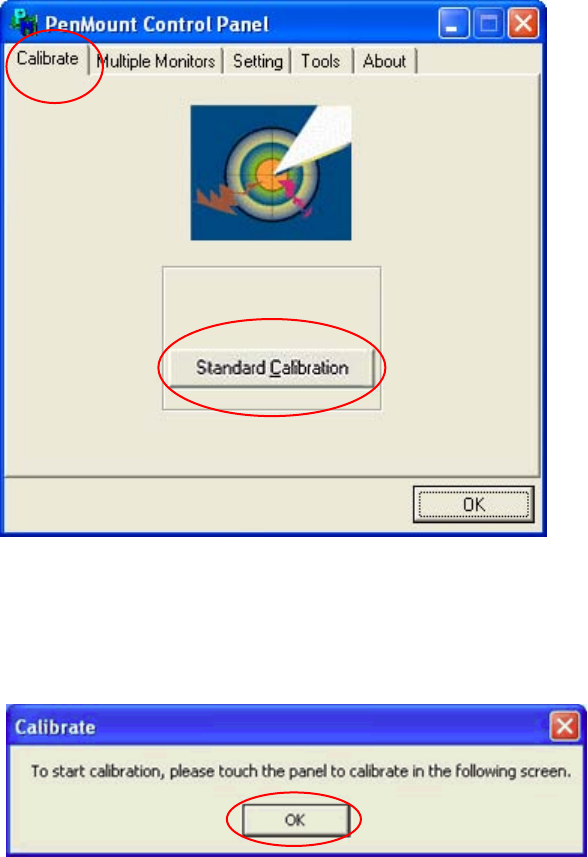

Fig. 4-13: PenMount Control Panel – Calibrate tab
→ Click the Standard Calibration button. The Calibrate dialog box opens.
Fig. 4-14: “Calibrate” dialog box
→ Acknowledge the dialog box by clicking on OK.
Installation Manual, Station Software Version 603.01 Issue 11/2006
→ Touch the monitor you wish to calibrate with the pen supplied. You are now prompted to Touch the
red square.
Fig. 4-15: Calibration marks
Notes:
Touch the calibration marks within 20 seconds, otherwise calibration is automatically
canceled.
Make sure that you are standing directly in front of the monitor.
Carry out calibration in the position (standing or seated) you normally adopt when working
at this screen.
Touch the calibration icon firmly and accurately with the pen.
Make sure that you to not inadvertently touch the screen with anything else.
→ Touch the red calibration marks with the pen in the numbered sequence shown.
→ Carry out the steps described above for the second screen as well.
→ Click OK in the PenMount Control Panel to close the program.
