→ Touch the monitor you wish to calibrate with the pen supplied. You are now prompted to Touch the
red square.

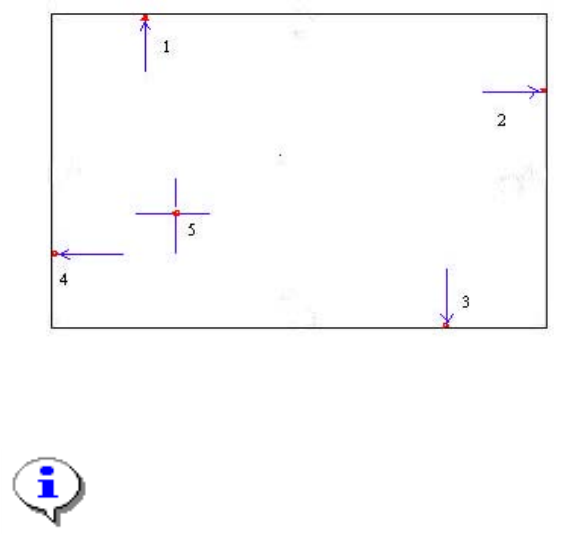

Fig. 4-15: Calibration marks
Notes:
Touch the calibration marks within 20 seconds, otherwise calibration is automatically
canceled.
Make sure that you are standing directly in front of the monitor.
Carry out calibration in the position (standing or seated) you normally adopt when working
at this screen.
Touch the calibration icon firmly and accurately with the pen.
Make sure that you to not inadvertently touch the screen with anything else.
→ Touch the red calibration marks with the pen in the numbered sequence shown.
→ Carry out the steps described above for the second screen as well.
→ Click OK in the PenMount Control Panel to close the program.
33 of 62
Installation Manual, Station Software Version 603.01 Issue 11/2006
34 of 62
4.4.5 Definitions
4.4.5.1 Initial installation
The first time the station software is installed on a SIPLACE placement machine is known as the initial
installation.
4.4.5.2 Update
If an initial installation has already been performed and a more recent release version of the station
software is to be loaded, then this procedure is referred to as an update.
The release version is identified by the last two digits of the complete version number.
Example:
603.01 = The number 603 identifies the software functions
The number 01 is the release version 1.
4.4.5.3 Upgrade
The range of functions of the software is indicated by the three digit number contained within the complete
version number.
The installation of a software version with a version number higher than the existing, installed version is
known as an upgrade procedure.
Example:
Changing software from 602.01 to 603.01 = Upgrade
Installation Manual, Station Software Version 603.01 Issue 11/2006
4.5 Installing the SIPLACE software (Station Software 603.01)
Notes:
The installation requires approx. 30 minutes.
If a predecessor version of the station software is already installed on the station computer, it
need not be uninstalled before installing the new version; it can instead be removed during the
installation procedure (see section
4.5.1).
4.5.1 Installation procedure
→ Switch on the SIPLACE placement machine.
→ Log in to the station computer as Administrator.
(Keep the Shift key pressed as soon as the Windows XP logo appears)
→ Insert the installation DVD in the external DVD drive. The DVD is read automatically.
Note:
If autostart has been disabled for the DVD drive, you must start the installation manually
from the Windows Explorer.
→ Open the Explorer and start "setup.exe" under drive E by double clicking it.
The "SIPLACE Choice Center" dialog box is opened.
Fig. 4-16: "SIPLACE Choice Center" dialog box
