8.3 "ACV Check Status" Tab Sheet
This tab sheet is used to monitor the ACV check status and the read
data, and set the parameters for manual checking.
• Sheet Layout
When the "ACV Check Status" tab is pressed in the "RECOVERY"
window (submenu), the following tab sheet appears inside the win-
dow.

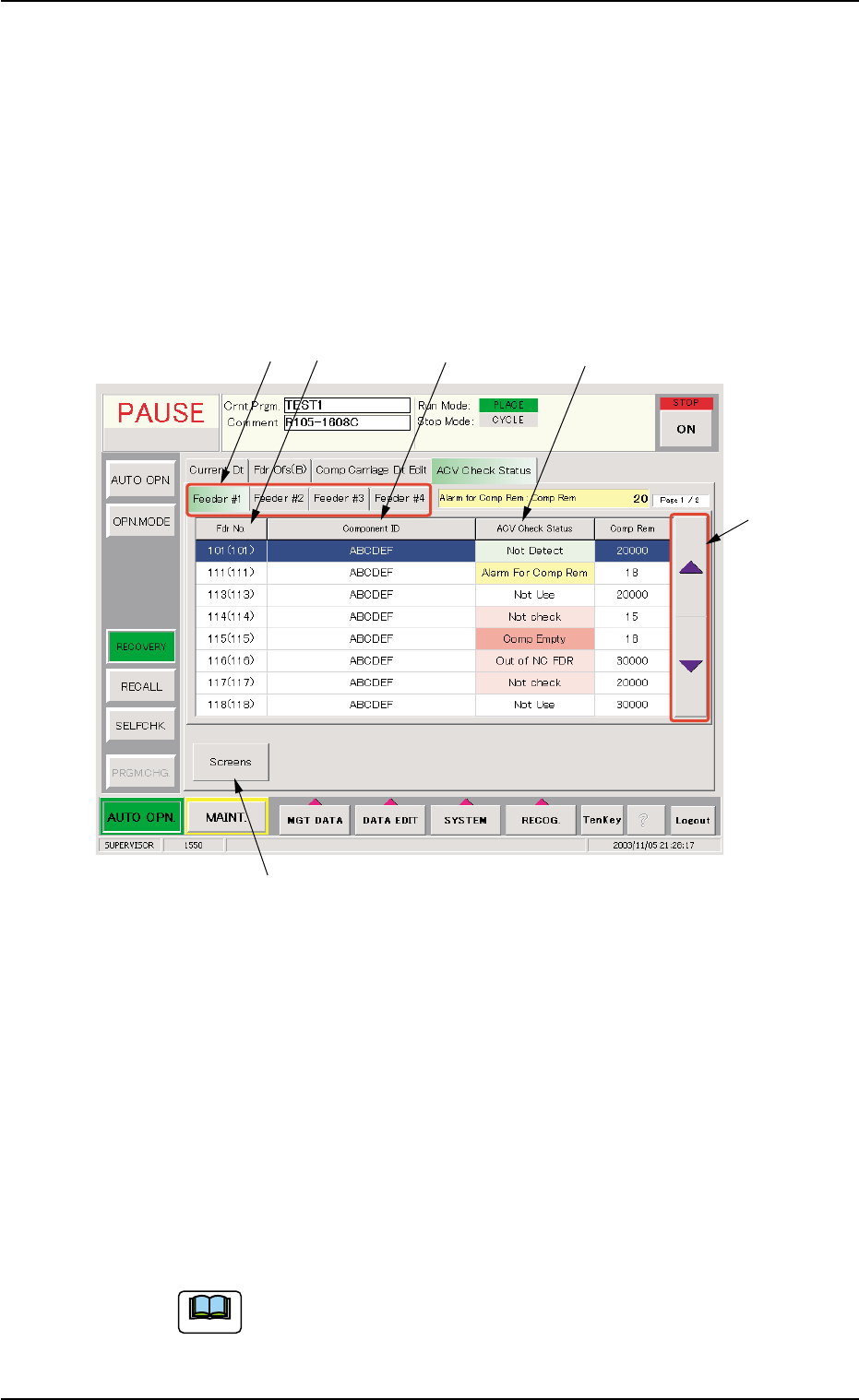

Fig. 6
*1 "Feeder #1", "Feeder #2", "Feeder #3", and "Feeder #4" Tabs
Each tab represents the corresponding feeder carriage.
*2 Fdr. No. (Actual Fdr No.)
Displayed are the feeder Nos. used for the current program and the
actual feeder Nos. in ( ).
*3 Component ID
Displayed are the component IDs of the placement feeder location
data related to the feeder No.
The displayed parameters are not those read from the Tag
memory.
8.3 "ACV Check Status" Tab Sheet
*1 *2 *3 *4
*5
*6
Note
0310-001 15 AIP01EGP
*4 ACV Check Status
Displayed is the ACV check status.
Table 5
Items Status
Not check The ACV checking is not being made.
Finished Check The component ID identical to the information in the ACV line server
was detected during the ACV checking.
Comp Empty A component shortage error was detected during the ACV checking.
It is required to register the component.
Out of NC FDR The component ID nonidentical to the information in the ACV line server
was detected during the ACV checking.
Not Register A feeder provided with components not registered in the ACV line server
was detected.
Not Use Not used in the pattern program.
*5 [ ] and [ ] Buttons
The up or the down arrow can be pressed to scroll up or down the
tab sheet to expose hidden items.
*6 [Screens] Button
When this button is pressed, another tab sheet appears.
8.3 "ACV Check Status" Tab Sheet
0310-001 16 AIP01EGP
Note

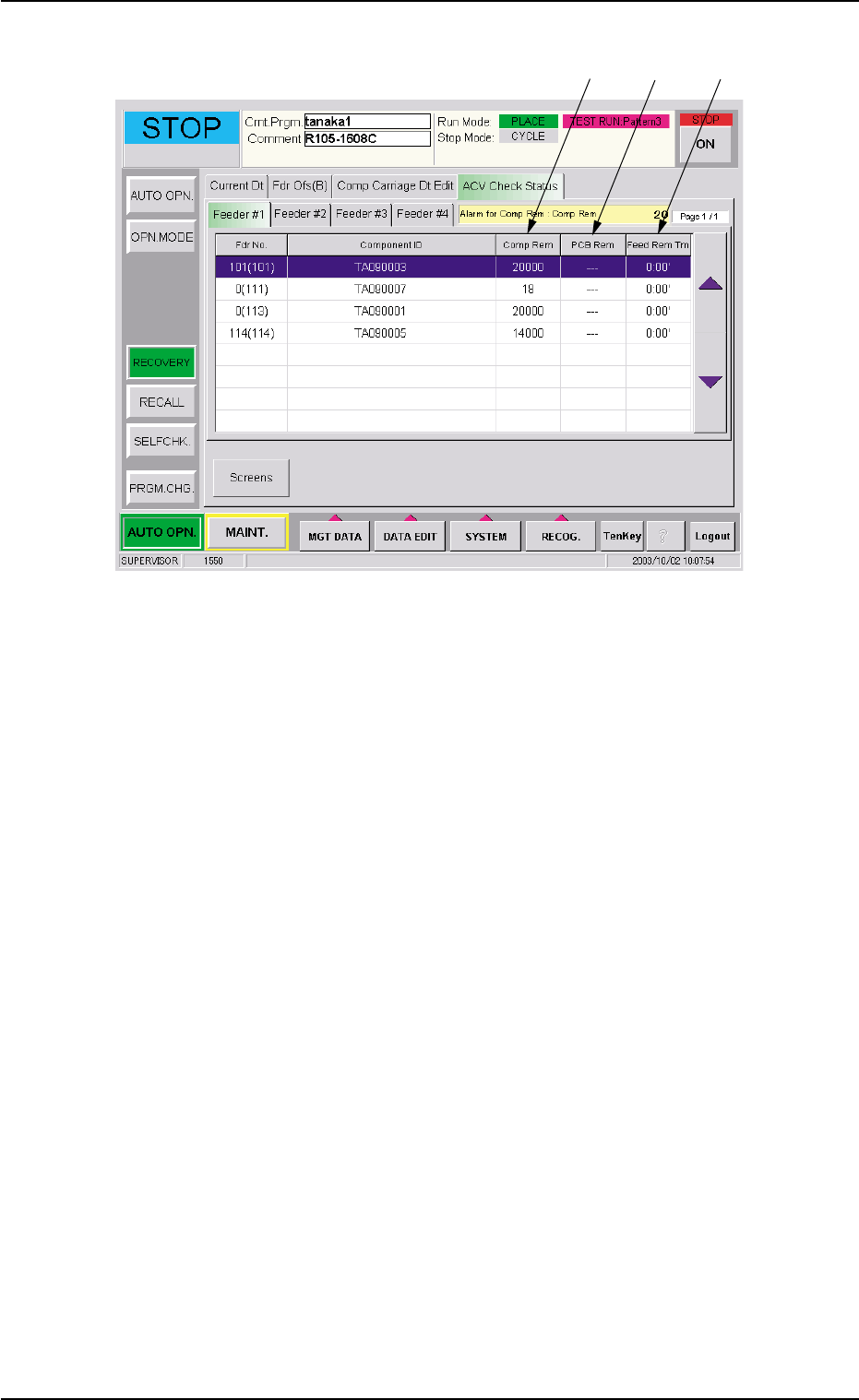

Fig. 7
*7 Comp Rem
Displayed is the component remainder data that was read from the
Tag memory.
When the [Enable] button is selected in the "Record Component
Remainder" group box, one piece of component is subtracted from
the remainder data every time a component is picked up during au-
tomatic operation.
When the [Comp Remainder] button is selected in the "Alarm for
Component Remainder" group box and the value under "Comp Rem"
is smaller than the specified one, the background color of the nu-
merical value turns yellow.
When the machine is powered or a program change operation is
performed, "---" appears.
8.3 "ACV Check Status" Tab Sheet
*7
*8
*9
