9. Supplement
9.1 Details of ACV Antenna Section

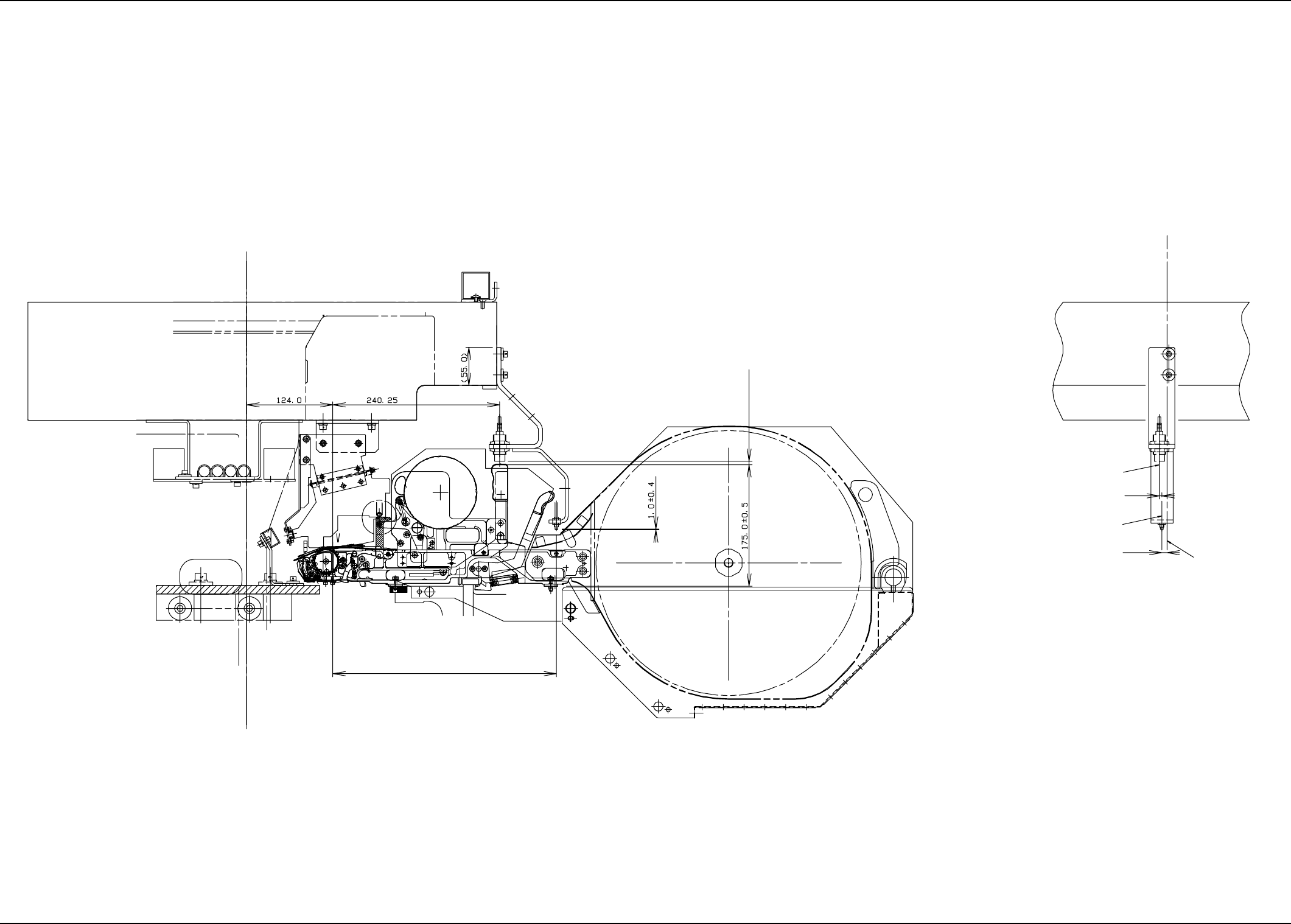

9.1.1 Details of Antenna Section (TCM-X100/-X200/-X300)
0310-001 -(M696AL--A0003) 19 AIP01EGP
322.0 from the pickup position
Rotary Turret Cente
r
Pickup Center
7.5
3.5
Tag Memory Center
Clearance from
Master Unit
5.0 to 5.5
9. Supplement

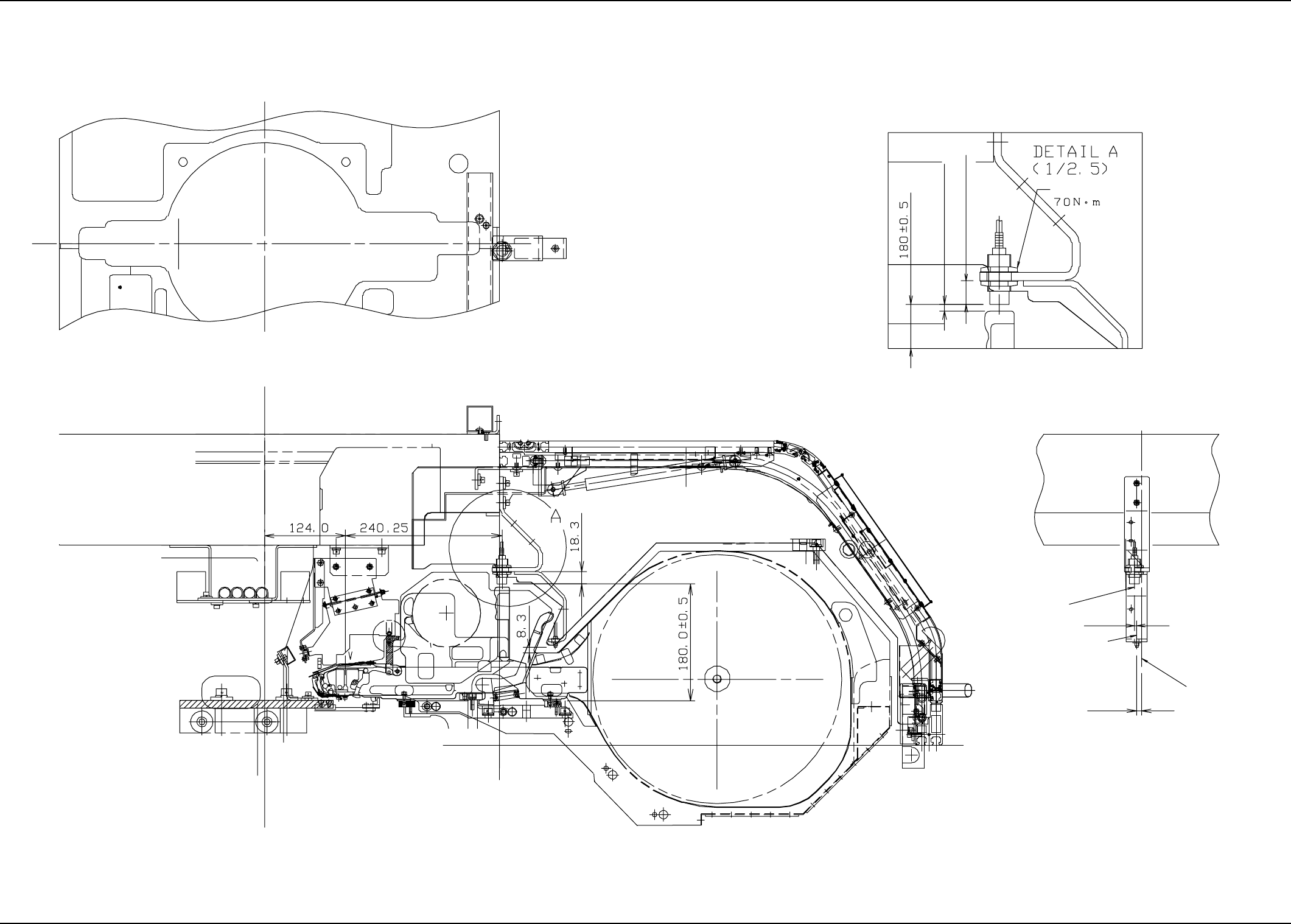

9.1.2 Details of Antenna Section (TCM-X110/-X210/-X300)
9.1 Details of ACV Antenna Section
Rotary Turret Cente
r
From the feeder reference
Specified Clearance (5.0)
Referential Dimension for
Assembly (18.3)
Nut Tightening Torque
(Referential Dimension
for Assembly)
Feeder Installation
Reference
Tag Memory Center
Pickup Center
7.5
3.5
0310-001 -(M801AL--A0001) 20 AIP01EGP
9.2 Parts Location

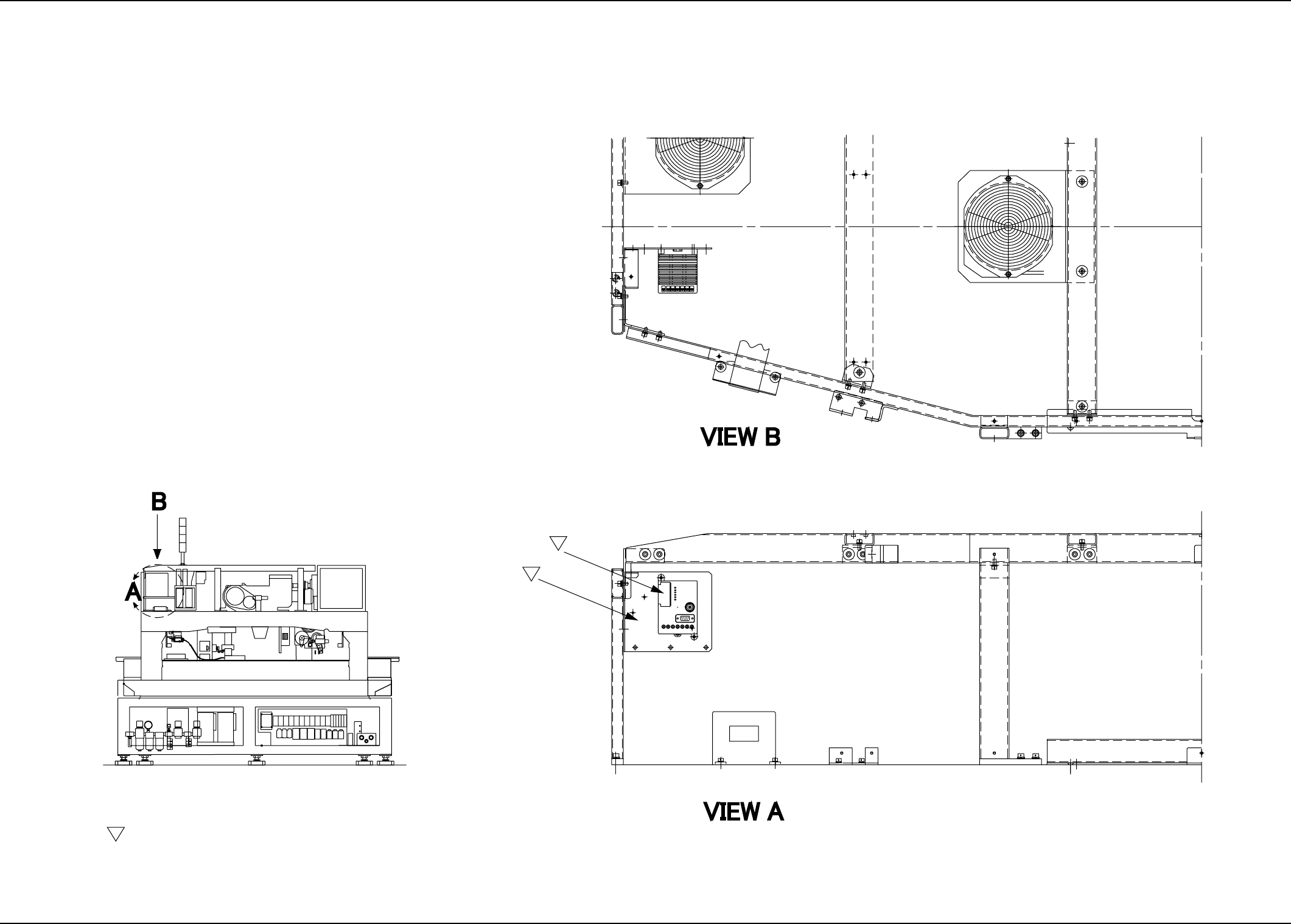

9.2.1 Layout of ID Controller (TCM-X100/-X200/-X300)
9.2 Parts Location
S
S
S
The -marked areas are specially specified.
Rear Side of Machine
0310-001 A(M696YRM-A1002) 21 AIP01EGP
