3 Test Equipment Adjust men t Ins tru ct ion s SIPLA CE H S-50 3.5 SIPLACE Compressed A ir Tester Edition 12/00 62 6,3/$&(&RPSUHVVHG$LU7 HVWHU $SSOLFDWLRQ The compr essed ai r tester i s used fo r the…
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 12/00 3.4 Belt Tension Tester
61
%HOW7HQVLRQ7HVWHU
$SSOLFDWLRQ

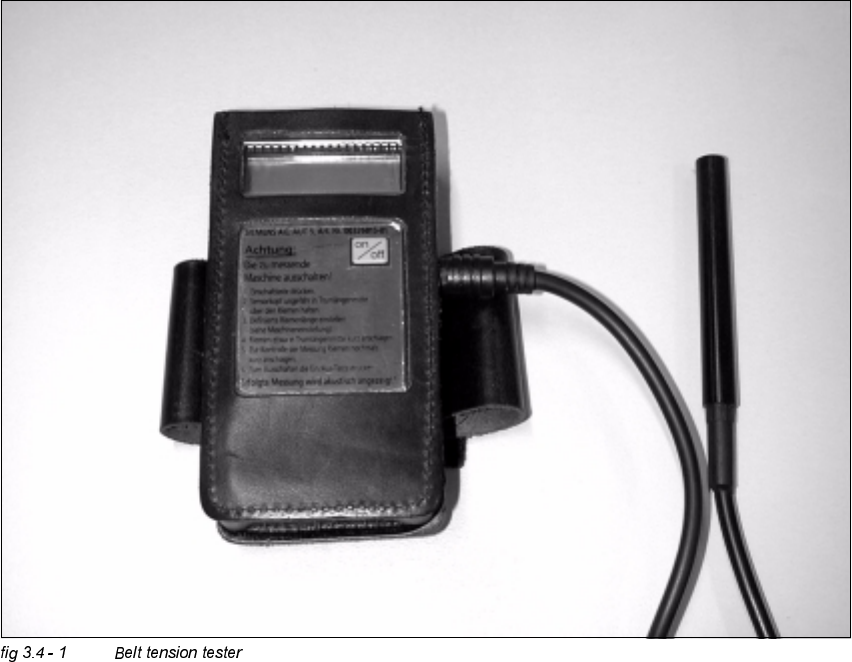

The belt tension tester is used for the adjustments of belt tensions of the toothed belts on the
placement system.
3 Test Equipment Adjustment Instructions SIPLACE HS-50
3.5 SIPLACE Compressed Air Tester Edition 12/00
62
6,3/$&(&RPSUHVVHG$LU7HVWHU
$SSOLFDWLRQ

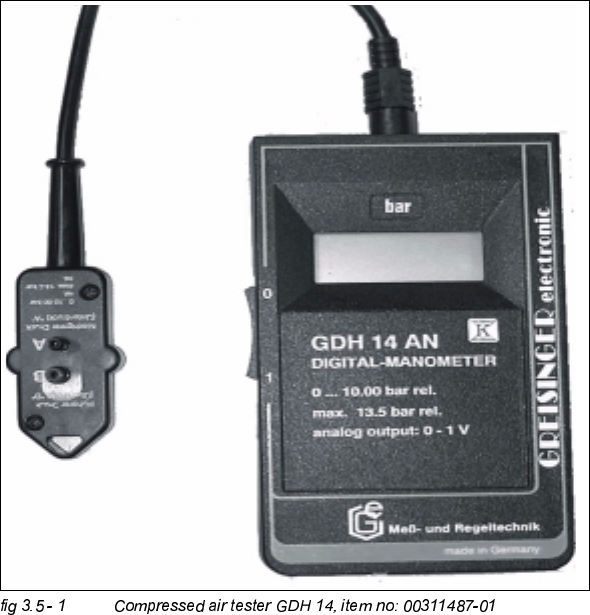

The compressed air tester is used for the adjustment of the blast air on the C&P head.
Compressed air tester, including a cable for SIPLACE 80 S15 / F3: Item no: 00313523-01
Compressed air tester, without cable, for all other SIPLACE systems: Item no: 344807-01
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 12/00 3.6 Feeder Location Test Unit
63
)HHGHU/RFDWLRQ7HVW8QLW
$SSOLFDWLRQ
The feeder location test unit is used to check the connections of the feeders on the communication
unit of the component table.
