7 Collect & Place Head DLM1 Adjustment Instructions SIPLACE HS-50
7.5 Control Edition 12/00
164
&RQWURO
&RQWURORI3*DLQZLWK/LJKW%DUULHU0RGH
6,7(67
Å Select "C&P Heads" ==> "Axis functions" ==> "Select Z-axis" ==> "Adjust P-gain"
==> "Edit and accept values: Positioning mode downward = with light barrier on the bottom;
positioning mode upward = absolute".
Å If necessary, press the START button.

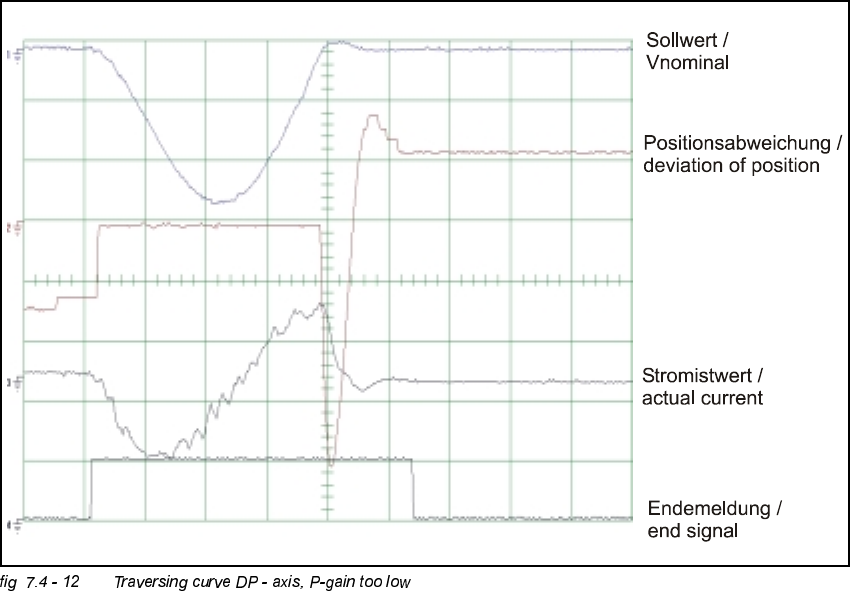

2VFLOORVFRSH6HWWLQJV
.
Z- axis downward
&KDQQHO 6LJQDO &RXSOLQJ <'HIOHFWLRQ 7ULJJHU ;'HIOHFWLRQ
CH1 Vnominal DC 1.0 V/ Div
CH 1
negative
10% pre
5 ms/ Div
CH2 deviat. of pos. DC 1.0 V/ Div
CH3 actual value DC 2.0 V/ Div
Ch4 end signal DC 5.0 V/ Div
Sollwert /
Vnominal
Positionsabweichung /
deviation of position
Stromistwert /
actual current
Endemeldung /
end signal
