3 Test Equipment Adjust men t Ins tru ct ion s SIPLA CE H S-50 3.3 Track S ignal Tester S20 / S23 / F4 / F5 Edition 12/00 60 7 UDFN6LJQDO7 HVWHU66)) $SSOLFDWLRQ The track signal tester i s used…
Adjustment Instructions SIPLACE HS-50 3 Test Equipment

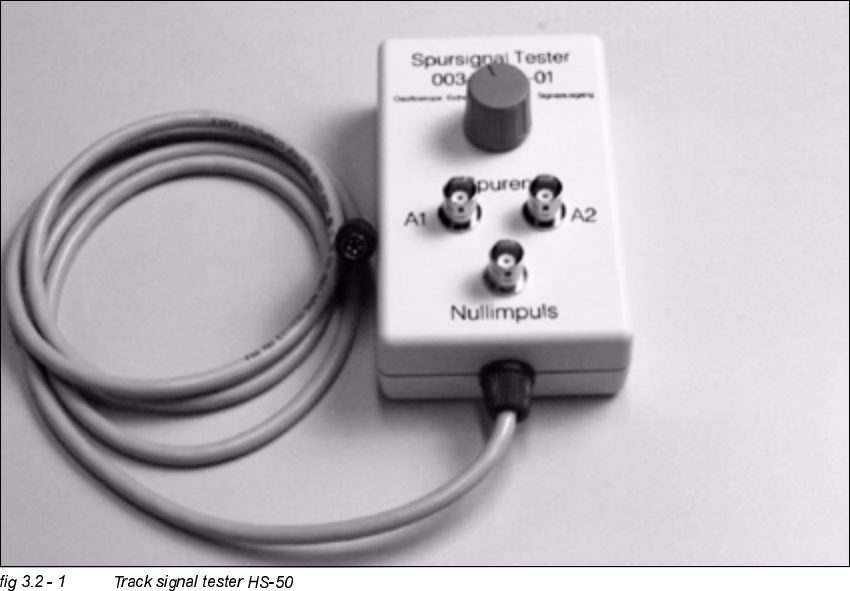

Edition 12/00 3.2 Track Signal Tester HS-50
59
7UDFN6LJQDO7HVWHU+6
$SSOLFDWLRQ
Testing of track signals of incremental measuring systems of gantry axes on HS-50 machines.
3 Test Equipment Adjustment Instructions SIPLACE HS-50

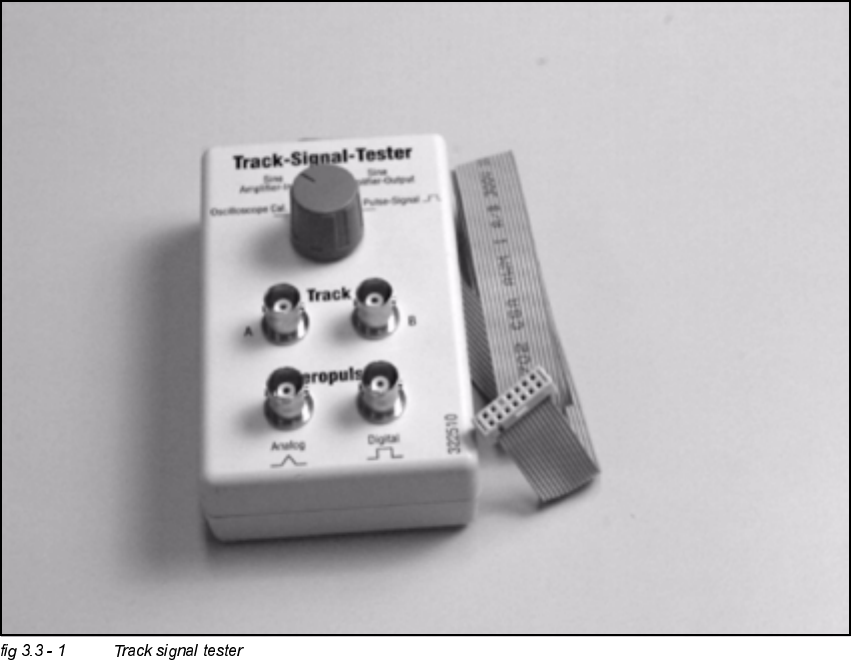

3.3 Track Signal Tester S20 / S23 / F4 / F5 Edition 12/00
60
7UDFN6LJQDO7HVWHU66))
$SSOLFDWLRQ
The track signal tester is used to test the track signals of the incremental measuring systems of
gantry axes on S20/ S23/ F4/ F5 machines.
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 12/00 3.4 Belt Tension Tester
61
%HOW7HQVLRQ7HVWHU
$SSOLFDWLRQ
The belt tension tester is used for the adjustments of belt tensions of the toothed belts on the
placement system.
