Adjus t ment In str uc tio ns SI PLA CE HS- 50 3 Test Equipment Edition 12/00 3.6 Feeder Location Test Unit 63 )HH GHU /RFDW LR Q7 HVW 8Q LW $SSOLFDWLRQ The feede r location t est uni t is used to check the c…
3 Test Equipment Adjustment Instructions SIPLACE HS-50
3.5 SIPLACE Compressed Air Tester Edition 12/00
62
6,3/$&(&RPSUHVVHG$LU7HVWHU
$SSOLFDWLRQ
The compressed air tester is used for the adjustment of the blast air on the C&P head.
Compressed air tester, including a cable for SIPLACE 80 S15 / F3: Item no: 00313523-01
Compressed air tester, without cable, for all other SIPLACE systems: Item no: 344807-01
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 12/00 3.6 Feeder Location Test Unit
63
)HHGHU/RFDWLRQ7HVW8QLW
$SSOLFDWLRQ
The feeder location test unit is used to check the connections of the feeders on the communication
unit of the component table.
3 Test Equipment Adjustment Instructions SIPLACE HS-50
3.7 Power Supply for Mounting of the Star. Edition 12/00
64
3RZHU6XSSO\IRU0RXQWLQJRIWKH6WDU
$SSOLFDWLRQ

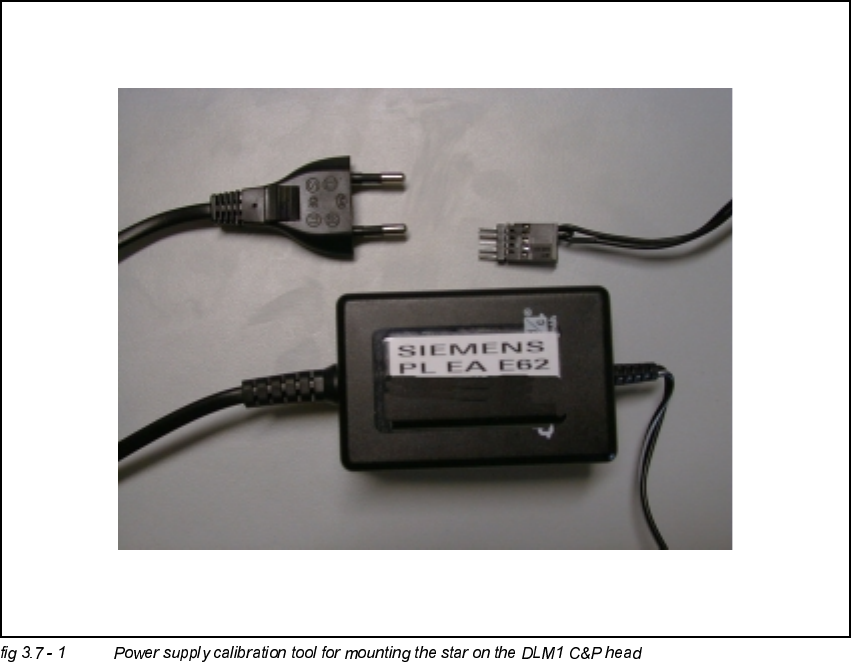

The power supply is used as a calibration tool for mounting the star.
