Adjustment Inst ructions SIPLACE HS-50 5 Single an d Dual PCB Conveyor Edition 12/00 5.4 Adjustment of the Proximity Switches PCB Stopper 93 $GMXVWPHQWRI WKH3UR[LPLW\ 6Z LWFKHV3&%6WRS SHU Å Utilize the m…
5 Single and Dual PCB Conveyor Adjustment Instructions SIPLACE HS-50
5.3 Adjustment of Proximity Switches of Lifting Tables Edition 12/00
92
$GMXVWPHQWRI3UR[LPLW\6ZLWFKHVRI/LIWLQJ7DEOHV
Å Adjust the distance between the proximity switch and the sprocket wheel to 0.4 mm.
.(<
(1) Proximity switch, lifting table (2 pieces)
(7) Sprocket wheel lifting table
(A) Distance proximity switch sprocket wheel = 0.4 mm
Adjustment Instructions SIPLACE HS-50 5 Single and Dual PCB Conveyor

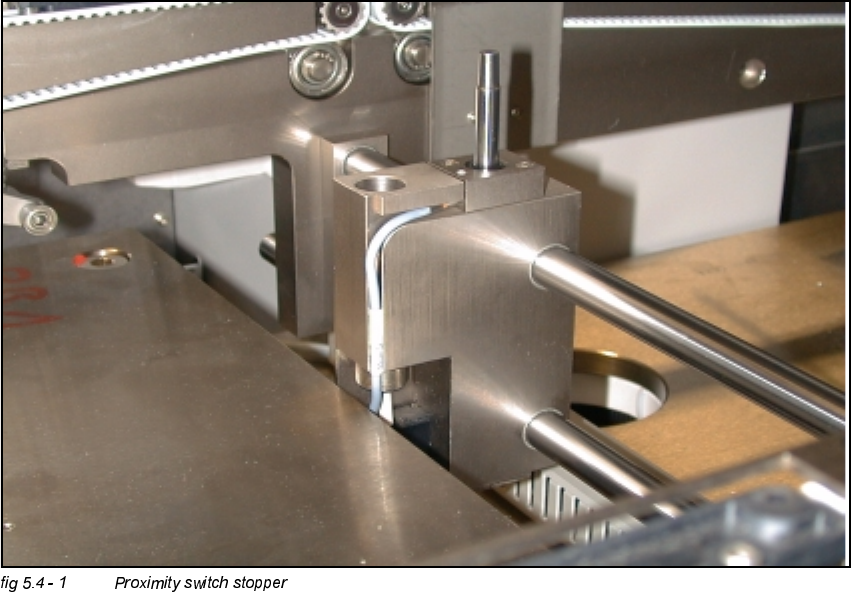

Edition 12/00 5.4 Adjustment of the Proximity Switches PCB Stopper
93
$GMXVWPHQWRIWKH3UR[LPLW\6ZLWFKHV3&%6WRS
SHU
Å Utilize the menu for the extraction of the PCB stopper.
6,7(67
Å Select "Transport functions" ==> "PCB conveyor 1 or 2" ==> "Stopper 1 (2)
retract / extract".
Å Carefully, move the proximity switch until contact is reached.
Å Pull back the proximity switch until a small gap of approximately 0.2 mm is reached, while the
contact must not get interrupted.
5 Single and Dual PCB Conveyor Adjustment Instructions SIPLACE HS-50
5.5 Adjustment of Transport Parallelism Edition 12/00
94
$GMXVWPHQWRI7UDQVSRUW3DUDOOHOLVP
.(<
(1) Reachable position for adjustment
(2) Spindle
(3) Toothed belt width adjustment
(4) Fixing screw
(5) Fixing plate
(6) Clamping piece
