Installation instructions Vacuum Tooling AM KOR (001885 01-01) SIPLACE X4 / OS Application 03/2006 Edition 48 2 Fig. 2.12 - 3 V acuum plate in the plac ement areas with vacuum control unit 2 2 2 2 2 2 2 2 Connection to v…
Installation instructions Vacuum Tooling AMKOR (00188501-01) SIPLACE X4 / OS Application
03/2006 Edition
47
2
2
2
2
2
2
2
2
2
2

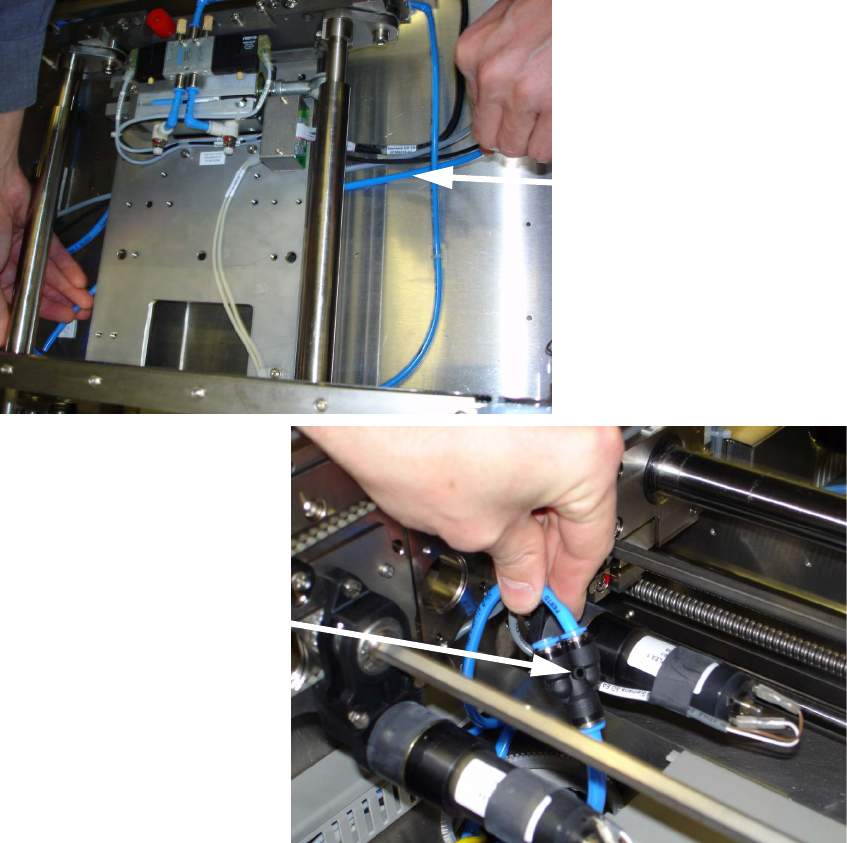

Running compressed air hose
beneath the lifting table in
placement area 1 2
Distribution between
the two placement areas2
Installation instructions Vacuum Tooling AMKOR (00188501-01) SIPLACE X4 / OS Application
03/2006 Edition
48
2

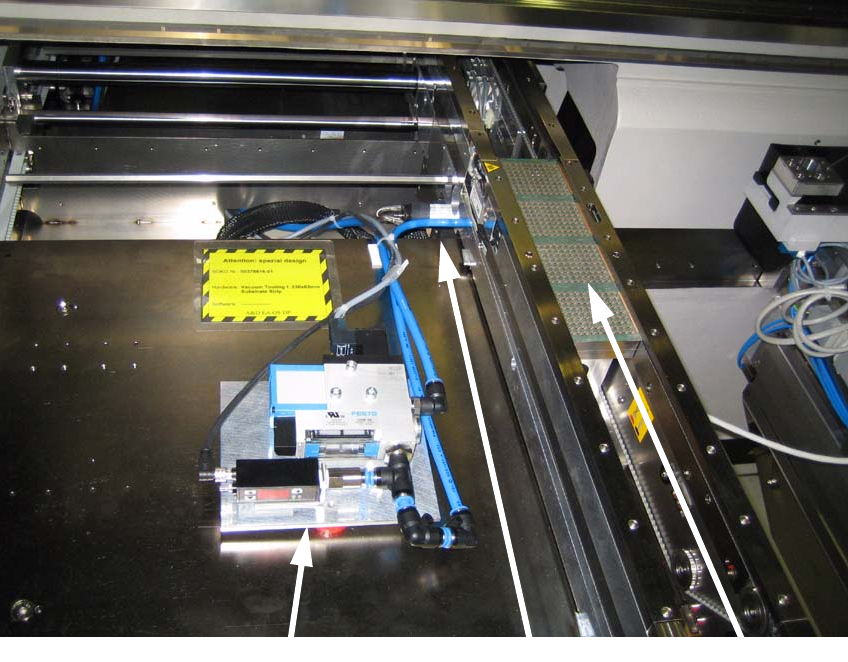

Fig. 2.12 - 3 Vacuum plate in the placement areas with vacuum control unit
2
2
2
2
2
2
2
2
Connection to
vacuum control
Vacuum control unit
Vacuum plate with
costomer board
Installation instructions Vacuum Tooling AMKOR (00188501-01) SIPLACE X4 / OS Application
03/2006 Edition
49

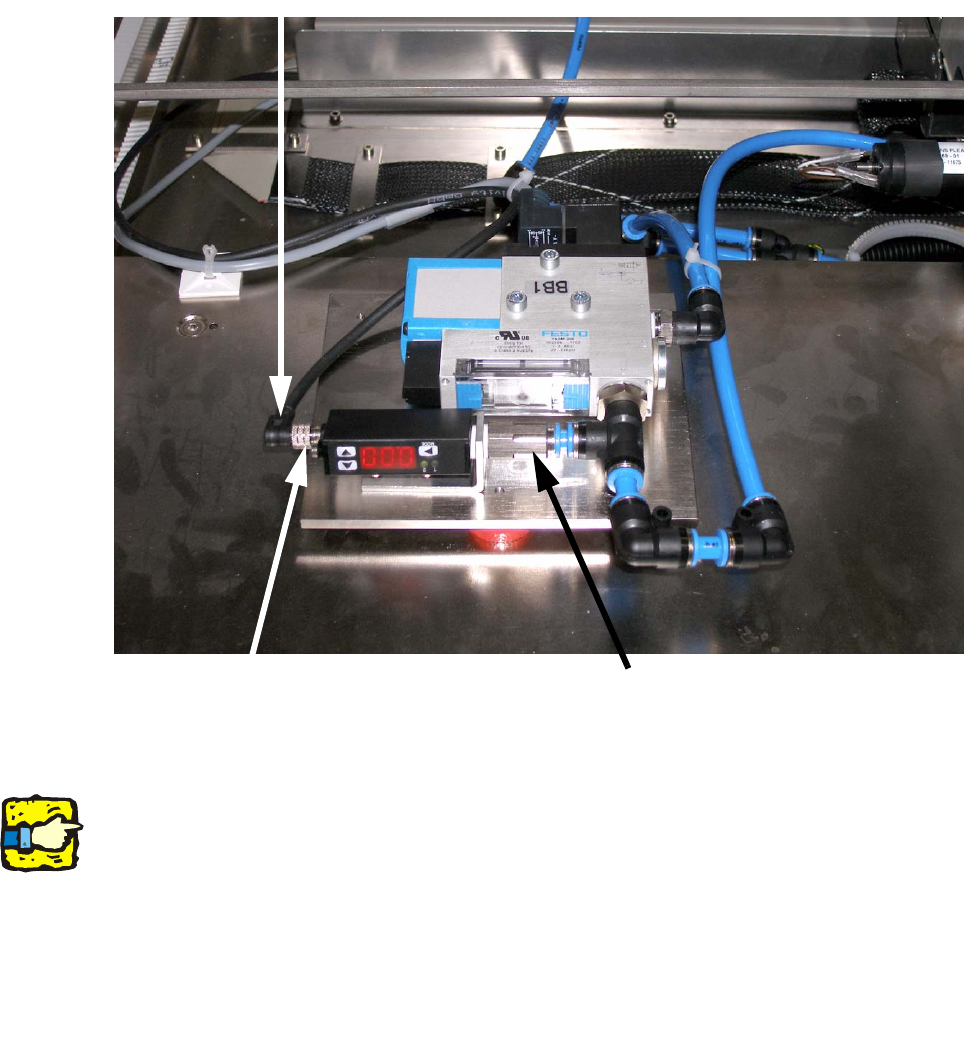

2.8.3 Connecting and programming the vacuum sensor
2
2
2
Important: the vacuum measuring hose (PUN6) is fitted at the 1/8“ connection. The connection for
PUN 3 is simply a vent plug. 2
2
Recommended settimgs for the existing customer PCB: 2
2
Connection between vacuum hose and vacuum measurement
Electrical connection for vacuum sensor
Vent plug
OUT1
OUT2
HYS, N.O.
HYS, N.C.
H1 = 600 mbar
A2 = 150 mbar
h1 = 0,05 mbar
b2 = 0,05 mbar
