Installation instructions Vacuum Tooling AMKOR (00188501-01) SIPLACE X4 / OS Application
03/2006 Edition
53
2
Fig. 2.10 - 3 The vacuum cannot be fully dissipated after the placement process.
Troubleshooting 2
– Check the vacuum tooling connections
Installation instructions Vacuum Tooling AMKOR (00188501-01) SIPLACE X4 / OS Application
03/2006 Edition
54
2

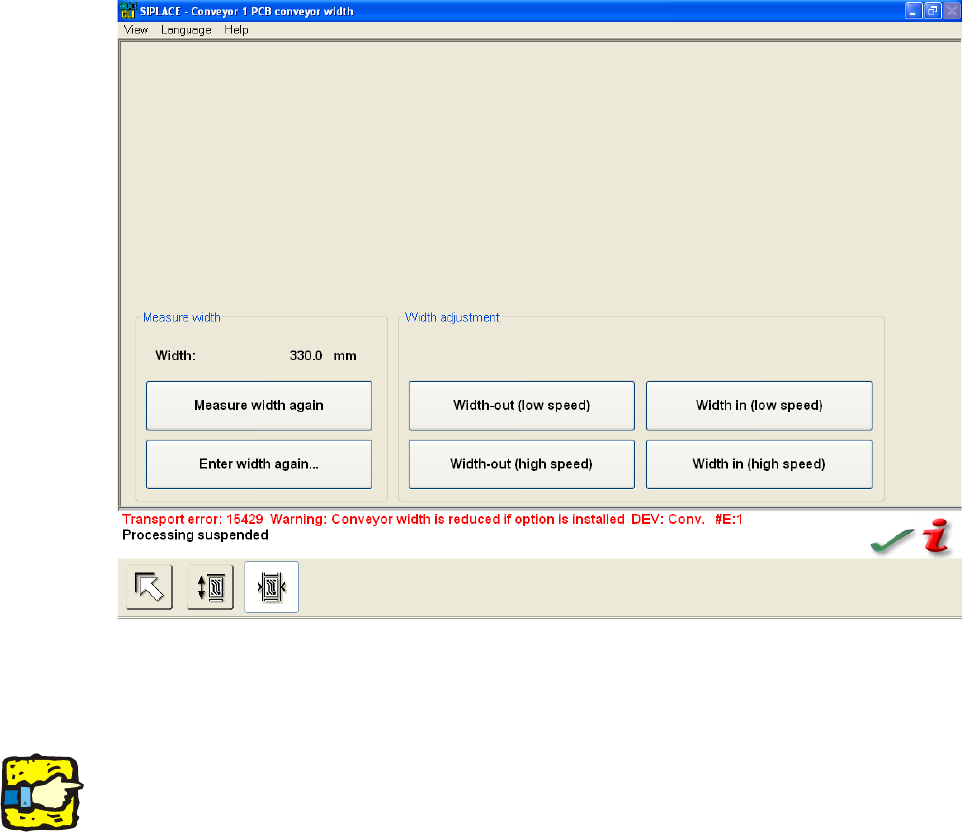

Fig. 2.10 - 4 Attention: The automatic width adjustment must be deactivated.
If the conveyor is moved manually, then this error message appears. The conveyor moves, even
though the vacuum tooling is fitted. 2
2
Risk of crashing. 2
2
2
2.11 Refitting the standard conveyor
– Connectors X34/X35 should be removed so that the special design is no longer present for the
machine and the software works in standard mode.
– Detach the hoses and remove the base plate from the lifting table together with the vacuum
elements.
– Disconnect the air supply to the maintenance unit.
2
