MODEL TCM-3000Z-2 0108-001 8 MAIN BODY SECTION Fig. 1-1 Base 1 2 3 4 1 1 1 2 1 3 16 16 15 15 14 14 1 1-1 1-1 1-1 1 - 2 1-2 1-2 3 - 1 3 - 2 3-1 3-2 3 3-1 3-1 3-2 3 3-1 3 - 2 3 3 - 1 3 - 2 3 3-1 3-1 3-2 3 4 4 4 4-1 4-1 1 6…
MODEL TCM-3000Z-2
0108-001
77

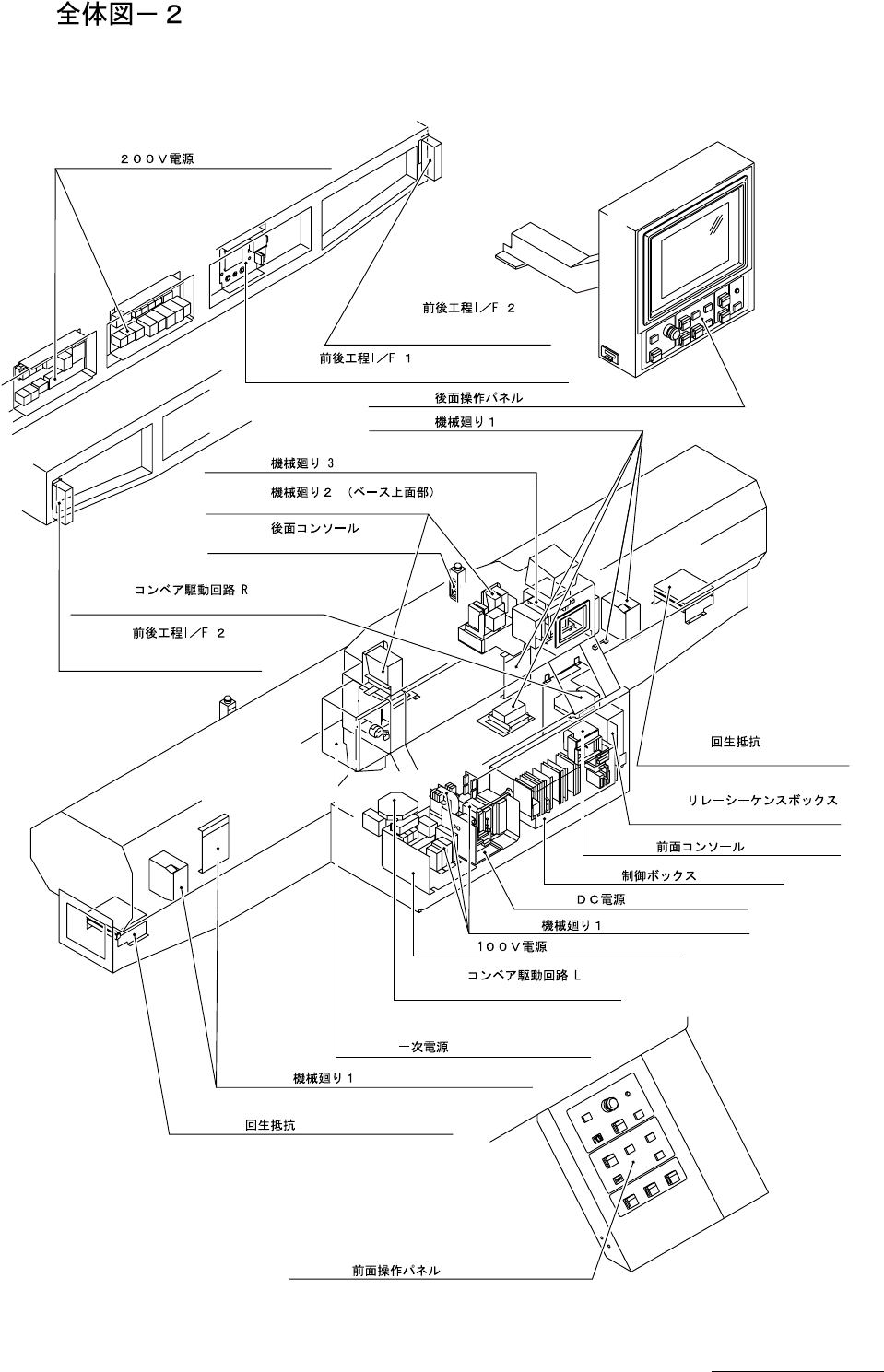

UNIT LAYOUT -2
UNIT LAYOUT-2
TCM-3000Z-2
Fig.11-2 Power Supply-200V
Fig.11-1 Power Supply-Primary
Fig.11-12 Miscellaneous Parts-1
Fig.11-12 Miscellaneous Parts-1
Fig.11-10 Front Operation Panel
Fig.11-3 Power Supply-100V
Fig.11-12 Miscellaneous Parts-1
Fig.11-14 Front Console
Fig.11-20 Miscellaneous Parts-3
Fig.11-16
Fig.11-17
Fig.11-13
Miscellaneous Parts-2
Fig.11-15
Rear Console
Fig.11-11 Rear Operation Panel
Fig.11-4 Power Supply-DC
Fig.11-6~8 Control Box
Fig.11-18
Fig.11-21 Renegative Resistance
Fig.11-21
Renegative Resistance
Fig.11-5
Relay Sequence Box
Process Interface-2
Conveyor Driver Circuit L
Fig.11-19
Conveyor Driver Circuit R
Previous/Next Work Process Interface-1
Previous/Next Work
Fig.11-17
Process Interface-2
Previous/Next Work
MODEL TCM-3000Z-2
0108-001
8
MAIN BODY SECTION

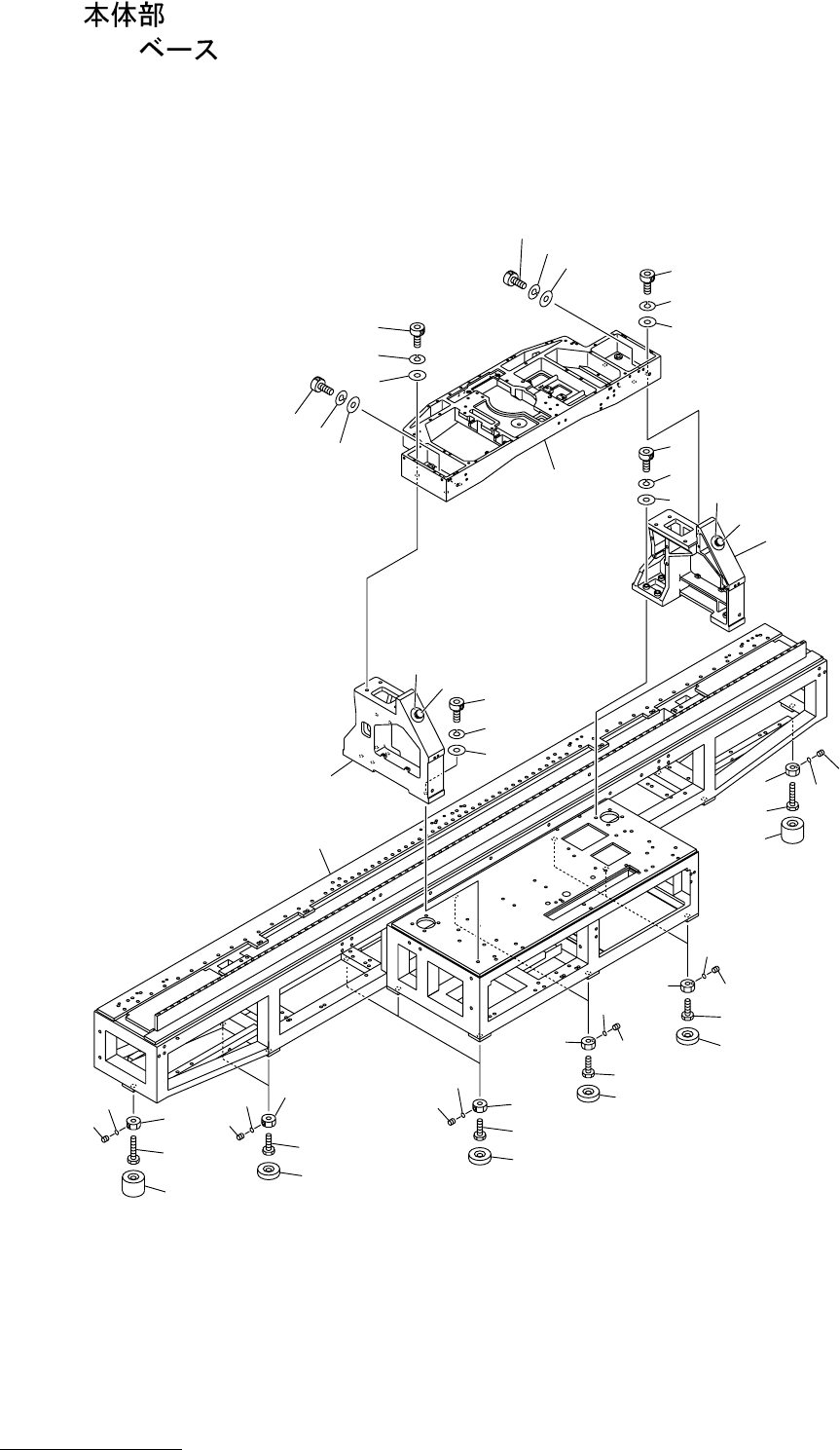

Fig. 1-1
Base
1
2
3
4
11
12
13
16
16
15
15
14
14
1
1-1
1-1
1-1
1-2
1-2
1-2
3-1
3-2
3-1
3-2
3
3-1
3-1
3-2
3
3-1
3-2
3
3-1
3-2
3
3-1
3-1
3-2
3
4
4
4
4-1
4-1
16
15
14
16
16
15
15
19
18
17
17
14
14
16
16
15
15
14
14
19
19
18
18
17
17
21
22
22
21
22
MODEL TCM-3000Z-2
0108-001
9
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
1-1
1 630 048 9910 BLOCK,LOCATE 6 628L--03B-005
1 -1 630 048 9637 BLOCK,LOCATE 2 628L--03B-007
1 -2 630 048 9927 BLOCK,LOCATE 6 628L--03B-006
2 630 093 6810 FRAME 1 628L--03B-001
3 630 042 5697 NUT 14 628L--03H-018
3 -1 630 041 6770 COLLAR 14 628L--03B-008
3 -2 630 000 8975 SET SCREW 14 M6X6 SET
4 630 042 5673 BOLT,HEX 12 628L--03H-017
4 -1 630 042 5680 BOLT,HEX 2 628L--03H-030
11 630 057 2841 FRAME(L) 1 628L--03B-003
12 630 057 2834 FRAME(R) 1 628L--03B-002
13 630 057 2858 FRAME(HEAD) 1 628L--03B-004
14 411 141 5401 WASHER V 20X37X3 18 FW20
15 411 141 6804 WASHER SPR 20 18 SW20
16 630 009 5814 BOLT,HEX-SCT 18 M20X70
17 411 141 5203 WASHER V 16X30X3 2 FW16
18 411 141 3407 WASHER SPR 16 2 SW16
19 630 083 4253 BOLT,HEX-SCT 2 628L--03H-095
21 630 049 7892 NAME PLATE,NOTICE 2 628FB-03D-078
22 630 053 3583 SWITCH,BUTTON 2 PB26, PB27 628FB-03D-001
