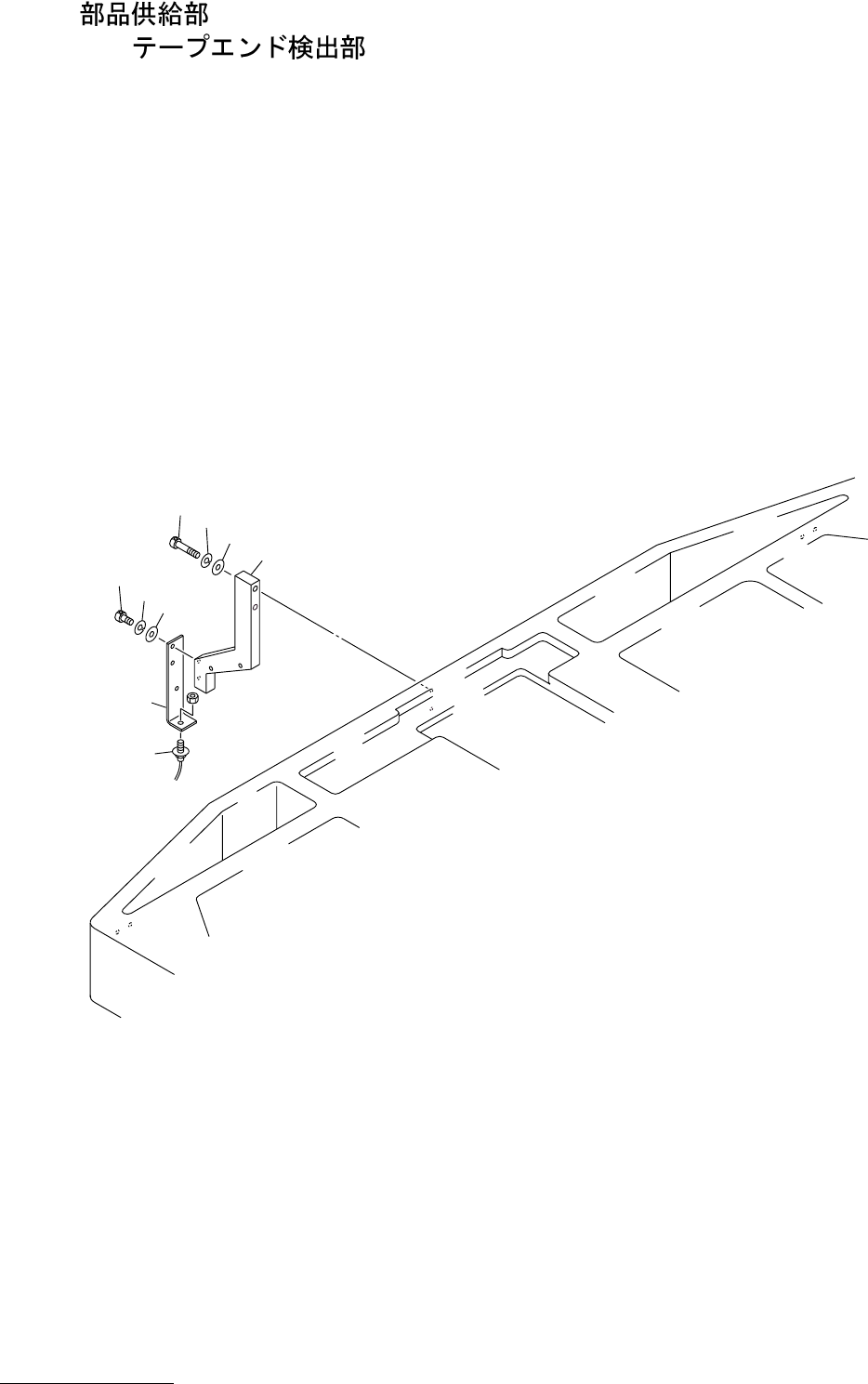

MODEL TCM-3000Z-2 0108-001 114 FEEDER CARRIAGE SECTION Fig. 5-4 Tape End Detector 1 6 7 8 9 10 10 1 1 12 12 1 3
MEMO
MODEL TCM-3000Z-2
0108-001
114
FEEDER CARRIAGE SECTION
Fig. 5-4
Tape End Detector
1
6
7
8
9
10
10
11
12
12
13
MODEL TCM-3000Z-2
0108-001
115
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
5-4
1 630 057 9246 STAY 1 628L--03B-011
6 630 052 1948 STAY 1 628L--03B-010
7 630 004 2108 SENSOR,PELEC 1 PHS42 628L--03H-046
8 411 141 4107 WASHER V 5X10X1 2 FW5
9 411 141 6705 WASHER SPR 5 2 SW5
10 630 000 7756 BOLT,HEX-SCT 2 M5X12
11 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
12 411 141 3001 WASHER SPR 6 2 SW6
13 630 000 7978 BOLT,HEX-SCT 2 M6X60
