MODEL TCM-3000Z-2 0108-001 176 PNEUMATIC SECTION Fig.10-1 Vacuum Pump 1 2 5 4 3 2 5 2 4 2 3 6 7 8 1 2 1 4 2 1 2 2 3 1 3 2 33 33 34 34 35 35 36 36 37 37 4 1 4 2 4 3 4 4 4 5 46 46 47 47 50 50 13 13 47 47 45 45 3 3 3 3 3 3 …
MODEL TCM-3000Z-2
0108-001
175
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
9-4
1 630 048 8920 STAY 2 628F--03B-023
2 630 057 7082 PLATE(FEED) 1 628F--03B-022
3 411 141 4107 WASHER V 5X10X1 8 FW5
4 411 141 6705 WASHER SPR 5 8 SW5
5 630 000 7787 BOLT,HEX-SCT 4 M5X25
6 630 000 7787 BOLT,HEX-SCT 4 M5X25
7 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
8 630 005 6525 BLOCK 2 628F--03B-024
9 630 048 8869 PLATE(PUSH) 2 628F--03B-025
10 411 141 4008 WASHER V 4X9X0.8 4 FW4
11 411 141 2905 WASHER SPR 4 4 SW4
12 630 000 7633 BOLT,HEX-SCT 4 M4X12
13 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
14 411 141 3001 WASHER SPR 6 2 SW6
15 411 140 6003 BOLT WING 6X20 2 628F--03H-026
16 630 000 7503 BOLT,HEX-SCT 2 M3X6
MODEL TCM-3000Z-2
0108-001
176

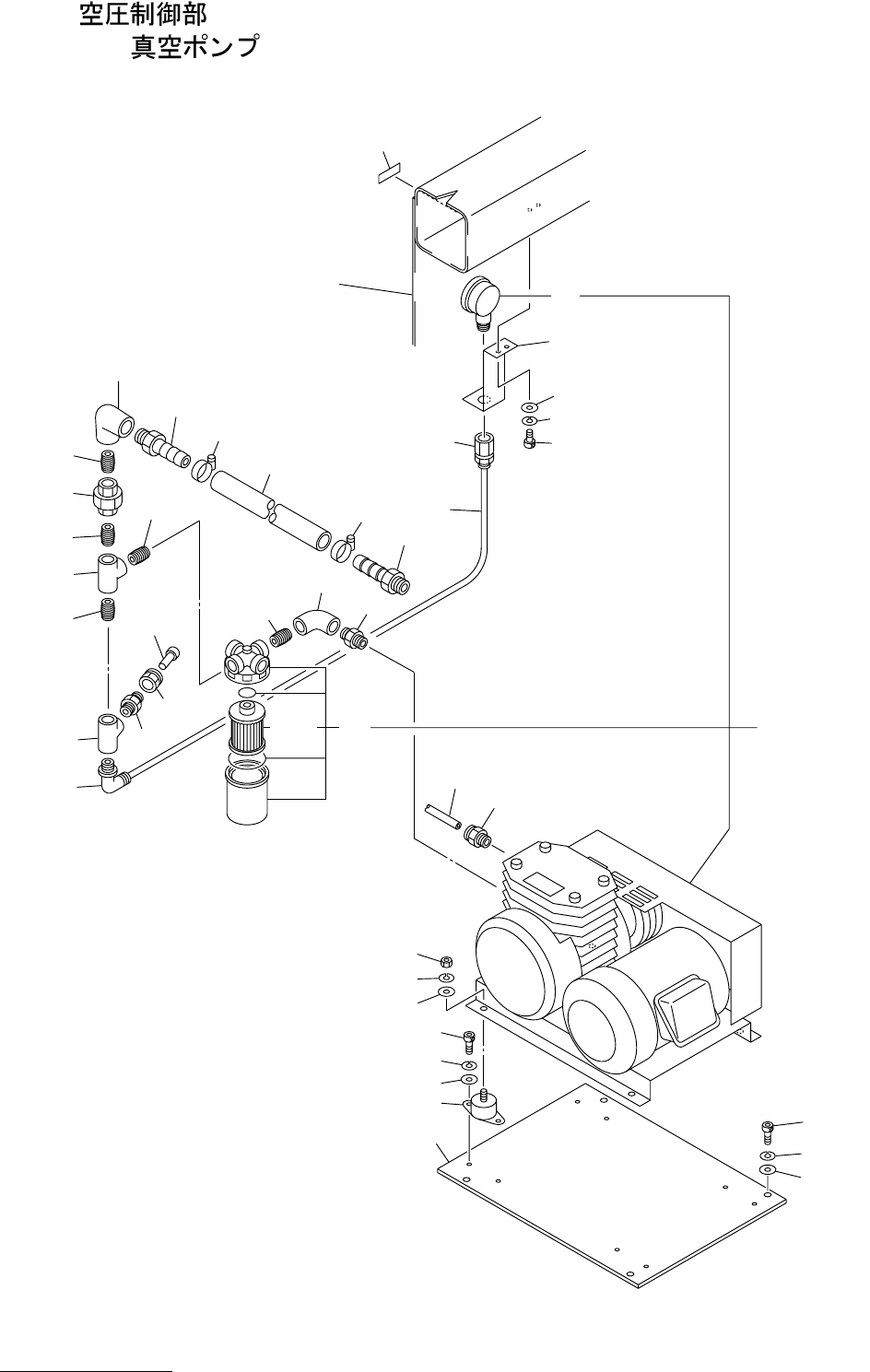

PNEUMATIC SECTION
Fig.10-1
Vacuum Pump
1
2
5
4
3
25
24
23
6
7
8
12
14
21
22
31
32
33
33
34
34
35
35
36
36
37
37
41
42
43
44
45
46
46
47
47
50
50
13
13
47
47
45
45
33
33
33
33
33
34
13-1
15
18
19
20
14-1
14-1
See Fig.12-2
See Fig.12-2
Key No.27
Key No.27
Fig.10-1
TCM-3000Z-2
TCM-3000Z
MODEL TCM-3000Z-2
0108-001
177
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
10-1
1 630 057 7983 PLATE 1 628L--03B-013
2 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 628L--03H-002
3 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
4 411 141 3001 WASHER SPR 6 8 SW6
5 630 000 7862 BOLT,HEX-SCT 8 M6X10
6 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
7 411 141 3001 WASHER SPR 6 4 SW6
8 630 000 7886 BOLT,HEX-SCT 4 M6X16
12 630 055 2195 VACUUM PUMP 1 M1, #3-040437-1 628L--03H-001
13 630 031 8593 AIR LINE EQPT(FILTER) 1 #3-037940
13 -1 630 012 1230 AIR LINE EQPT(FLT ELEM) 1 #XB401379743 4-410A302-4
14 630 055 2171 VACUUM PARTS 1 #4-400A302-1
14 -1 630 055 3062 PIPE FITTINGS 1 628L--03H-091
15 630 056 8035 BRACKET 1 628L--03B-012
18 411 141 4107 WASHER V 5X10X1 2 FW5
19 411 141 6705 WASHER SPR 5 2 SW5
20 630 000 7749 BOLT,HEX-SCT 2 M5X10
21 630 003 7074 PIPE FITTINGS 1
23 411 141 4503 WASHER V 8X17X1.6 8 FW8
24 411 141 3100 WASHER SPR 8 8 SW8
25 411 141 0901 NUT HEX 8 8 M8
31 630 034 9290 PIPE FITTINGS 1 628L--03H-037
32 630 003 7845 PIPE FITTINGS 1
33 630 003 8187 PIPE FITTINGS 5
34 630 003 8088 PIPE FITTINGS 2
35 630 003 8279 PIPE FITTINGS 1 628L--03H-003
36 630 009 3520 PIPE FITTINGS 1 628L--03H-004
37 630 003 7371 PIPE FITTINGS 1
42 630 003 8033 PIPE FITTINGS 1
43 630 003 7036 PIPE FITTINGS 1
44 630 003 7791 PIPE FITTINGS 1
45 630 004 1026 PIPE FITTINGS 2 628L--03H-005
46 630 105 5619 TUBE 1 628L--03H-006
47 630 008 0940 TUBE(BAND) 2 628L--03H-007
