MODEL TCM-3000Z-2 0108-001 181 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 10-3 1 630 053 8540 SOLENOID V AL VE 1 628F--03H-030 1 -2 630 081 3593 SOLENOID V AL VE 2 SV24A, SV24B, SV31A, SV31B 1 -3 630 003 6541 AIR …
MODEL TCM-3000Z-2
0108-001
180

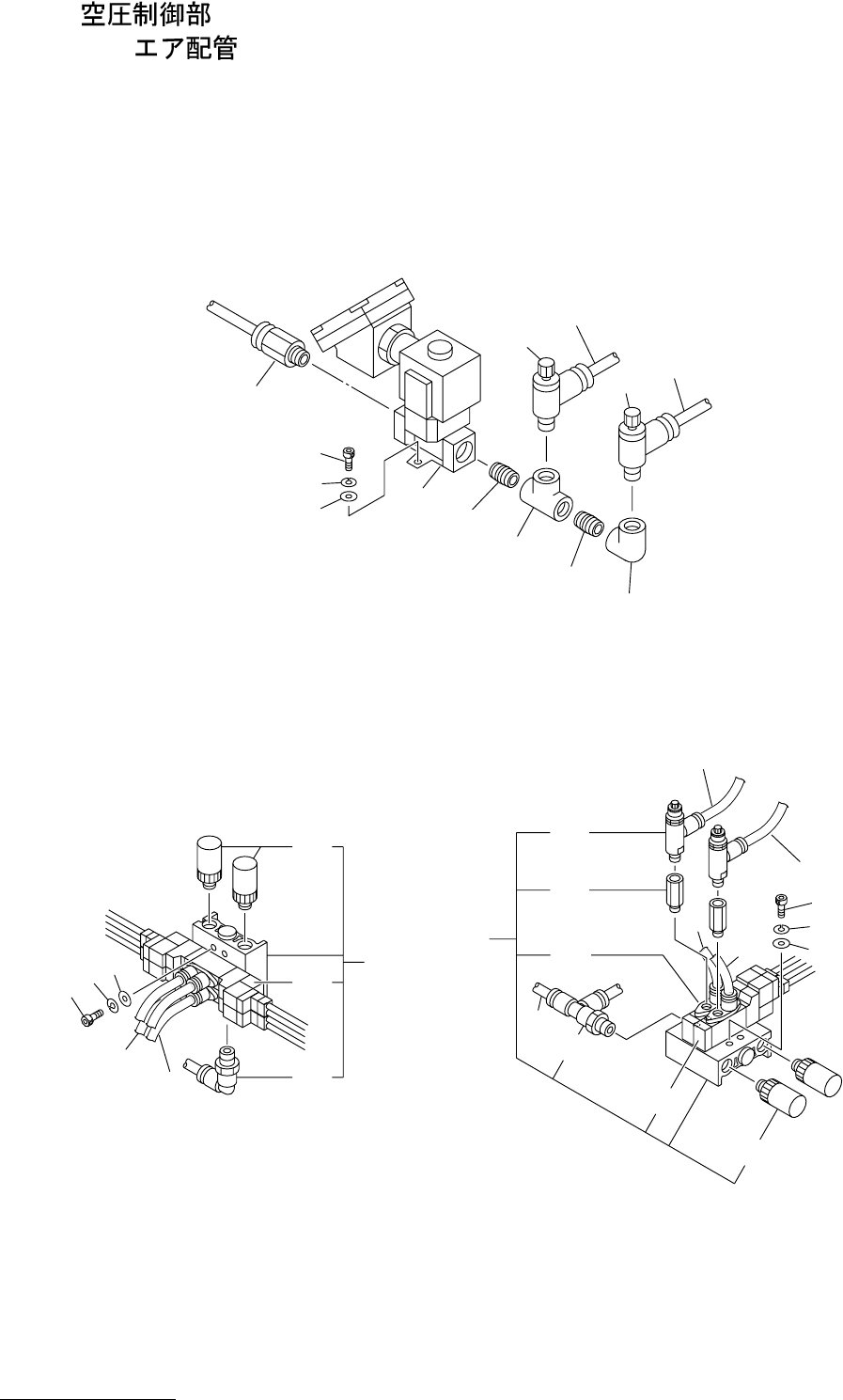

PNEUMATIC SECTION
Fig.10-3
Air Piping
21
22
22
23
23
25
26
26
29
29
28
28
27
27
41
42
42
22
24
25
6
7
8
5-7
5-6
5-5
5-2
5-3
5-4
1-3
1-2
1-4
1
5
14
13
15
15
13
14
14
2
3
4
11
12
MODEL TCM-3000Z-2
0108-001
181
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
10-3
1 630 053 8540 SOLENOID VALVE 1 628F--03H-030
1 -2 630 081 3593 SOLENOID VALVE 2 SV24A, SV24B, SV31A, SV31B
1 -3 630 003 6541 AIR LINE EQPT 2
1 -4 630 052 1993 PIPE FITTINGS 1
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
5 630 061 1885 SOLENOID VALVE 1 628G--03H-037
5 -2 630 081 3609 SOLENOID VALVE 2 SV32, SV106
5 -3 630 003 6541 AIR LINE EQPT 2
5 -4 630 085 2707 PIPE FITTINGS 1
5 -5 630 040 4067 PIPE FITTINGS 2
5 -6 630 003 8293 PIPE FITTINGS 2
5 -7 630 065 7296 AIR LINE EQPT 2
6 411 141 4008 WASHER V 4X9X0.8 2 FW4
7 411 141 2905 WASHER SPR 4 2 SW4
8 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 SV30 628L--03H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 628L--03H-015
26 630 031 8579 PIPE FITTINGS 1 628L--03H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
MODEL TCM-3000Z-2
0108-001
182

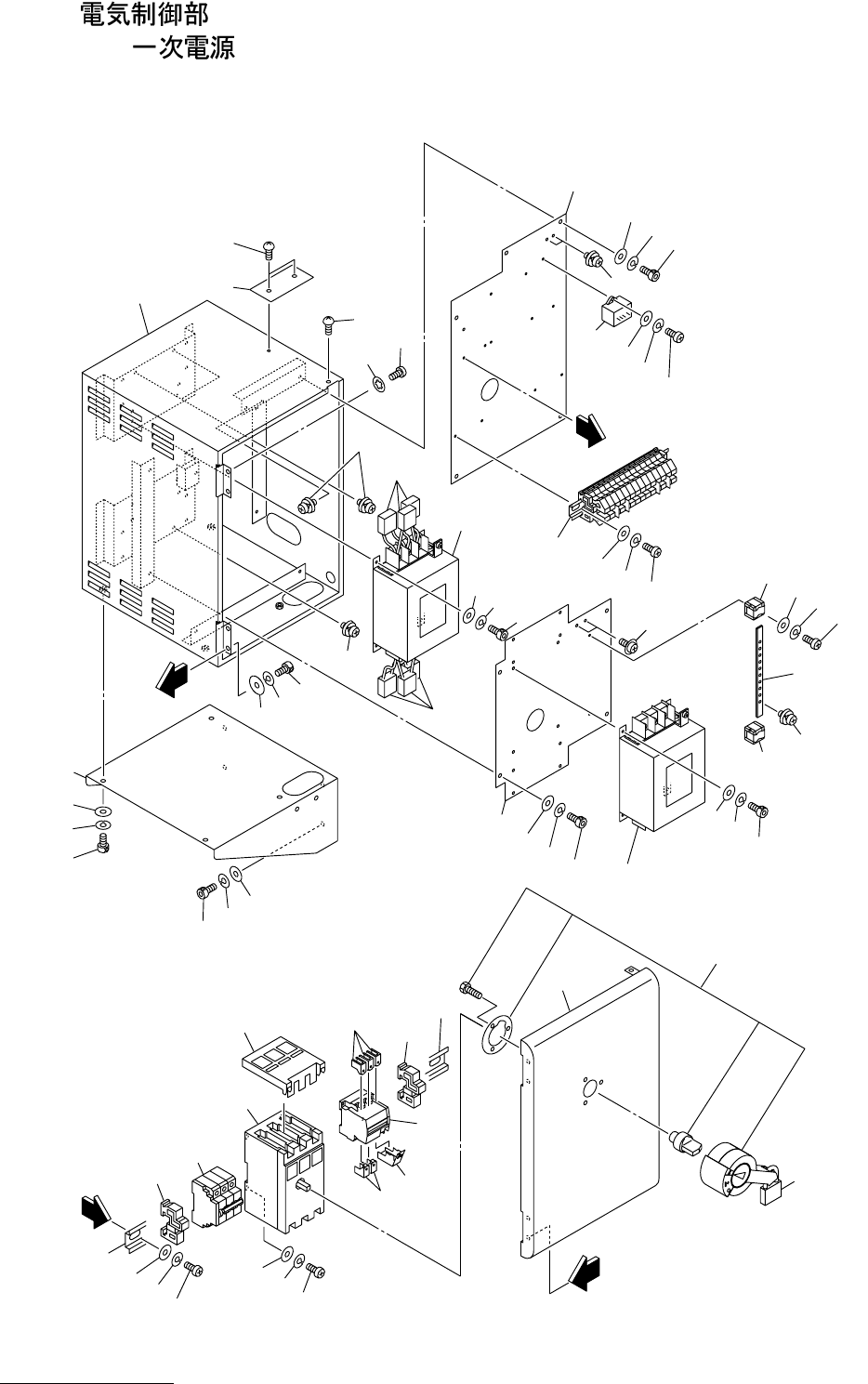

ELECTRICAL SECTION
Fig.11-1
Power Supply-Primary
2
A
A
3
4
5
7
6
8
9
10
10
6-1
6-1
B
B
10
12
11
11
13
14
20
17
18
18
19
21
25
25
22
23
24
24
21
41
42
26
26
32
31
33
34
75
75
71
71
72
73
73
74
74
36
57
55
38
38
39
40
40
56-2
56-1
56-1
56-1
56
57
51
37
37
65
66
67
67
68
87
81
81
82
82
82
82
83
83
83
83
84
84
84
84
85
1
86
16
16
52
51
53
54
5-1
5-1
5-2
5-2
Fig.11-1
TCM-3000Z-2
