MODEL TCM-3000Z-2 0108-001 221 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 11 - 1 5 1 630 059 7066 BRACKET 1 628FG-03V-004 3 630 000 4243 SOCKET 1 628FG-03D-002 4 41 1 1 19 1909 W ASHER V 3X7X0.5 2 FW3 F 5 41 1 086…
MODEL TCM-3000Z-2
0108-001
220

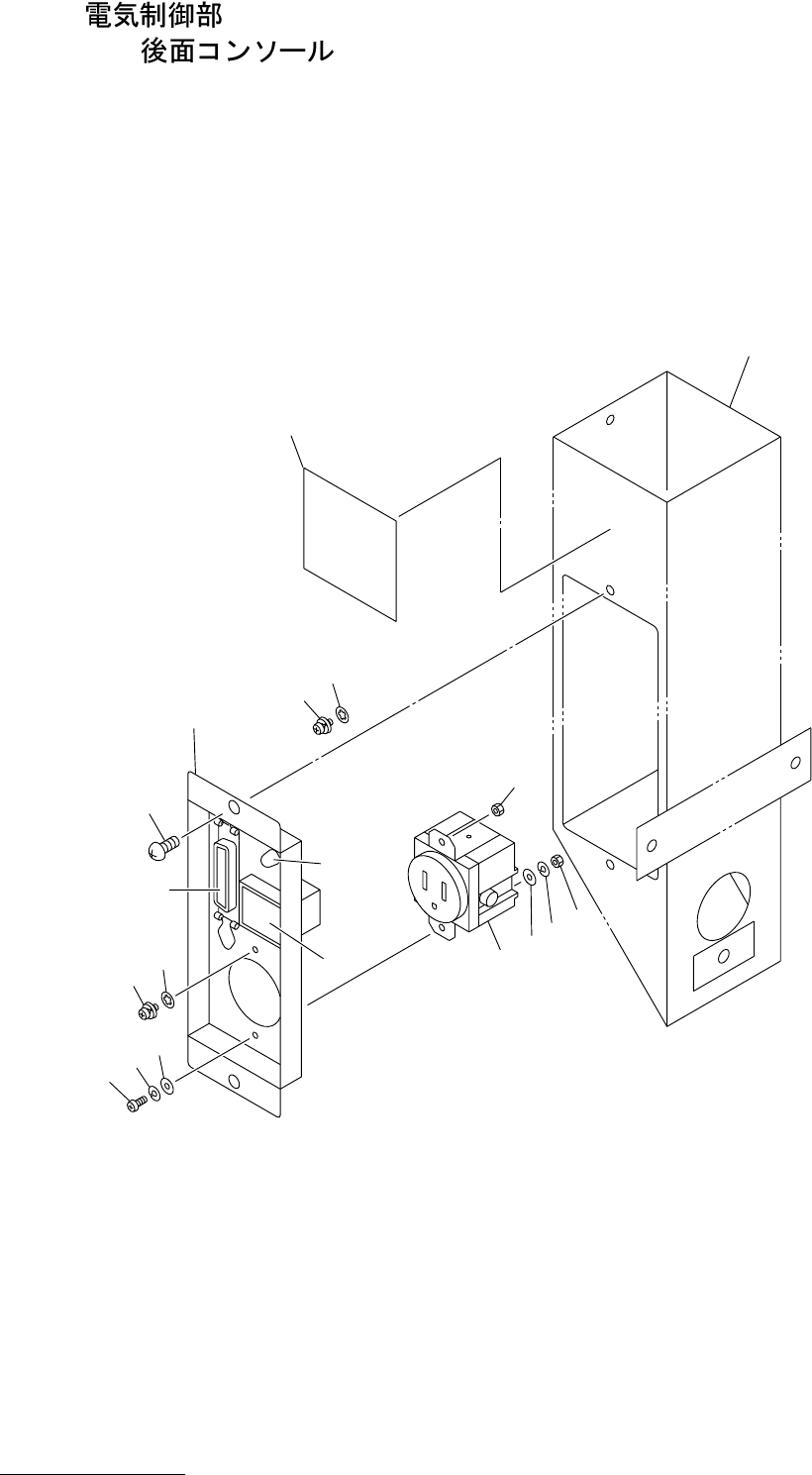

ELECTRICAL SECTION
Fig.11-15
Rear Console
1
10
9
8
7
3
4
4
5
5
6-1
6-1
6-3
6-3
6-2
6-3
6
20
20
See Fig.13-1
Key No.10
24
23
MODEL TCM-3000Z-2
0108-001
221
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-15
1 630 059 7066 BRACKET 1 628FG-03V-004
3 630 000 4243 SOCKET 1 628FG-03D-002
4 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
5 411 086 4408 WASHER SPR 3 2 SW3 F
6 411 042 0703 SCR PAN 3X8 1 M3X8 PAN
6 -1 411 086 9809 WASHER IN TW 3 1
6 -2 411 114 7005 SCR PAN+SW+W 3X8 1
6 -3 411 054 6809 NUT HEX 3 2 M3 F
7 630 058 9191 CORD 1 CN120-CN192 628FB-03D-124
8 630 000 2744 SWITCH,BUTTON 1 PB31 628FG-03D-008
9 407 035 4704 LED SLP-721F 1 LED18 628FG-03D-011
10 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
20 630 059 9251 NAME PLATE,PARTS 1 628FG-03D-013
23 411 087 1109 WASHER IN TW 5 1
24 411 036 8609 SCR PAN+SW+W 5X12 1
MODEL TCM-3000Z-2
0108-001
222
ELECTRICAL SECTION
Fig.11-16
I F 1
Previous/Next Work Process Interface-1
31
10
1
56
56
51
51
52
53
54
55
57
57
58
58
34
13
21
20
22
23
23
14
15
15
15
11
30
30
32
33
33
37
36
38
39
39
44
41
.
42
43
43
42
42
44
41-1
41-1
2
3
4
33
33
32
32
31
31
