P-195-001e - 第241页
MODEL TCM-3000Z-2 0108-001 239 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 12-2 1 630 041 9498 COVER 1 628R--03B-1 17 2 630 041 9504 COVER 1 628R--03B-1 18 3 630 058 1645 COVER(ML) 1 628R--03B-1 19 4 630 058 1638 C…
MODEL TCM-3000Z-2
0108-001
238
ࠞࡃㇱ COVER SECTION
Fig.12-2 ᧄࠞࡃ Body Cover
1
2
3
4
13
8
12
12
7
21
22
23
23
24
24
27
27
26
11
10
28
28
14
14
14
14
5
9
41
41
42
43
30
29
29
30
30
See Fig.1-2
See Fig.1-2
Key No.58
Key No.58
MODEL TCM-3000Z-2
0108-001
239
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
12-2
1 630 041 9498 COVER 1 628R--03B-117
2 630 041 9504 COVER 1 628R--03B-118
3 630 058 1645 COVER(ML) 1 628R--03B-119
4 630 058 1638 COVER(MR) 1 628R--03B-120
5 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
7 630 058 1614 COVER(RFR) 1 628R--03B-123
8 630 058 1621 COVER(RFR) 1 628R--03B-122
9 411 113 9109 SCR TRS 5X10 11 M5X10 TRS
10 630 058 2093 COVER(DUCT) 1 628R--03B-133
11 630 051 8078 COVER(FSL) 1 628R--03B-126
12 630 058 1607 COVER(RFL) 1 628R--03B-124
13 630 058 1591 COVER(RFL) 1 628R--03B-125
14 411 113 9109 SCR TRS 5X10 21 M5X10 TRS
21 630 094 5768 COVER 1 628R--03B-127
22 630 058 1331 COVER(RBL) 1 628R--03B-128
23 630 094 5775 COVER 1 628R--03B-129
24 630 094 5782 COVER 1 628R--03B-130
26 630 058 1355 COVER(RBR) 1 628R--03B-131
27 630 094 5799 COVER 1 628R--03B-132
28 411 113 9109 SCR TRS 5X10 38 M5X10 TRS
29 630 058 1584 COVER(RS) 2 628R--03B-134
30 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
41 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
42 411 141 3001 WASHER SPR 6 3 SW6
43 630 000 7893 BOLT,HEX-SCT 3 M6X20
MODEL TCM-3000Z-2
0108-001
240
ࠞࡃㇱ COVER SECTION

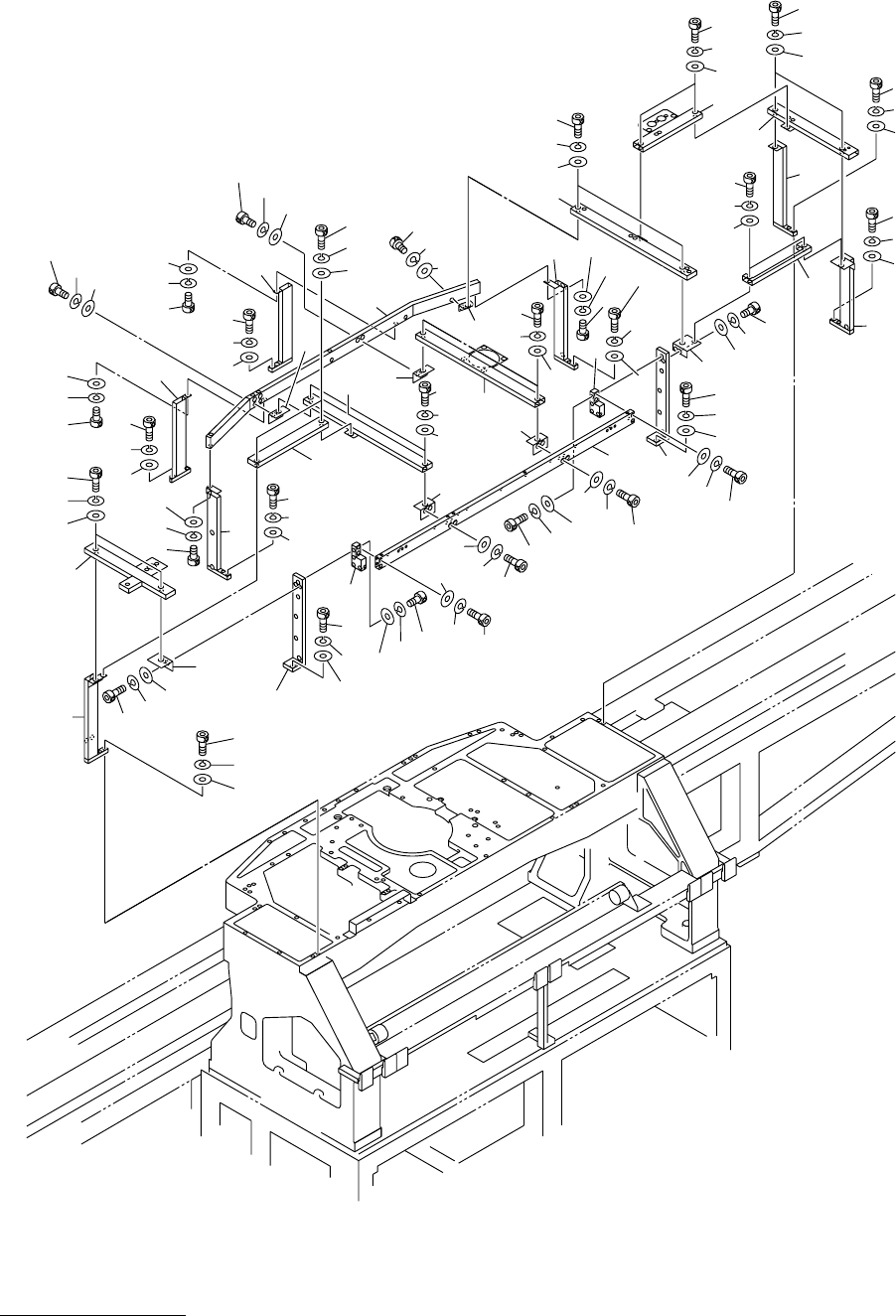

Fig.12-3 ㇱࡈࡓ Upper Frame
