MODEL TCM-3000Z-2
0108-001
259
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
13-3
91 630 100 5294 PLATE 6 628RB-03B-053
92 630 100 5300 PLATE 6 628RB-03B-054
93 630 100 5317 PLATE 1 628RB-03B-055
94 630 101 0199 PLATE 2 628RB-03B-056
95 630 101 0205 PLATE 2 628RB-03B-057
96 630 100 5348 PLATE 2 628RB-03B-058
97 630 100 5355 PLATE 2 628RB-03B-059
98 630 100 5362 PLATE 1 628RB-03B-060
99 630 059 0012 NUT 24 628RB-03H-014
100 411 140 8700 SCR FLT 5X14 50 628RB-03H-015
102 630 057 6672 COVER 2 628RB-03B-044
103 630 057 6696 COVER 2 628RB-03B-045
104 630 061 1069 SEAL 4 628RB-03H-004
105 630 061 1076 SEAL 8 628RB-03H-005
106 630 061 1083 SEAL 8 628RB-03H-006
107 630 061 1052 TUBE 4 628RB-03H-007
111 630 057 6665 BLOCK 6 628RB-03B-043
112 630 059 2979 BEARING,RADIAL 6 628RB-03H-002
113 411 141 4008 WASHER V 4X9X0.8 12 FW4
114 411 141 2905 WASHER SPR 4 12 SW4
115 630 000 7633 BOLT,HEX-SCT 12 M4X12
121 630 071 4272 PLATE 1 628RB-03B-023
122 630 071 4265 PLATE 1 628RB-03B-022
126 411 113 9109 SCR TRS 5X10 10 M5X10 TRS
MODEL TCM-3000Z-2
0108-001
260

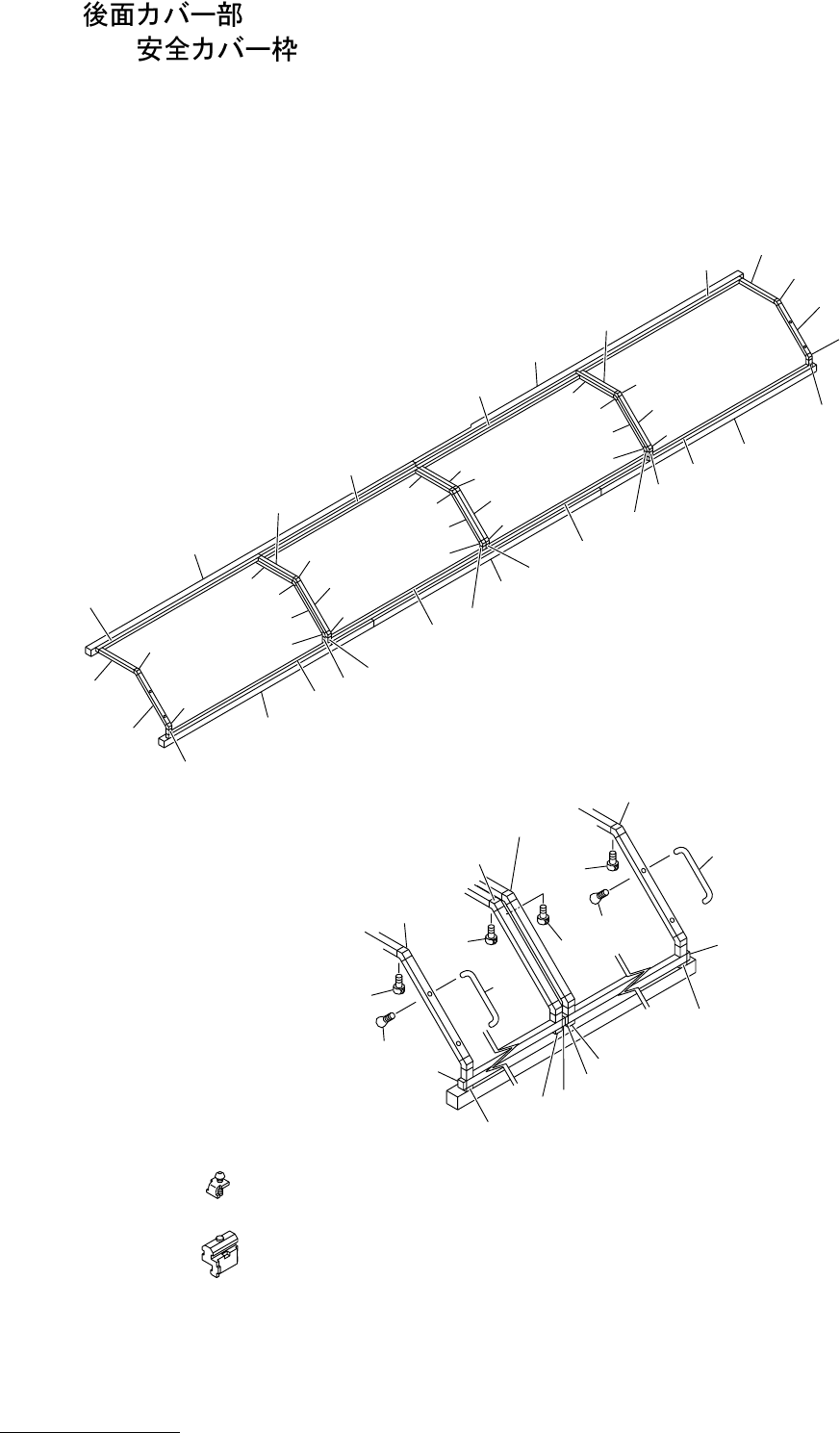

REAR COVER SECTION
Fig.13-4
Guard Cover Frame
50
51
51
52
62
62
63
63
67
67
64
67
66
87-2
82
82
83
84
84
45
86
11
.
11-1
11-1
11
11
.
11-1
11-1
26
27
27
27
.
26-1
46
.
46-1
46-1
27
27
.
27-1
27-1
67
67
.
87
.
87-1
47
.
47-1
47-1
13
.
13-1
13-1
.
13-2
23
23
.
23-1
23-1
23
.
23-1
43
.
43-1
43-1
43
43
.
43-1
24
.
24-1
44
.
44-1
44-1
25
26
26
14
14
.
14-1
.
14-2
12
.
12-1
46
46
21
61
81
41
.
28
28
29
29
.
48
49
.
68
70
90
69
.
88
89
30
30
22
42
27-2
27-2
47-2
31
32
32
66
66
86
67-2
67-2
67-1
27
27
27
87
47
47
47
47
87
87
47
63
63
67
67
64
64
67
67
83
87
84
84
87
87
Key 28.48.68.88
Key 29.49.69.89
MODEL TCM-3000Z-2
0108-001
261
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
13-4
630 060 4665 MECH PARTS 1 628RB-03H-001
11 630 058 9580 MECH PARTS (FRAME) 2
11 -1 630 059 0029 NUT 22
12 630 058 9603 MECH PARTS (FRAME) 1
12 -1 630 059 0029 NUT 9
13 630 058 9627 MECH PARTS (FRAME) 1
13 -1 630 059 0029 NUT 15
13 -2 630 058 9955 MECH PARTS 1
14 630 058 9634 MECH PARTS (FRAME) 1
14 -1 630 059 0029 NUT 15
14 -2 630 058 9955 MECH PARTS 1
21 630 058 9658 MECH PARTS (FRAME) 1
22 630 058 9689 MECH PARTS (FRAME) 1
23 630 058 9702 MECH PARTS (FRAME) 2
23 -1 630 059 0012 NUT 2
24 630 058 9719 MECH PARTS (FRAME) 1
24 -1 630 059 0012 NUT 2
25 630 058 9740 MECH PARTS (FRAME) 1
26 630 058 9764 MECH PARTS (FRAME) 2
26 -1 630 059 0012 NUT 1
27 630 058 9863 MECH PARTS 4
27 -1 630 058 9894 MECH PARTS 8
27 -2 630 059 0036 BOLT,HEX-SCT 8
28 630 058 9979 MECH PARTS 4
29 630 059 0067 GUIDE,SLIDE 1
30 630 058 9931 MECH PARTS 4
31 630 059 0050 HANDLE 1
32 630 059 0043 MACHINE SCREW 2
41 630 058 9658 MECH PARTS (FRAME) 1
42 630 058 9689 MECH PARTS (FRAME) 1
43 630 058 9702 MECH PARTS (FRAME) 2
43 -1 630 059 0012 NUT 2
44 630 058 9733 MECH PARTS (FRAME) 1
44 -1 630 059 0012 NUT 2
45 630 058 9740 MECH PARTS (FRAME) 1
46 630 058 9764 MECH PARTS (FRAME) 2
46 -1 630 059 0012 NUT 1
47 630 058 9863 MECH PARTS 4
47 -1 630 058 9894 MECH PARTS 8
47 -2 630 059 0036 BOLT,HEX-SCT 8
48 630 058 9979 MECH PARTS 4
49 630 059 0067 GUIDE,SLIDE 1
50 630 058 9931 MECH PARTS 4
51 630 059 0050 HANDLE 1
52 630 059 0043 MACHINE SCREW 2
61 630 058 9665 MECH PARTS (FRAME) 1
62 630 058 9689 MECH PARTS (FRAME) 1
63 630 058 9771 MECH PARTS (FRAME) 2
64 630 058 9825 MECH PARTS (FRAME) 2
66 630 058 9849 MECH PARTS (FRAME) 2
