3 4 Y -axis Moving-axis KW8-080403 No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1 KW8-M2677-S0X Y AXIS GUIDE SET 2 A 2 KW8-M2601-00X FRAME 1,Y AXIS 4 / 3 KW8-M2603-00X SCREW BALL Y -AXIS 2 …
2
4

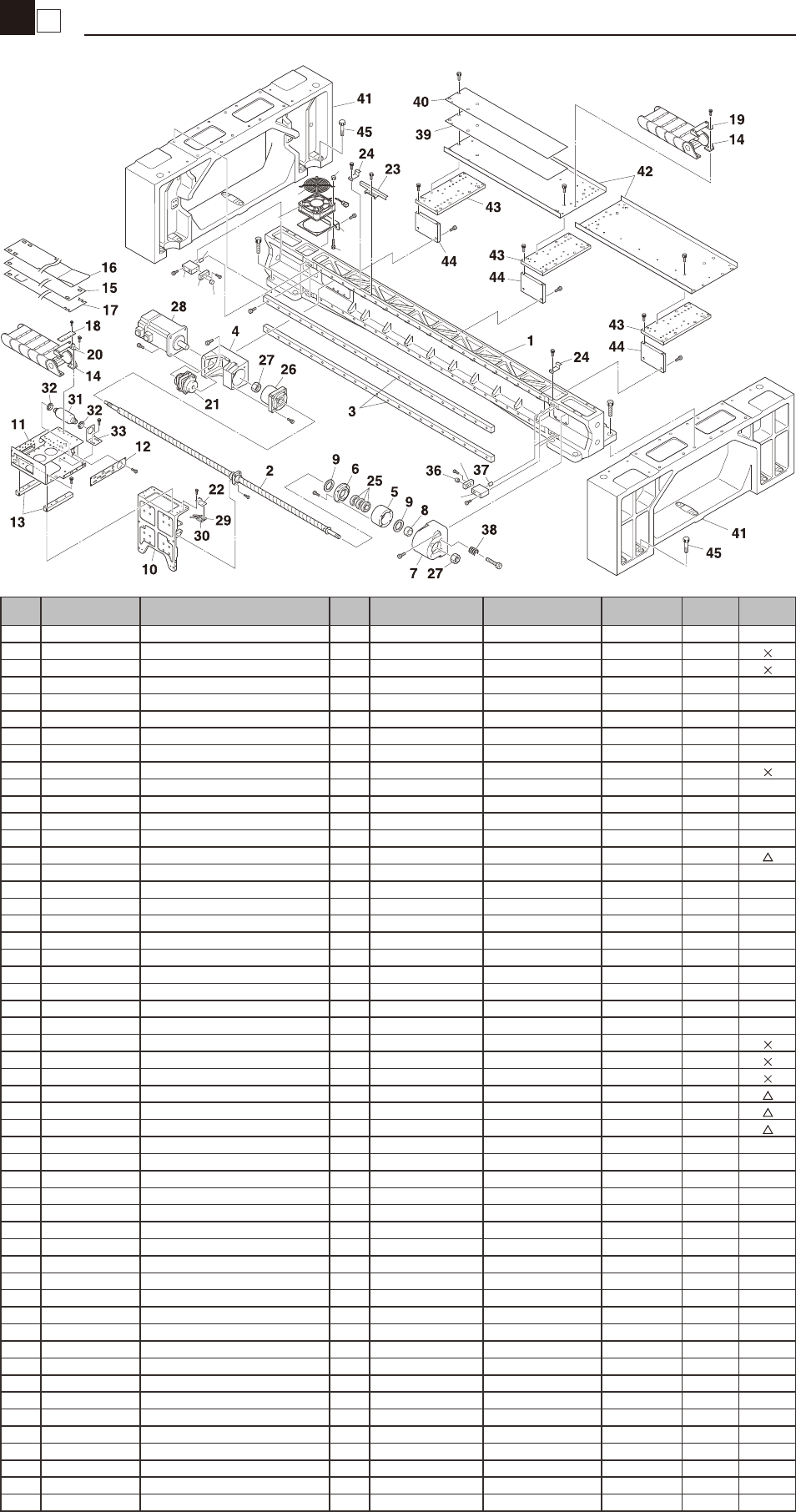

X-axis
Moving-axis
KW8-080403
47
37
36
35
51
49
48
52
53
34
46
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KW8-M2201-00X FRAME 1 X-AXIS 2 /
2 KW8-M2203-01X SCREW BALL,X AXIS 2 (2003/6/5) OK A
3 KW8-M2204-00X X-AXIS GUIDE SET 2 A
4 KW8-M2205-00X HOUSING 1,BRG. 2 /
5 KW8-M2206-00X HOUSING 2,BRG. 2 /
6 KW8-M2207-00X PLATE PRESSURE 2 /
7 KW8-M2208-00X HOUSING,TENSION 2 /
8 KW8-M2209-00X COLLAR 2 /
9 KW8-M2210-00X OIL SEAL 2 A
10 KW8-M2213-00X HOLDER,HEAD 2 /
11 KW8-M2218-00X BRACKET,GUIDE 2 /
12 KW8-M2218-A0X PLATE B 2 /
13 KW8-M2218-B0X BAR 1 4 /
14 KW8-M2267-A0X CABLE,DUCT 2 (2004/3/31) OK B
15 KW8-M220A-00X TAPE, X DUCT 2 /
16 KW8-M220B-00X TAPE 2, X DUCT 2 /
17 KW8-M220C-00X TAPE 3,X DUCT 2 /
18 KV7-M2266-00X PLATE,NUT 2 /
19 KV7-M2268-00X BRACKET 1,TAPE 2 /
20 KV7-M2269-00X BRACKET 2,TAPE 2 /
21 KW8-M2220-00X COUPLING,X-AXIS 2 LCD /
22 KW8-M2223-00X BRACKET SENSOR 2 /
23 KW8-M2224-00X DOG ORIGIN 2 /
24 KW8-M2225-00X DOG SECOND 4 /
25 KW8-M2227-00X BEARING 3 (2001/1/29) OK A
26 KW8-M2226-00X SUPPORT UNIT 2 A
27 KG2-M2228-00X NUT LOCK 4 A
28 90K5A-9B10M0 AC SERVO MOTOR 2 (2001/1/25) OK B
29 KM0-M655A-00X SENSOR 1-1,ASSY 2 B
30 KM0-M655E-00X SENSOR 1-2,ASSY 2 B
31 KW8-M2241-00X ACCUMULATAOR 2 /
32 KW8-M2243-00X BUSH,ACCUMULATAOR 4 /
33 KW8-M2244-00X BRACKET,ACCUMULATAOR 2 /
34 KW8-M2236-00X PLATE 1 DAMPER 4 (2000/8/11) OK /
35 KW8-M2237-00X PLATE 2 DAMPER 4 (2000/8/11) OK /
36 KV7-M2651-00X DAMPER,STOPPER 4 (2001/5/10) OK /
37 90990-18J012 PIN,PARALLEL 4 (2007/11/30) OK /
38 KW8-M2245-00X SPRING 8 /
39 KW8-M2229-00X PLATE UNDER 2 /
40 KW8-M2233-00X TAPE, X-AXIS 2 /
41 KW8-M2202-01X FRAME 2,X AXIS 2 (2001/8/21) OK /
42 KW8-M2215-00X BRACKET,HARNESS 2 /
43 KM5-M2221-00X PLATE 1,JOINT 3 /
44 KG2-M2222-00X PLATE 2 JOINT 6 /
45 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) OK /
46 KW8-M2236-10X PLATE 1 , DAMPER 4 (2000/8/11) /
47 KW8-M2237-10X PLATE 2 , DAMPER 4 (2000/8/11) /
48 KW8-M2297-00X PLATE , FAN 1 (2000/9/25) /
49 KW8-M6185-00X FAN MOTOR ASSY 1 (2000/9/25) /
51 KW8-M4187-00X FAN GUARD 2 (2000/9/25) /
52 91317-04040 BOLT HEX. SOCKET HEAD 4 (2000/9/25) /
53 95302-04700 NUT HEXAGON 4 (2006/1/16) OK /
3
4
Y-axis
Moving-axis
KW8-080403
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KW8-M2677-S0X Y AXIS GUIDE SET 2 A
2 KW8-M2601-00X FRAME 1,Y AXIS 4 /
3 KW8-M2603-00X SCREW BALL Y-AXIS 2 A
4 KG2-M2604-00X SUPPORT UNIT 2 A
5 KG2-M2606-00X DAMPER 8 /
6 KW8-M2607-00X HOLDER,MOTOR Y AXIS 2 /
7 KW8-M2608-00X HOLDER 1 BRG. 2 /
8 KW8-M2609-00X HOLDER,NUT 2 /
9 KM5-M2611-00X COUPLING,Y-AXIS 2 LCD /
10 KW8-M2616-00X DOG, ORIGIN 2 /
11 KW8-M2617-00X DOG SEC LIMIT Y AXIS 2 /
12
KW8-M2618-01X BRACKET,SENSOR 1 R>L (2000/10/24) OK /
KW8-M2619-01X BRACKET,SENSOR 1 L>R (2000/10/24) OK /
14 KW8-M260A-02X TAPE,Y DUCT CABLE 4 /
15 KW8-M2621-00X GUIDE,HARNESS 2 B
16 KW8-M2622-00X BRACKET 1,DUCT 4 /
17 KH1-M655A-10X SENSOR 1-1,ASSY 2 B
18 KH1-M655E-10X SENSOR 1-2,ASSY 2 B
19 90K56-8A174Y AC SERVO MOTOR 2 B
20 KW8-M2624-00X TAPE, Y AXIS 4 /
21 KV7-M226B-00X PLATE 4 /
22
KW8-M2605-00X PLATE 3 1 Front S.T.D /
KW8-M2606-00X PLATE 4 1 Rear S.T.D /
1
5

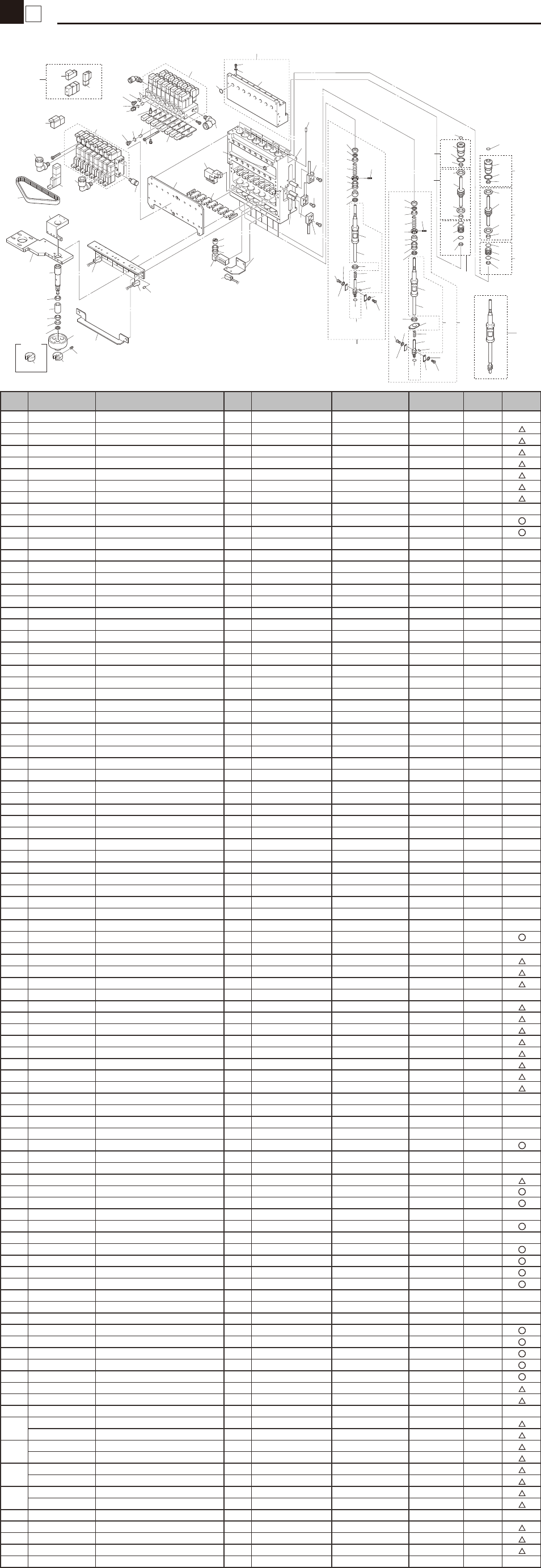

Head (ST)
5 Head
KW8-080227
3
53
57
86
85
66
62
84
60
44
31
37
50
63
46
45
33
53
52
54
55
32
43
41
42
42
78
58
35
36
59
56
38
39
40
29
51
65
67
65
34
1
5
8
4
3
53
2
4
6
8
7
49
49
47
48
48
8
6
8
7
49
49
47
27
26
25
23
24
21
20
22
19
76
16
9
17
14
11
11
12
12
13
13
15
10
27
26
25
23
24
21
20
22
18
76
16
9
17
14
11
11
12
12
13
92
92
93
94
87
88
89
89
90
90
13
15
28
10
69
64
71
68
91
75
72
74
71
73
72
74
70
61
77
77
95
92
30
30
OLD
83
79
81
80
82
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M7101-00X HOUSING HEAD 1 /
2 KV8-M7103-50X PLUG 2 A
3 90200-01J125 O-RING 1 S12.5 (2001/11/22) OK A
4 90990-22J003 PACKING 1 MYR-6 (2002/1/21) OK E
5 KV8-M7103-10X PLUG 4 A
6 KV8-M7104-00X PISTON 8 A
7 90990-22J006 PACKING 1 LO43165 (2002/1/21) OK E
8 90990-22J002 PACKING 2 MYA-10A (2002/1/21) OK E
9 KV8-M71RJ-00X COLLAR,BRG. 4 /
10 90990-17J003 O-RING 4 (2001/11/22) OK A
11 KG7-M7137-A0X LEAF SPRING 8 E
12 KG7-M7169-00X SCREW 8 /
13 90990-28J002 WASHER PLAIN 2 (2003/3/28) OK /
14 90990-19J002 NEEDLE PIN 1 (2001/12/25) OK /
15 KM1-M7106-90X SPG. NOZZLE 4 /
16 KV8-M7106-00X BALL SPLINE 4 /
17 KV8-M7106-70X SHAFT,NOZZLE 4 /
18 KV8-M7109-00X COLLAR 1,HEAD 4 /
19 KV8-M7110-00X COLLAR 2,HEAD 4 /
20 90933-03J128 BEARING 2 MR128ZZS (2001/7/6) OK /
21 90933-03J128 BEARING 2 MR128ZZS (2001/7/6) OK /
22 KM1-M7109-00X PULLEY 8 /
23 KV8-M7154-00X SPG.RETURN 4 /
24 KV8-M7108-00X NUT 8 /
25 90933-02J604 BEARING 1 604ZZ /
26 90440-01J030 CIRCLIP 8 (2001/12/28) OK /
27 KU1-M7152-00X WASHER 1 THURUST 8 /
28 KV8-M71R7-50X PLATE,BEARING 4 /
29 KV8-M7111-00X PULLY,POST 1 /
30-1 KV8-M7113-00X RING,DOG 1 /
30-2 KV8-M7113-01X RING,DOG 1 Y3 (2000/1/24) NG /
31 KV8-M7115-00X SHAFT 1,TENSION 2 /
32 KV8-M7116-00X PULLY 2 1 /
33 KV8-M7117-00X BLOCK,ADJUST 1 /
34 KV8-M7119-00X BLOCK,ADJUST 1 /
35 KV8-M7124-00X PLATE,R SENSOR 1 /
36 KV8-M7131-01X BRACKET,Z SENSOR 1 (2001/1/16) OK /
37 KV8-M7166-00X PLATE,VALVE 1 /
38 KV8-M71V4-00X BRACKET,MOTOR 1 /
39 KV8-M71V5-00X HOLDER,PULLEY 1 /
40 KV8-M71Y1-00X COLLAR 1,PULLEY 1 /
41 KV8-M71Y2-00X COLLAR 2,PULLEY 1 /
42 KV8-M71Y3-00X BEARING 2 /
43 99009-10800 CIRCLIP 1 ISTW-10 /
44 KV8-M71Y9-50X BODY,BRACKET 1 /
45 90990-22J005 PACKING 8 (2002/2/1) OK A
46 91317-05006 BOLT HEX.SOCKET HEAD 8 (2002/1/8) OK /
47 KM1-M7105-00X PLUG 2 8 A
48 90990-22J003 PACKING 1 MYR-6 (2002/1/21) OK E
49 90200-01J125 O-RING 2 S12.5 (2001/11/22) OK A
50 KM1-M7112-01X STOPPER 1 /
51 KM1-M7138-00X BELT HEAD 2 B
52 90933-03J128 BRG 2 MF128ZZS (2001/7/6) OK A
53 90990-17J007 0-RING 12 5X1.0 (2001/12/25) OK A
54 90933-03J128 BEARING 2 MR128ZZS (2001/7/6) OK A
55 KV8-M653F-A0X SENSOR,3 4 E2S-Q22 B
56 KV8-M653G-A0X SENSOR,3 4 E2S-Q22 B
57 KV8-M7160-C1X SENSOR,HEAD 3 SAFETY (2004/3/18) OK B
58 KV7-M653F-A0X SENSOR,HEAD 1 R ORG (2003/1/6) OK B
59 90990-20J001 PIN DOWEL 6 4X6 (2002/1/9) OK /
60 99480-04008 PIN,PARALLEL 8 X1 (2000/10/31) OK /
61 91317-03055 BOLT HEX SOCKET HEAD 7 M3X55 (2003/7/15) OK /
62 90115-02J008 BOLT HEX.SOCKET HEAD 8 (2002/8/21) /
63 $KM-05 MUFFLER 6 A
64 $SLH8-01 JOINT 2 /
65 $SLH6-01 JOINT 2 /
66 90990-22J001 PACKING 16 (2002/1/21) OK E
67 KV8-M7162-00X SOLENOID VALVE 1 UNIT C
68 KV8-M7163-01X EJECTER,RESIN X1 (1999/10/28) OK C
69 KV8-M71VB-00X COVER,SENSOR 1 /
70 KM1-M4592-13X VAC SENSOR BOARD ASSY 8 (2005/4/19) OK A
71 KM5-M7174-F0X FILTER CAP 2 /
72 90990-17J008 O-RING 2 (2001/11/22) OK A
73 90990-17J010 O-RING 6 (2001/12/6) OK A
74 K46-M8527-C0X FILTER 8 A
75 KM5-M7174-G0X FILTER CAP 6 A
76 KV8-M7106-81X SPACER 1 (2005/5/26) OK /
77 92A08-03303 SET SCREW 2 M3X3 (2001/8/30) /
78 92A08-04305 SET SCREW 24 M4X5 /
79 KM5-M7174-A2X EJECTOR UNIT 8 No.80+No.81+UNIT C
80 KM1-M7163-21X VALVE 8 BLOW C
81 KM1-M7163-30X VALVE 8 OPERATE C
82 KV8-M7162-10X VALVE 8 UP / DOWN C
83 KV8-M7162-20X VALVE 8 SLOW C
84 KV8-M7160-A2X SENSOR,H. 1 N-UP (2005/7/21) OK B
85 KV8-M7160-B2X SENSOR,H. 1 N-DOWN (2005/7/21) OK B
86 KV8-M71VS-00X COLLAR SENSOR 12 /
87
KV8-M7103-B0X PLUG ASSY 4 E
KGB-M8C01-10X PLUG ASSY SET 4 1 4 SET of parts numbers (2013/4/9) OK E
88
KV8-M7103-C0X PLUG ASSY 4 E
KGB-M8C01-20X PLUG ASSY SET 4 S 1 4 SET of parts numbers (2013/4/9) OK E
89
KV8-M7104-A0X PISTON ASSY 8 E
KGB-M8C00-00X PISTON ASSY SET 8 1 8 SET of parts numbers (2013/4/9) OK E
90
KM1-M7105-A0X PLUG 2 ASSY 8 E
KGB-M8C02-00X PLUG ASSY 2 SET 8 1 8 SET of parts numbers (2013/4/9) OK E
91 KV8-M71Y9-B0X BODY,BRACKET ASSY 1 /
92 KV8-M71S0-50X S.T.D SHAFT 3 SPARE 1 C
93 KV8-M712S-A0X S.T.D SHAFT 1 SPARE 1 C
94 KV8-M713S-A0X S.T.D SHAFT 2 SPARE 1 C
95 KM5-M7174-H0X SPACER 8 /
