6 Repairing the X Feeder modules
6.6 Rocker
70 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

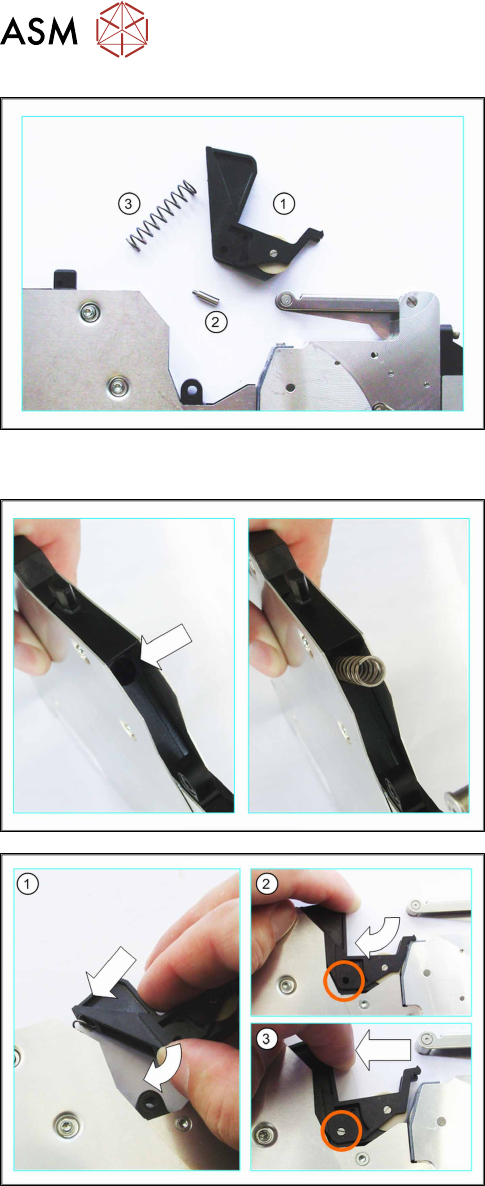

Example: rocker 8mm
(1) Rocker
(2) Bearing shaft
(3) Spring
6.6.2.2 Fitting the Rocker (4 - 88 mm)
► Insert the spring as far as the stop into the hole
marked in the diagram.
Attention:
Wide feeder modules sometimes have several holes
because of the spacers used. Insert the spring in the
hole which would be directly opposite the recess in the
rocker when installed.
► (1) Position the rocker with the recess onto the
spring.
► Press the rocker into the spring.
► Insert the rocker at the side.
► (2) Position the rocker so that you can see the
open hole for the bearing shaft through the
rocker.
► (3) Press the rocker into the spring, to relieve the
bearing shaft thread during fitting.
► Insert the bearing shaft into the hole provided
and turn to tighten.
Attention:
Carefully fasten the bearing shaft, not too firmly, so
that the thread is not damaged.
► Now release the rocker.
6 Repairing the X Feeder modules
6.6 Rocker
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 71

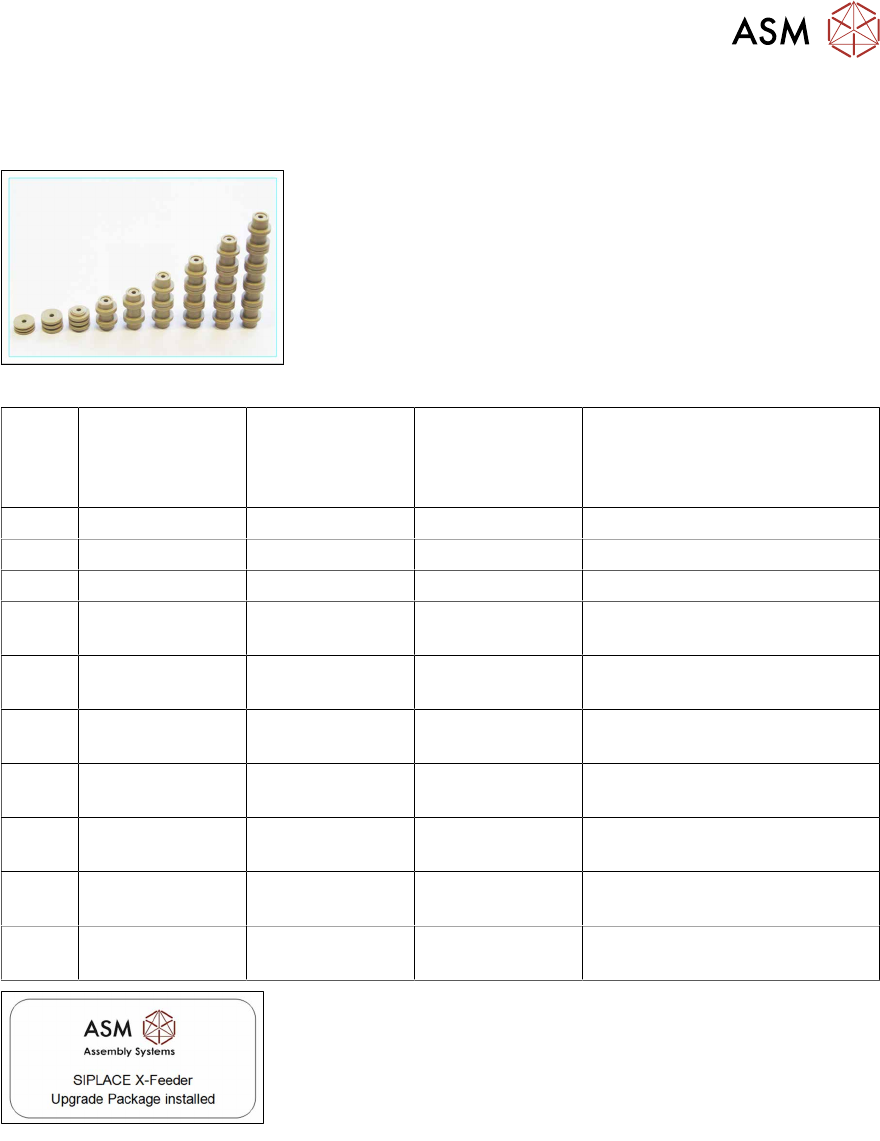

6.6.3 Tamp Wheel for Rocker
Required spare parts
Example: tamp wheel for rocker from left to right 8-88mm
Fe
eder
mod-
ule
Item no.
Module
Version <= -06
Item no.
Module
With upgrade
kit
Item no.
Module
Version >= -07
Designation
4 mm 03087915-xx 03087915-xx 03087915-xx Tamp wheel rocker /X4
8 mm 03041017-xx 03041017-xx 03041017-xx Tamp wheel rocker /X8
12 mm 03041750-xx 03041750-xx 03041750-xx Tamp wheel rocker /X12
16 mm 03041749-xx 03117048-xx
03117039-xx
03117048-xx Tamp wheel rocker /X16
24 mm 03041967-xx 03117050-xx
03117040-xx
03117050-xx Tamp wheel rocker /X24
32 mm 03042447-xx 03117051-xx
03117041-xx
03117051-xx Tamp wheel rocker /X32
44 mm 03042487-xx 03117053-xx
03117043-xx
03117053-xx Tamp wheel rocker /X44
56 mm 03043385-xx 03117054-xx
03117044-xx
03117054-xx Tamp wheel rocker /X56
72 mm 03043403-xx 03117061-xx
03117045-xx
03117061-xx Tamp wheel rocker /X72
88 mm 03042225-xx 03117062-xx
03117046-xx
03117062-xx Tamp wheel rocker /X88
Modules with upgrade kit:
Feeder modules which contain an upgrade kit (marked with the
label below), can have the module version -07 tamp wheel for
rocker fitted as a spare part (item no.).
When replacing this assembly, you must also replace the tamp
wheel on the drive side opposite with a module -07 version.
Required tools
●
Flat bladed (slotted) screwdriver
●
Split pin punch
6 Repairing the X Feeder modules
6.6 Rocker
72 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

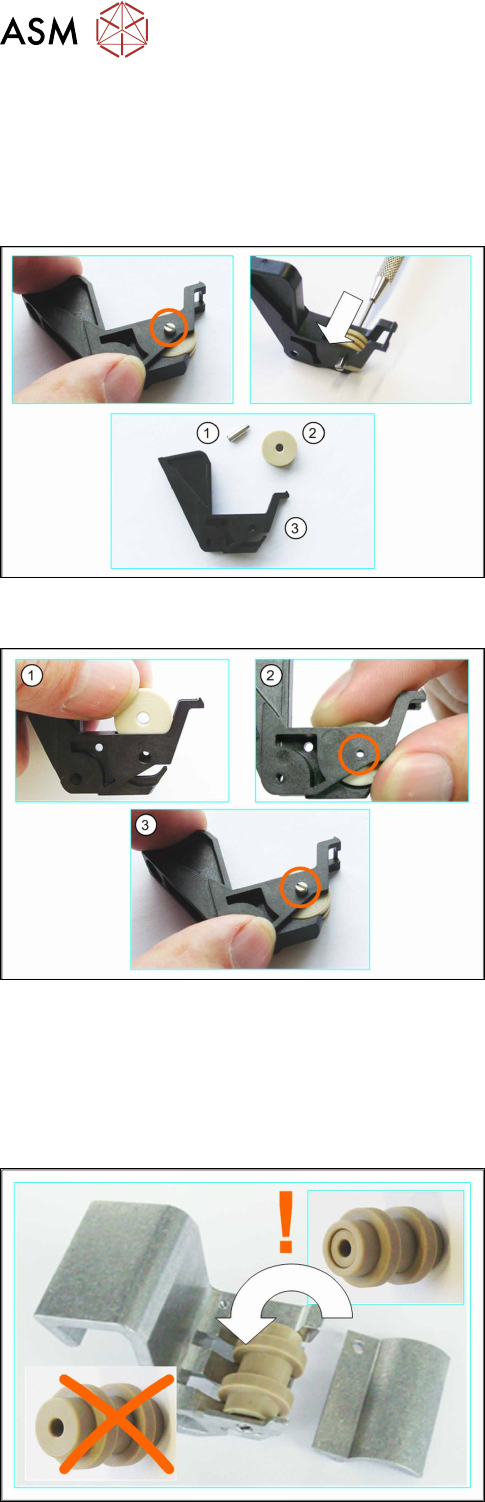

6.6.3.1 Removing the Tamp Wheel for the Rocker (4 - 88 mm)
► First remove the rocker (see 6.6.2.1 "Removing the Rocker (4 - 88 mm)" [}69]).
► On 4mm X feeder modules only:
Remove the stripping device (see 6.6.1.1 "Removing the Rocker Stripping Device" [}67]).
► Loosen the bearing shaft marked in the diagram.
The shaft thread ends after several millimeters.
► Press the bearing shaft sideways out of the
rocker, with a split pin punch.
► Remove the tamp wheel from the rocker.
(1) Bearing shaft
(2) Plain tamp wheel
(3) Rocker
6.6.3.2 Fitting the Tamp Wheel for the Rocker (4 - 16 mm)
► Insert the plain tamp wheel from above into the
rocker.
► Position the tamp wheel so that you can see
through the hole in the rocker and tamp wheel.
► Insert the bearing shaft into the opening provided
and turn to tighten the shaft.
Attention:
Carefully fasten the bearing shaft, not too firmly, so
that the thread is not damaged.
► Make sure that the tamp wheel can be moved
easily in the rocker.
► On 4mm X feeder modules only:
Fit the stripping device (see 6.6.1.2 "Fitting the Rocker Stripping Device" [}68]).
► Now fit the rocker (see 6.6.2.2 "Fitting the Rocker (4 - 88 mm)" [}70]).
6.6.3.3 Fitting the Tamp Wheel for the Rocker (24 - 88 mm)
The plain tamp wheel has a recess at one end (see
top right diagram) and is flat at the other end (see bot-
tom left diagram).
When inserting the tamp wheel, make sure that the
end with the recess is on the side which will later ac-
commodate the bearing shaft.
► Insert the plain tamp wheel from above into the
rocker, as marked in the diagram.
