6 Repairing the X Feeder modules
6.6 Rocker
68 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017
6.6.1.2 Fitting the Rocker Stripping Device
► Place the stripping device on the side of the
rocker as indicated.
Make sure that the longer bracket is on top.
► Align the stripping device straightly and screw it
to the rocker at the top and bottom.
► Fasten the rocker (see 6.6.2.2 "Fitting the Rocker
(4 - 88 mm)" [}70]).
6.6.2 Rocker Assembly
Required spare parts
Example: rocker 8mm (left), rocker 24mm (right)
6 Repairing the X Feeder modules
6.6 Rocker
Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017 69
Feeder
module
Item no. Module
Version <= -06
Item no. Module
with upgrade kit
Item no. Module
Version >= -07
Designation
4 mm 03087914-xx 03087914-xx 03087914-xx Rocker assembly, /X4
8 mm 03042320-xx 03042320-xx 03042320-xx Rocker assembly, /X8
12 mm 03042350-xx 03042350-xx 03042350-xx Rocker assembly, /X12
16 mm 03042354-xx 03097025-xx
03117039-xx
03097025-xx Rocker assembly, /X16
24 mm 03041968-xx 03085748-xx
03117040-xx
03085748-xx Rocker assembly, /X24
32 mm 03042445-xx 03085757-xx
03117041-xx
03085757-xx Rocker assembly, /X32
44 mm 03042485-xx 03085142-xx
03117043-xx
03085142-xx Rocker assembly, /X44
56 mm 03043388-xx 03085767-xx
03117044-xx
03085767-xx Rocker assembly, /X56
72 mm 03043400-xx 03085777-xx
03117045-xx
03085777-xx Rocker assembly, /X72
88 mm 03042228-xx 03085786-xx
03117046-xx
03085786-xx Rocker assembly, /X88

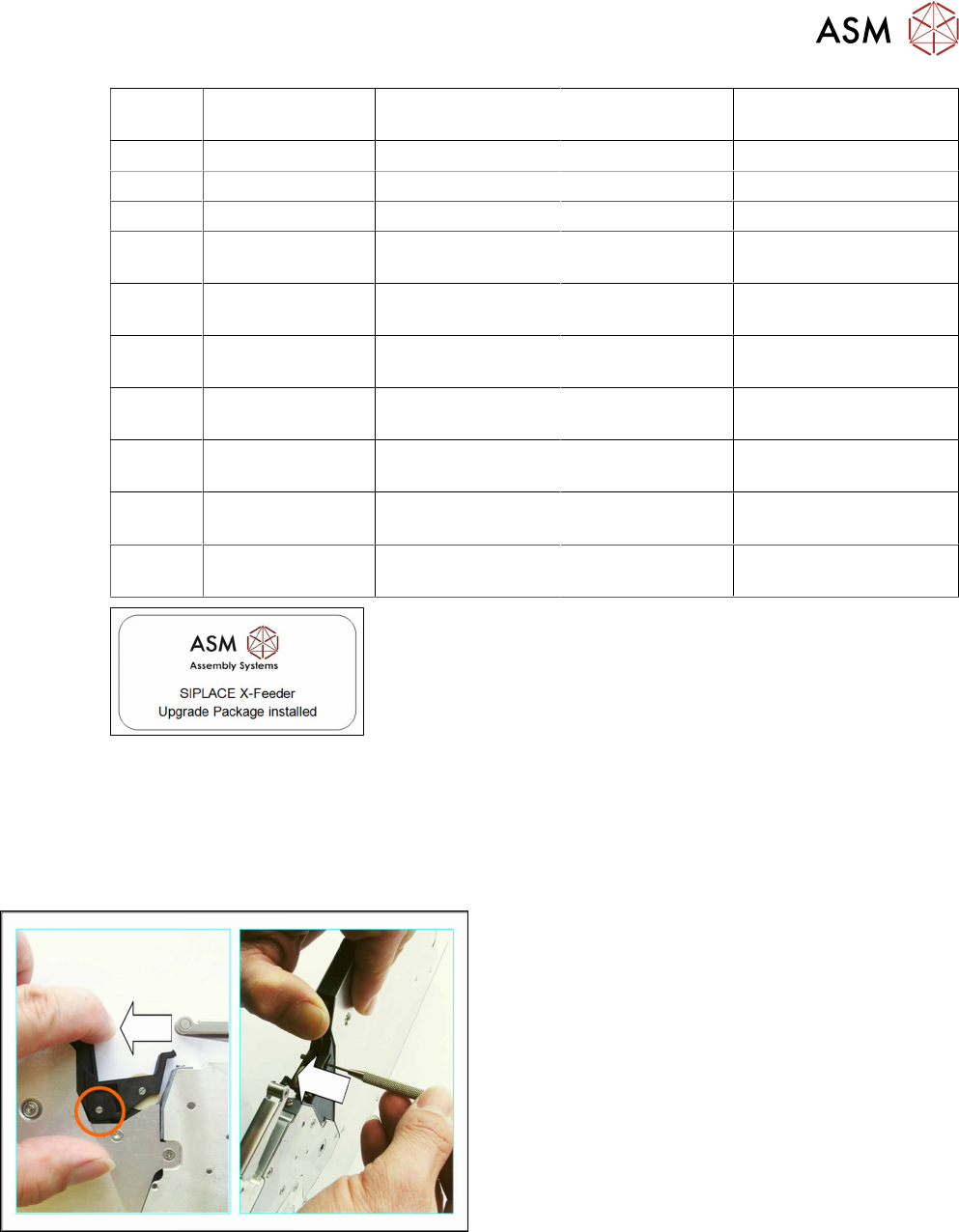

Modules with upgrade kit:
Feeder modules which contain an upgrade kit (marked with the
label below), can have the module version -07 rocker fitted as a
spare part (item no.).
When replacing this assembly, you must also replace the tamp
wheel on the drive side opposite with a module -07 version.
Required tools
●
Flat bladed (slotted) screwdriver
●
Split pin punch size 1.4
6.6.2.1 Removing the Rocker (4 - 88 mm)
► Carefully place the feeder module down on its left
side.
► Press the rocker as far as the left stop, into the
spring, to relieve the bearing shaft. If tension is
not taken off the bearing shaft, the shaft thread
could be damaged during loosening.
► Loosen the bearing shaft marked in the diagram.
The shaft thread ends after several millimeters.
► Stand the feeder module up.
► Press the bearing shaft sideways out of the
rocker, with a split pin punch.
► Slowly release the rocker.
You can now remove the rocker.
6 Repairing the X Feeder modules
6.6 Rocker
70 Service Manual SIPLACE X-Feeder 4 - 88 mm 11/2017

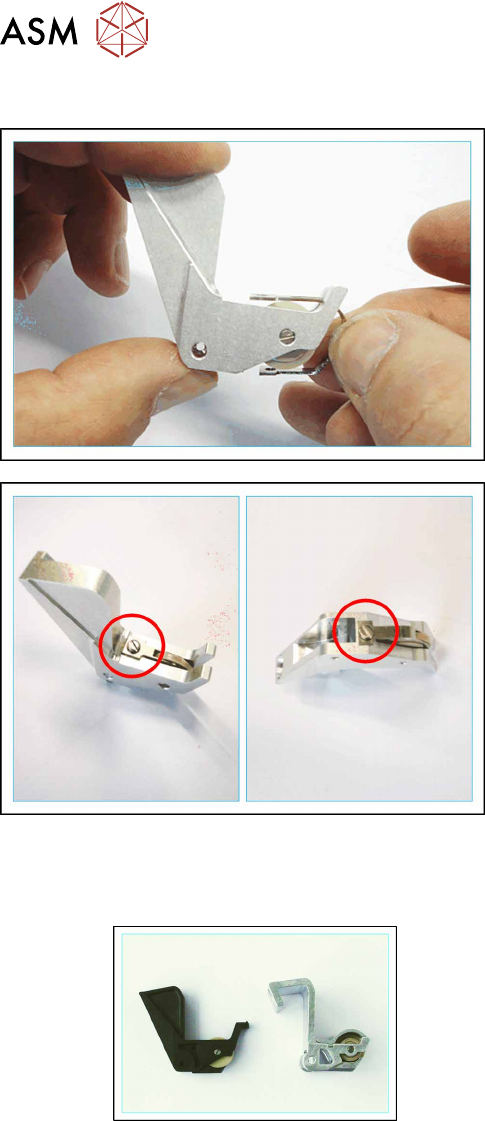

Example: rocker 8mm
(1) Rocker
(2) Bearing shaft
(3) Spring
6.6.2.2 Fitting the Rocker (4 - 88 mm)
► Insert the spring as far as the stop into the hole
marked in the diagram.
Attention:
Wide feeder modules sometimes have several holes
because of the spacers used. Insert the spring in the
hole which would be directly opposite the recess in the
rocker when installed.
► (1) Position the rocker with the recess onto the
spring.
► Press the rocker into the spring.
► Insert the rocker at the side.
► (2) Position the rocker so that you can see the
open hole for the bearing shaft through the
rocker.
► (3) Press the rocker into the spring, to relieve the
bearing shaft thread during fitting.
► Insert the bearing shaft into the hole provided
and turn to tighten.
Attention:
Carefully fasten the bearing shaft, not too firmly, so
that the thread is not damaged.
► Now release the rocker.
