0409-002 54 テープフィーダ T APE FEEDER GT -44560 GT -44560 Fig. Q-1 フレーム部 Frame Section 19 28 28 9 37 37 26 26 28 28 46 1 1 30 . 40 . 42 30 . 40 . 42 14 10 13 32 43 41 29 24 1 6 See Fig.Q-5 Key No.405 64 63 60 67 67 67 8 59 23…
0601-003
53

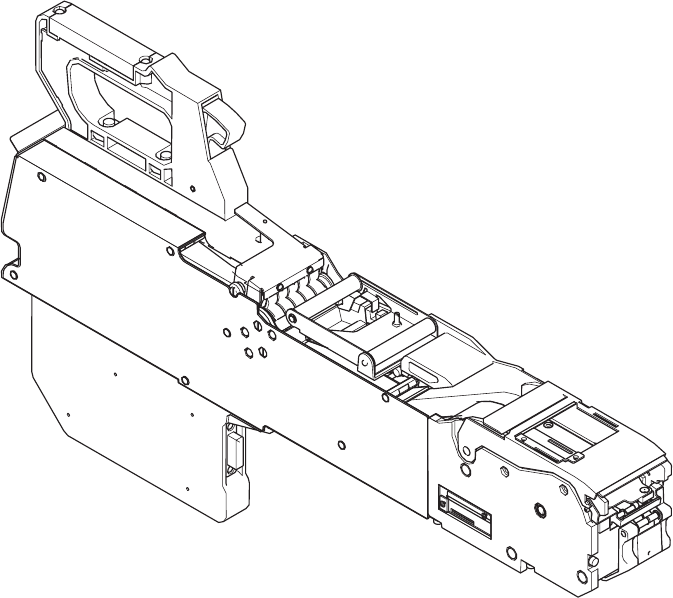

Fig. Q
テープフィーダ
TAPE FEEDER
GT-44560 GT-44560
0409-002
54
テープフィーダ
TAPE FEEDER
GT-44560 GT-44560

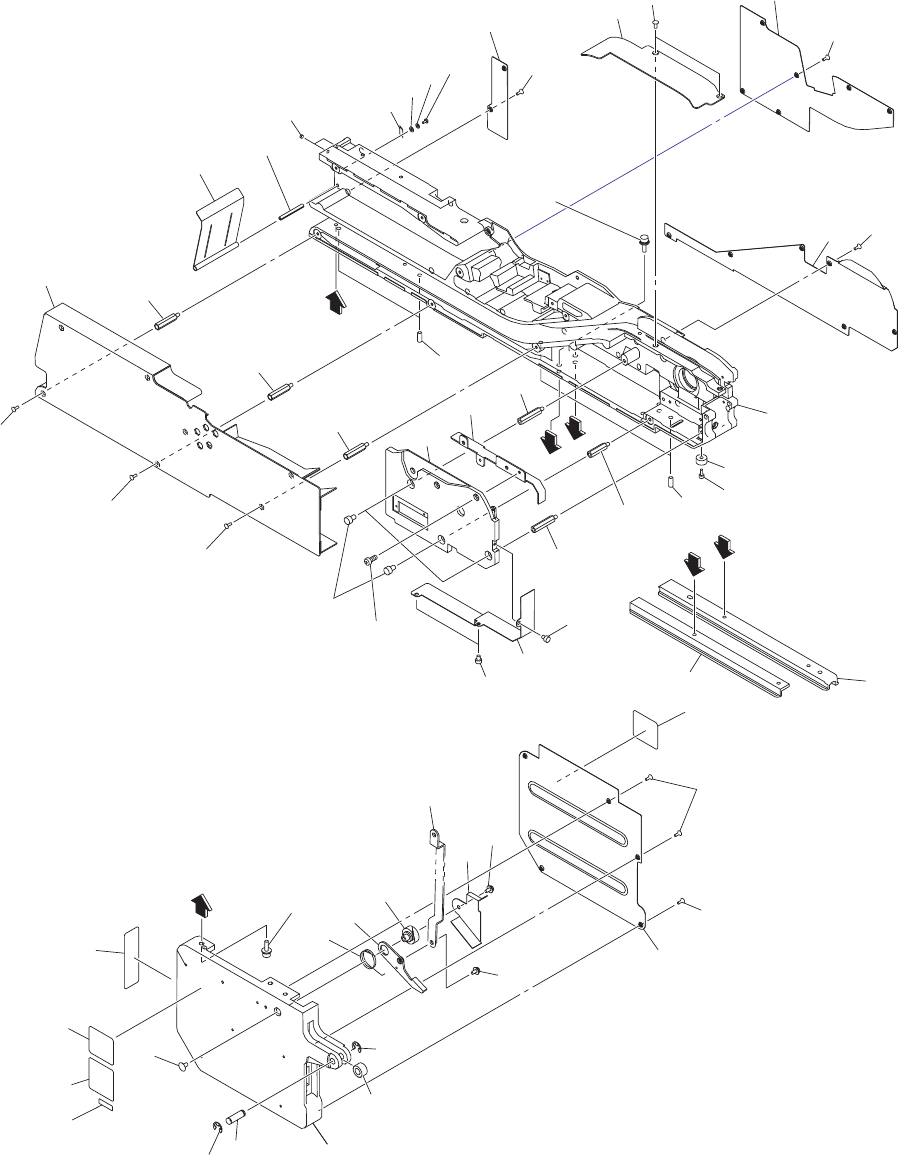

Fig. Q-1
フレーム部
Frame Section
19
28
28
9
37
37
26
26
28
28
46
11
30
.
40
.
42
30
.
40
.
42
14
10
13
32
43
41
29
24
1
6
See Fig.Q-5
Key No.405
64
63
60
67
67
67
8
59
23
55
56
60
58
58
2
54
53
5
4
3
28
33
20
20
27
46
47
74
25
28
28
28
A
A
B
C
B
C
12
71
69
68
73
1012-007
55
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
Q-1
1 6301304823 FRAME 1 804Q--110-001 210B3758
2 6301532530 BLOCK(KIBAN) 1
804Q--110-002 211G5104
3 6301279046 COVER(LA) 1
804Q--110-003 211A8747
4 6301279053 COVER(LB) 1
804Q--110-004 211A8748
5 6301279060 COVER(LC) 1
804Q--110-005 211A8749
6 6301304830 COVER(RA) 1
804Q--110-006 211A9056
8 6301468976 COVER(KIBAN) 1
804Q--110-008 211AA873
9 6301366463 SLIDE(BASE) 1
804Q--110-009 212C0385
10 6301266084 ASSY,LEVER(KAIJYO) 1
804Q--110-010 016S0689
11 6301265827 PIN,HINGE 1
804Q--110-011 216D0448
12 6301265834 ROLLER 1
804Q--110-012 213C0206
13 6301265841 PIN,GUIDE(ROLLER) 1
804Q--110-013 216F0879
14 6301646121 SPRING,TORSION 1
804Q--110-014 222P0207
19 6301274867 COVER(HAISEN) 1
804Q--110-019 211A8726
20 6301265926 PIN,LOCATE(TAPE) 4
804Q--110-020 216E1484
23 6301621784 COVER(FUTA) 1
804Q--110-023 211AC671
24 6301287577 MECH PARTS(MAGNET) 2
804Q--110-024 226J1958
25 6301265902 MECH PARTS(CUTTER) 1
804Q--110-025 226J1909
26 6301274546 SCR PAN+SW+W 3X6 4
804Q--110-026 221D0262
27 6300347906 MECH PARTS(RUBBER LEGS) 1 804Q--110-027 226J0249
28 4110335700 SCR FLT 2.5X6 26
804Q--110-028 221D0261
29 6300008494 BOLT,HEX-SCT 1
804Q--110-029 221A0104
30 6300007633 BOLT,HEX-SCT 6
804Q--110-030 221A0018
32 4111407208 SCR FLT 4X6 1
804Q--110-032 221D0224
33 4111255403 SCR PAN 2X4 1
804Q--110-033 221E0482
37 4110010003 RING E 4 2
804Q--110-037 221K0097
40 4111412905 WASHER SPR 4 6
804Q--110-040 221H0284
41 4111412509 WASHER SPR 2 1
804Q--110-041 221H0276
42 4111414008 WASHER V 4X9X0.8 6
804Q--110-042 221H0315
43 4111413605 WASHER V 2X5X0.3 1
804Q--110-043 221H0307
46 0804000G NAME PLATE,NOTICE 2
804Q--110-046 0804000G
47 0804000F NAME PLATE,INDEX 1
804Q--110-047 0804000F
53 6301279121 BLOCK 1
804Q--110-053 211G3564
54 6301621777 ASSY,COVER 1
804Q--110-054 011A0022
55 6301304878 COVER(RC) 1
804Q--110-055 211A9059
56 6301304885 COVER(RD) 1
804Q--110-056 211A9060
58 6301304908 BOLT 2
804Q--110-058 221E0310
59 6301304915 BOLT 1
804Q--110-059 221E0311
60 6300007497 BOLT,HEX-SCT 3
804Q--110-060 221A0004
63 6300007602 BOLT,HEX-SCT 3
804Q--110-063 221A0015
64 4110022600 SCR FLT 3X6 2
804Q--110-064 221D0216
67 6301315249 STAY 7
804Q--110-067 211J1248
68 0804000M MECH PARTS 1
804Q--110-068 0804000M
69 6301332857 COVER 1
804Q--110-069 211A9426
71 6301330792 SPRING PIN 1
804Q--110-071 221J0063
GT-44560
