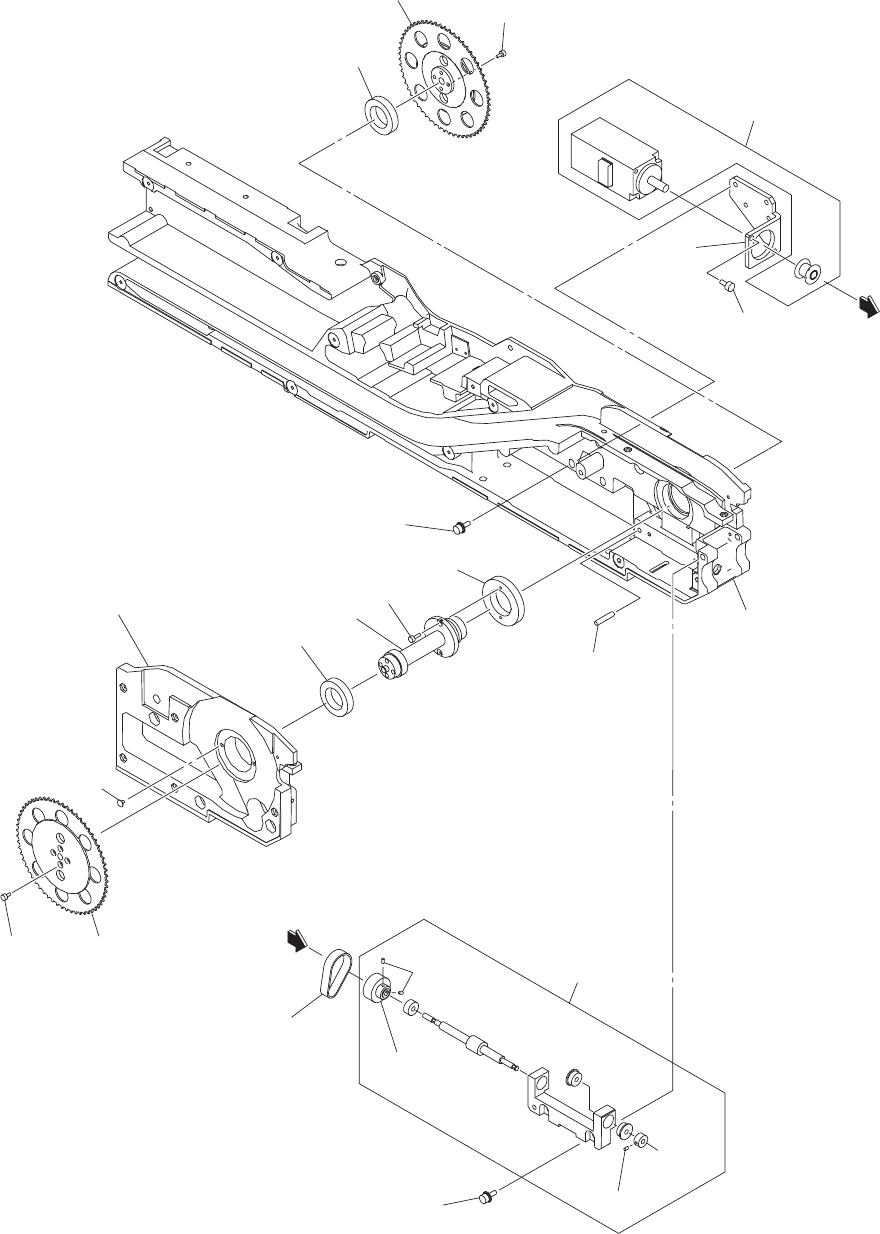

0909-005 76 テープフィーダ T APE FEEDER GT -72000 GT -72000 Fig. T -2 テープ駆動部 T ape Driving Section 101-03 121 101 101-06 101-07 101-07 129 130 126 . . D 124 122 1 16 106 104 See Fig.T -1 Key No.52 103 125 133 134 135 . . 132 13…
MEMO
0909-005
76
テープフィーダ
TAPE FEEDER
GT-72000 GT-72000
Fig.
T-2
テープ駆動部
Tape Driving Section
101-03
121
101
101-06
101-07
101-07
129
130
126
.
.
D
124
122
1
16
106
104
See Fig.T-1
Key No.52
103
125
133
134
135
.
.
132
131
116
125
104
See Fig.T-1
Key No.1
D
129
130
.
.
127
139
1012-006
77
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
T-2
101 6301555652 ASSY,GEAR((WORM)) 1 804T--110-101 023E0017
101 -03 6301443935 COLLAR(BEARING) 1
216A1359
101 -06 6301443942 PULLEY,TIMING 1
223Q0643
101 -07 6301268248 SET SCREW(SET SCREW) 3 221C0100
103
6301484556 GEAR 1
804T--110-103 223E0451
104 6301556246 ASSY,SPROCKET 2 804T--110-104 023S0070
106 6301490823 PIN,HINGE 1
804T--110-106 216D0544
116 6301302508 BEARING,RADIAL 2
804T--110-116 222D0403
121 6301279190 BELT,TIMING 1
804T--110-121 223L0273
122 6301265988 PIN,LOCATE 1
804T--110-122 216E1485
124 6300007503 BOLT,HEX-SCT 2
804T--110-124 221A0005
125 6300007510 BOLT,HEX-SCT 8
804T--110-125 221A0006
126 6300007527 BOLT,HEX-SCT 2
804T--110-126 221A0007
127 6301330310 MACHINE SCREW 2
804T--110-127 221D0175
129 4111412806 WASHER SPR 3 4
804T--110-129 221H0281
130 4111413902 WASHER V 3X7X0.5 4 804T--110-130 221H0312
131 6301279244 BRACKET 1
804T--110-131 211F8483
132 6300701906 BOLT,HEX-SCT(BUTTON HEAD) 2 M3X8BOTTAN 221A0206
133 6300007619 BOLT,HEX-SCT 2
M4X8 221A0016
134 4111412905 WASHER SPR 4 2
804T--110-134 221H0284
135 4111414008 WASHER V 4X9X0.8 2 804T--110-135 221H0315
139 6301549798 ASSY,MOTOR,AC-SERVO 1 M01 804T--110-509 0M150013
GT-72000
