3 Upgrade to the 604.xx software version
When upgrading to the 604.xx software version, please consider following:

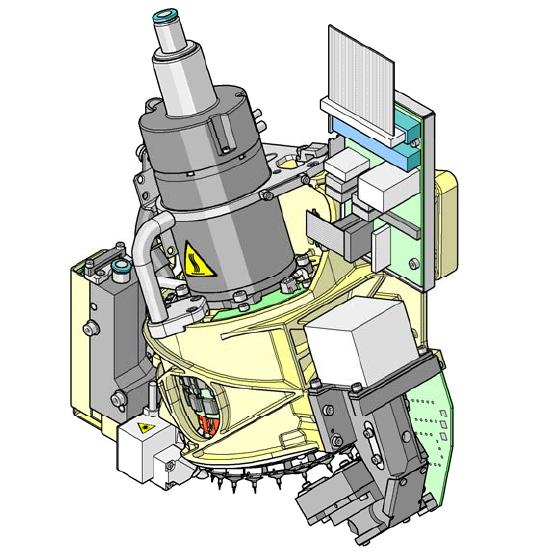

- Fix the temperature warning labels (03031926-01) at the C&P20 head (see the figure).
- After an upgrade to the 604.xx software version, calibrate the heads of the D1, D2 and D4 machines.
The temperature compensation is activated for these machines.
- After installing the 604 software version, please update the X feeder eSW version.
8 of 48
Installation Manual, Station Software Version 604.01 Issue 04/2007
3.1 Upgrade packages and components for upgrading from Version 603.x
Caution:
For upgrading to the software version 604.x on the SIMATIC BoxPC 627, please consider the
installation manual “Windows Embedded XP operating system for the MC German and
English” (00195327-xx). The standard media package (03054699-xx) is required.
It is not necessary to install the Windows embedded XP operating system for the other
machines.
No further upgrade packages or components are required.
3.2 Upgrade packages and components for upgrading from Version 601.x
or 602.x
Caution:
For upgrading to the software version 604.x, please consider the installation manual “Windows
Embedded XP operating system for the MC German and English” (00195327-xx).
The standard media package (03054699-xx) is required.
The following upgrade packages for SIPLACE X4, X2 and X3 machines with CPU 076 are required:
- Upgrade package for SIPLACE X4 with CPU 076 Æ Computer upgrade to CPU 086
Item number: 03029123S03
- Upgrade package for SIPLACE X2 and X3 with CPU 076 Æ 128 MB memory expansion
Item number: 03051831
9 of 48
Installation Manual, Station Software Version 604.01 Issue 04/2007
4 Requirements
4.1 SIPLACE X series and D series software components
4.1.1 Station
The station uses the following operating system configuration:
• Station computer: Microsoft Windows XP Professional
(including Service Pack 2 and most recent hotfixes)
• Machine controller: Microsoft Windows embedded XP (SP2)
4.1.2 Machine components
The following versions of other machine components are required for the station software to function
correctly:
Station computer SIPLACE Vision Machine controller SIPLACE Pro
Version 604.01 Version 341 Version 604.01 Version 5.0
Caution:
The functional statuses of the station computer, vision and machine controller software must
be compatible.
