MODEL TPM-1 10F/R-C 021 1-001 160 See Fig.K-4 Key No.304 6 7 9 10 8 2 2 63 62 61 基板搬送部 P .C.B. TRANSFER SECTION Fig. HH-1 基板搬送部 P .C.B. T ransfer Section
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0211-001
159
1 630 089 2857 UNIT,I/O 1 N003, SAB10-TM16J3A
748FH-310-001
2 630 089 2550 P.C.B,MOUNT 1 #SVME-U943-24V 748FH-310-002
3 630 089 2642 UNIT,POWER 1 G003, #ZWS5-24/JA 748FH-310-003
4 630 091 2593 TERMINAL 1 748FH-310-004
5 407 005 1306 DIODE DS135C 1 748FH-310-005
6 423 025 2000 FUSE 250V 0.4A 1 F005 748FH-310-006
7 630 091 1831 NAME PLATE,INDEX 1 748FH-310-007
8 630 091 1848 NAME PLATE,INDEX 1 748FH-310-008
9 630 088 6412 CORD 1 XCN030-XCN031-033 748FH-310-009
10 630 088 6429 CORD 1 XCN036- 748FH-310-010
11 630 088 6436 CORD 1 XCN035- 748FH-310-011
12 630 088 6443 CORD 1 XCN037- 748FH-310-012
13 630 088 7280 CORD 1 XCN038- 748FH-310-013
61 411 113 1400 SCR PAN 4X6 4 748FH-310-061
62 411 008 1706 WASHER SPR 4 4 748FH-310-062
63 411 119 2104 WASHER V 4X9X0.8 4 748FH-310-063
64 411 042 0703 SCR PAN 3X8 2 748FH-310-064
65 411 086 4408 WASHER SPR 3 2 748FH-310-065
66 411 119 1909 WASHER V 3X7X0.5 2 748FH-310-066
67 411 162 1604 SCR PAN 3X20 4 748FH-310-067
68 411 086 4408 WASHER SPR 3 4 748FH-310-068
69 411 119 1909 WASHER V 3X7X0.5 4 748FH-310-069
70 411 034 7208 SCR FLT 3X8 6 748FH-310-070
FH-1
MODEL TPM-110F/R-C
0211-001
160
See Fig.K-4
Key No.304
6
7
9
10
8
2
2
63
62
61

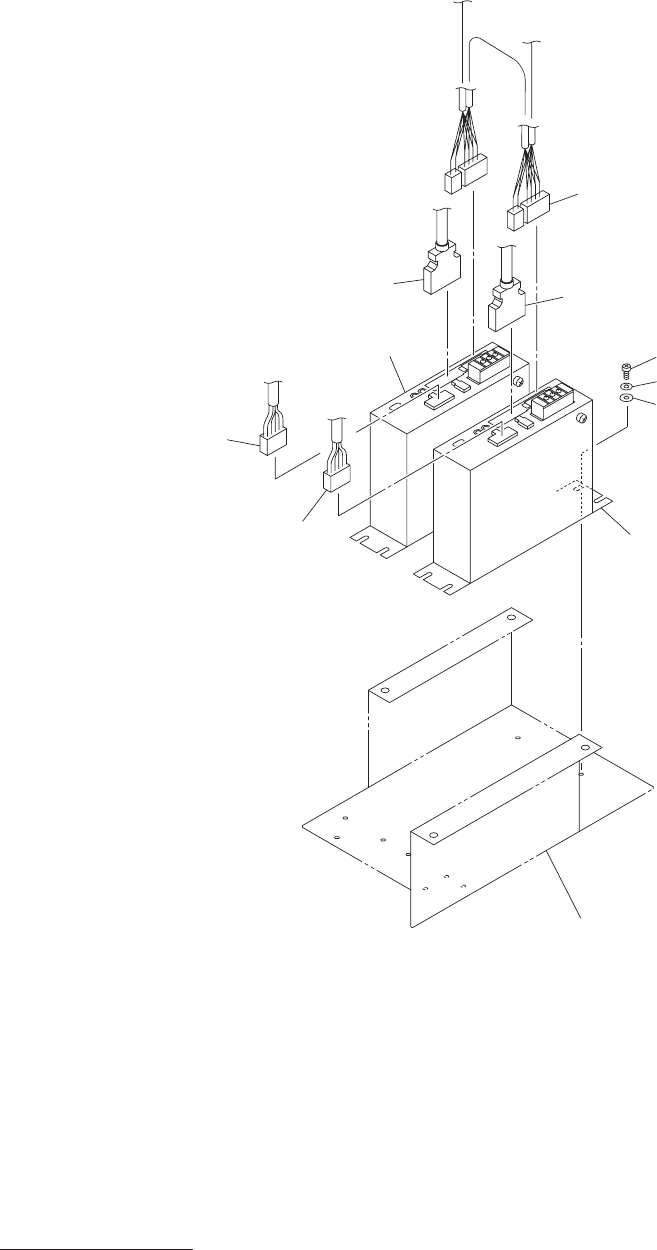

基板搬送部
P.C.B. TRANSFER SECTION
Fig. HH-1
基板搬送部
P.C.B. Transfer Section
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0211-001
161
2 630 116 3680 UNIT,DRIVER 2 APMD037,039, ASD13A-ASD
748HH-310-002
5 630 088 6566 CORD 1 XCN392-XCN394 748HH-310-005
6 630 088 6573 CORD 1 XNC375-XNC370 748HH-310-006
7 630 088 6580 CORD 1 XNC395-XNC390 748HH-310-007
8 630 116 6926 CORD 1 XCN1376-XNC1371 748HH-310-008
9 630 116 6933 CORD 1 XCN1396-XNC1391 748HH-310-009
10 630 116 6940 CORD 1 XCNA04,B04-XCNA37,
XNC1376-XCNA39,XNC1396-XNC1A07
748HH-310-010
61 411 113 1400 SCR PAN 4X6 4 748HH-310-061
62 411 008 1706 WASHER SPR 4 4 748HH-310-062
63 411 119 2104 WASHER V 4X9X0.8 4 748HH-310-063
HH-1
