MODEL TPM-1 10F/R-C 021 1-001 40 166 163 167 1 1 2 162 108 103 168 164 104 109 169 164 166 167 1 1 1 161 106 101 167 166 165 102 161 105 1 1 0 170 171 172 See Fig.F-1 Key No.18 See Fig.F-1 Key No.17 See Fig.K-1 Key No.4 …
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0509-002
39
1 630 088 4371 CYLINDER 3 748F--310-001
3 630 088 8867 VALVE 1 748F--310-003
4 630 092 8518 MECH PARTS 1 748F--310-004
5 630 088 3657 MECH PARTS 1 748F--310-005
6 630 088 3664 MECH PARTS 1 748F--310-006
7 630 080 5420 PIPE FITTINGS 8 748F--310-007
8 630 081 7508 PIPE FITTINGS 6 748F--310-008
9 630 088 8850 AIR LINE EQPT 2 748F--310-009
10 630 069 0538 PIPE FITTINGS 1 748F--310-010
11 630 088 4432 PIPE FITTINGS 2 748F--310-011
12 630 088 2933 GUIDE,LINEAR 1 748F--310-012
13 630 088 2940 GUIDE,LINEAR 1 748F--310-013
14 630 069 0545 SENSOR,PHOTO 2 BPH271,272, EE-SX674
748F--310-014
16 630 088 2926 GUIDE,LINEAR 1 748F--310-016
17 630 116 1815 PLATE(PLATE) 1 748F--310-017
18 630 087 9995 BLOCK 1 748F--310-018
19 630 088 0052 BLOCK 4 748F--310-019
20 630 088 0069 PLATE 1 748F--310-020
21 630 088 0120 BRACKET 1 748F--310-021
22 630 091 0070 BRACKET 1 748F--310-022
23 630 091 0087 BRACKET 1 748F--310-023
24 630 088 0212 PLATE 1 748F--310-024
25 630 094 3238 CYLINDER 1 BPS094 748F--310-025
26 630 091 0094 PIN,HINGE 1 748F--310-026
27 630 054 8631 PIN,LOCATE 2 748F--310-027
28 630 088 3886 PIN,LOCATE 4 748F--310-028
29 630 098 5450 COLLAR 2 748F--310-029
61 411 041 7208 SCR PAN 3X5 4 748F--310-061
62 630 000 7626 BOLT,HEX-SCT 6 748F--310-062
63 411 141 2905 WASHER SPR 4 6 748F--310-063
64 411 141 4008 WASHER V 4X9X0.8 6 748F--310-064
65 630 000 7749 BOLT,HEX-SCT 20 748F--310-065
66 630 000 8401 BOLT,HEX-SCT 20 748F--310-066
67 630 000 7763 BOLT,HEX-SCT 18 748F--310-067
68 630 000 7770 BOLT,HEX-SCT 28 748F--310-068
69 630 000 7800 BOLT,HEX-SCT 6 748F--310-069
70 411 141 6705 WASHER SPR 5 4 748F--310-070
71 411 141 4107 WASHER V 5X10X1 4 748F--310-071
72 630 000 7862 BOLT,HEX-SCT 2 748F--310-072
73 630 000 7886 BOLT,HEX-SCT 4 748F--310-073
74 411 141 3001 WASHER SPR 6 4 748F--310-074
75 411 141 4305 WASHER V 6X12.5X1.6 4 748F--310-075
76 630 000 8036 BOLT,HEX-SCT 3 748F--310-076
77 630 000 7831 BOLT,HEX-SCT 2 748F--310-077
78 630 000 7893 BOLT,HEX-SCT 2 748F--310-078
F-1
MODEL TPM-110F/R-C
0211-001
40
166
163
167
11
2
162
108
103
168
164
104
109
169
164
166
167
111
161
106
101
167
166
165
102
161
105
11
0
170
171
172
See Fig.F-1
Key No.18
See Fig.F-1
Key No.17
See Fig.K-1
Key No.4

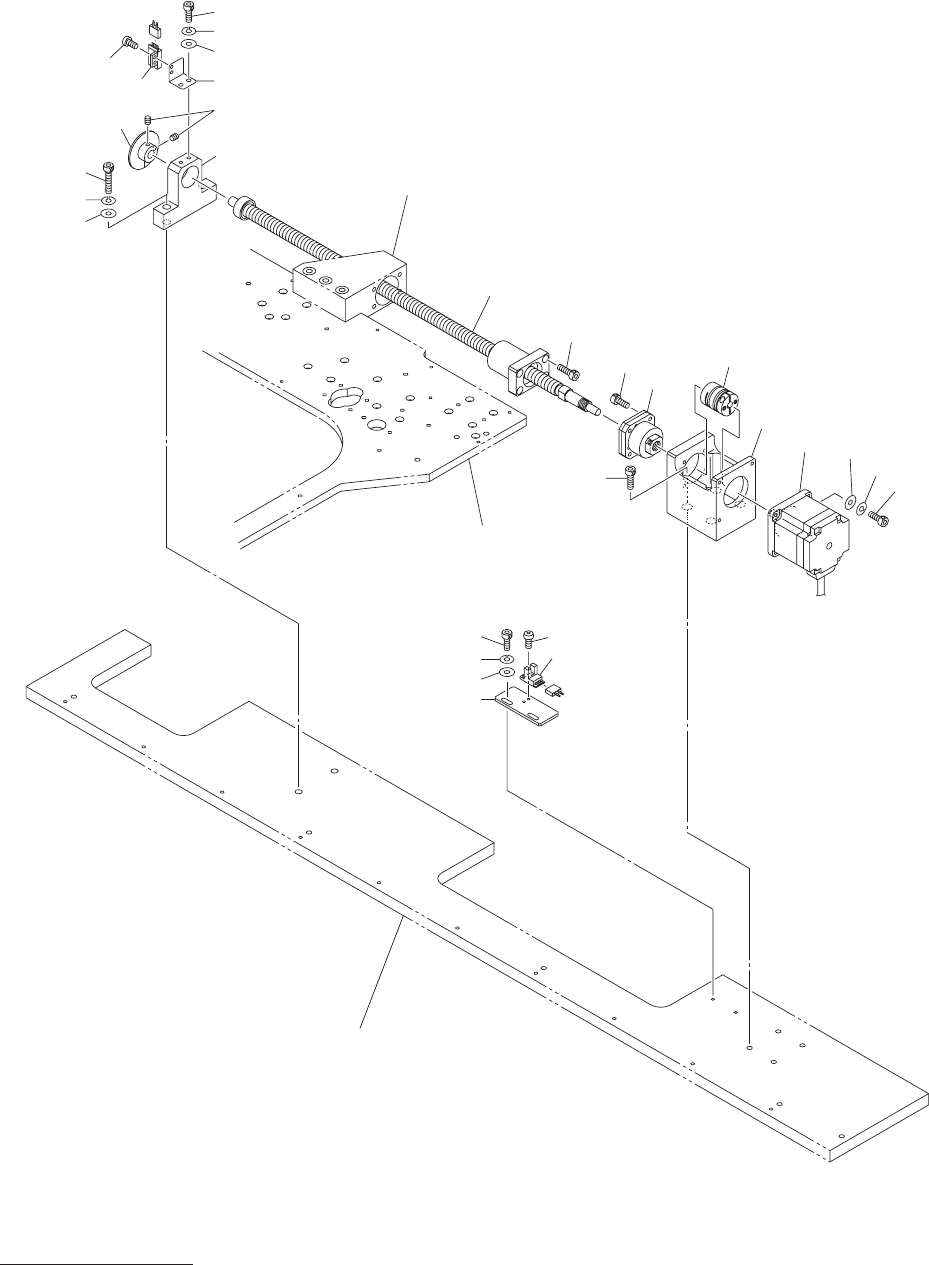

スクリーンホルダ部
SCREEN HOLDER SECTION
Fig. F-2
スクリーンホルダ
Y
部
Screen Holder Y Axis
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0509-002
41
101 630 091 2432 MOTOR,STEPPING 1 MPM029, B2083-D21ASM
748F--310-101
102 630 088 3572 COUPLING 1 SFC-030WD 8B-10B 748F--310-102
103 630 088 5156 BALL SCREW 1 748F--310-103
104 630 013 6241 BEARING,UNIT 1 WBK12-11 748F--310-104
105 630 088 3602 SENSOR,PHOTO 1 BPH294, PM-F54 748F--310-105
106 630 069 0545 SENSOR,PHOTO 1 BPH291, EE-SX674 748F--310-106
108 630 088 0007 BLOCK 1 748F--310-108
109 630 088 0014 BRACKET 1 748F--310-109
110 630 088 0021 PLATE 1 748F--310-110
111 630 088 0076 BRACKET 1 748F--310-111
112 630 088 0137 BRACKET 1 748F--310-112
161 411 041 7208 SCR PAN 3X5 4 748F--310-161
162 630 000 8920 SET SCREW 2 748F--310-162
163 630 000 7619 BOLT,HEX-SCT 2 748F--310-163
164 630 000 7626 BOLT,HEX-SCT 6 748F--310-164
165 630 000 7633 BOLT,HEX-SCT 4 748F--310-165
166 411 141 2905 WASHER SPR 4 8 748F--310-166
167 411 141 4008 WASHER V 4X9X0.8 8 748F--310-167
168 630 000 7763 BOLT,HEX-SCT 4 748F--310-168
169 630 000 7886 BOLT,HEX-SCT 4 748F--310-169
170 630 000 8036 BOLT,HEX-SCT 2 748F--310-170
171 411 141 3100 WASHER SPR 8 2 748F--310-171
172 411 141 4503 WASHER V 8X17X1.6 2 748F--310-172
F-2
