MODEL TCM-3100J 981 1-001 9- 2 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 048 8944 BRACKET(STOPPER) 2 659F--03B-027 2 411 141 4305 W ASHER V 6X12.5X1.6 2 FW 6 3 411 141 3001 W ASHER SPR 6 2 SW 6 4 630 000 7923 …
MODEL TCM-3100J
9811-001
トランスファ部 TRANSFER SECTION

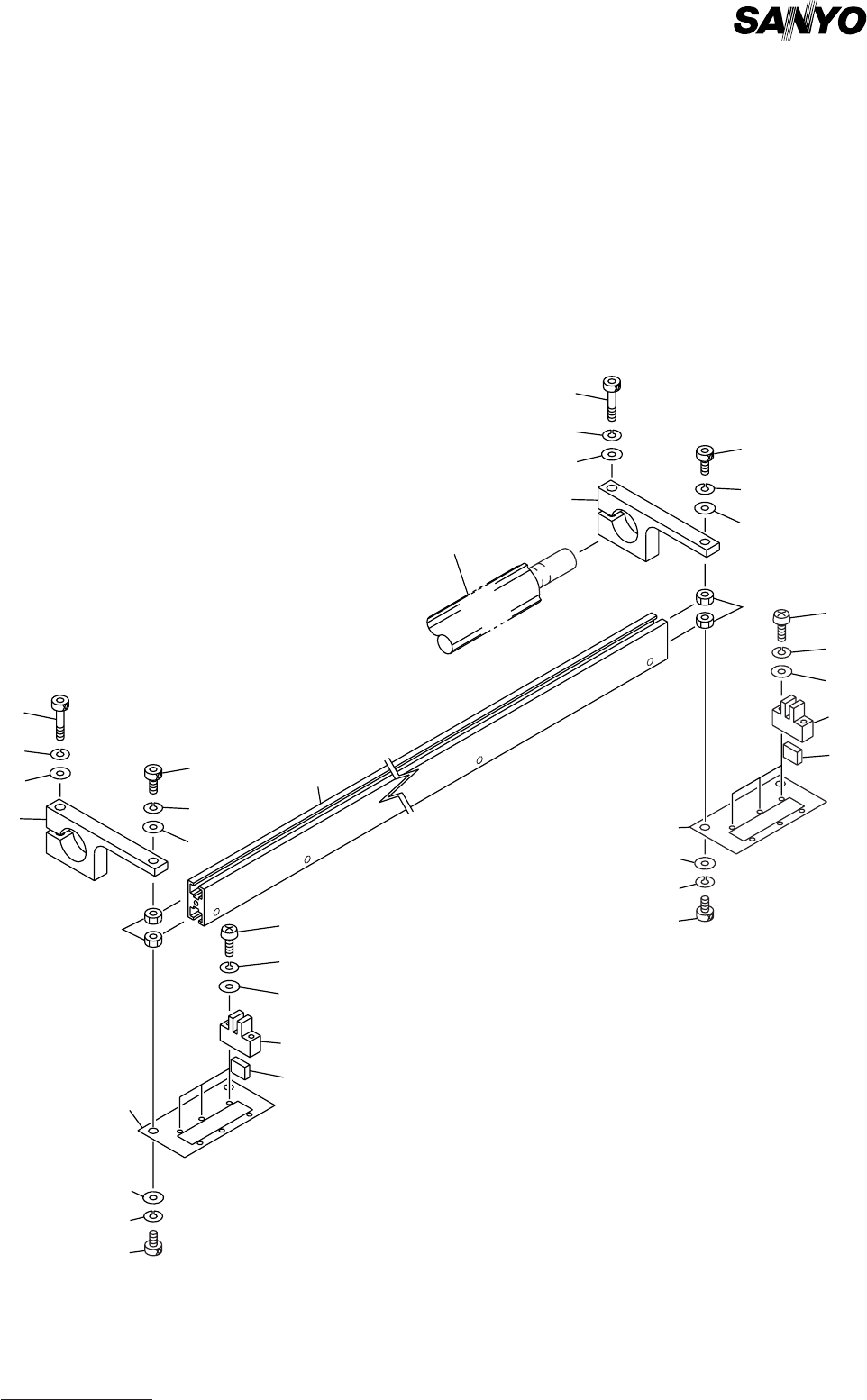

Fig. 9-2 送り位置検出部 Transfar Position Detector
1
2
3
4
5
8
7
6
9
10
10
12
13
14
15
16
19
18
17
See Fig.9-1
Key No.12
9
1
2
3
4
8
7
6
15
16
19
18
17
12
13
14
4796
MODEL TCM-3100J
9811-001
9- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 048 8944 BRACKET(STOPPER) 2 659F--03B-027
2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7923 BOLT,HEX-SCT 2 M6X35
5 630 053 5204 SUPPORT 1 659F--03B-030
6 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
7 411 141 3001 WASHER SPR 6 2 SW6
8 630 000 7886 BOLT,HEX-SCT 2 M6X16
9 411 141 0703 NUT HEX 6 6 M6
10 630 053 5181 PLATE(PHOTO L) 2 659F--03B-028
12 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
13 411 141 3001 WASHER SPR 6 4 SW6
14 630 000 7879 BOLT,HEX-SCT 4 M6X12
15 630 000 0245 SENSOR,PHOTO 6 659F--03H-004
16 630 000 0269 SENSOR,PHOTO(CONNECTOR) 6 659F--03H-025
17 411 088 9005 WASHER F 3X6X0.5 12 FWS3 F
18 411 086 4408 WASHER SPR 3 12 SW3 F
19 411 162 1604 SCR PAN 3X20 12 M3X20 PAN
NOTE
MODEL TCM-3100J
9811-001
トランスファ部 TRANSFER SECTION

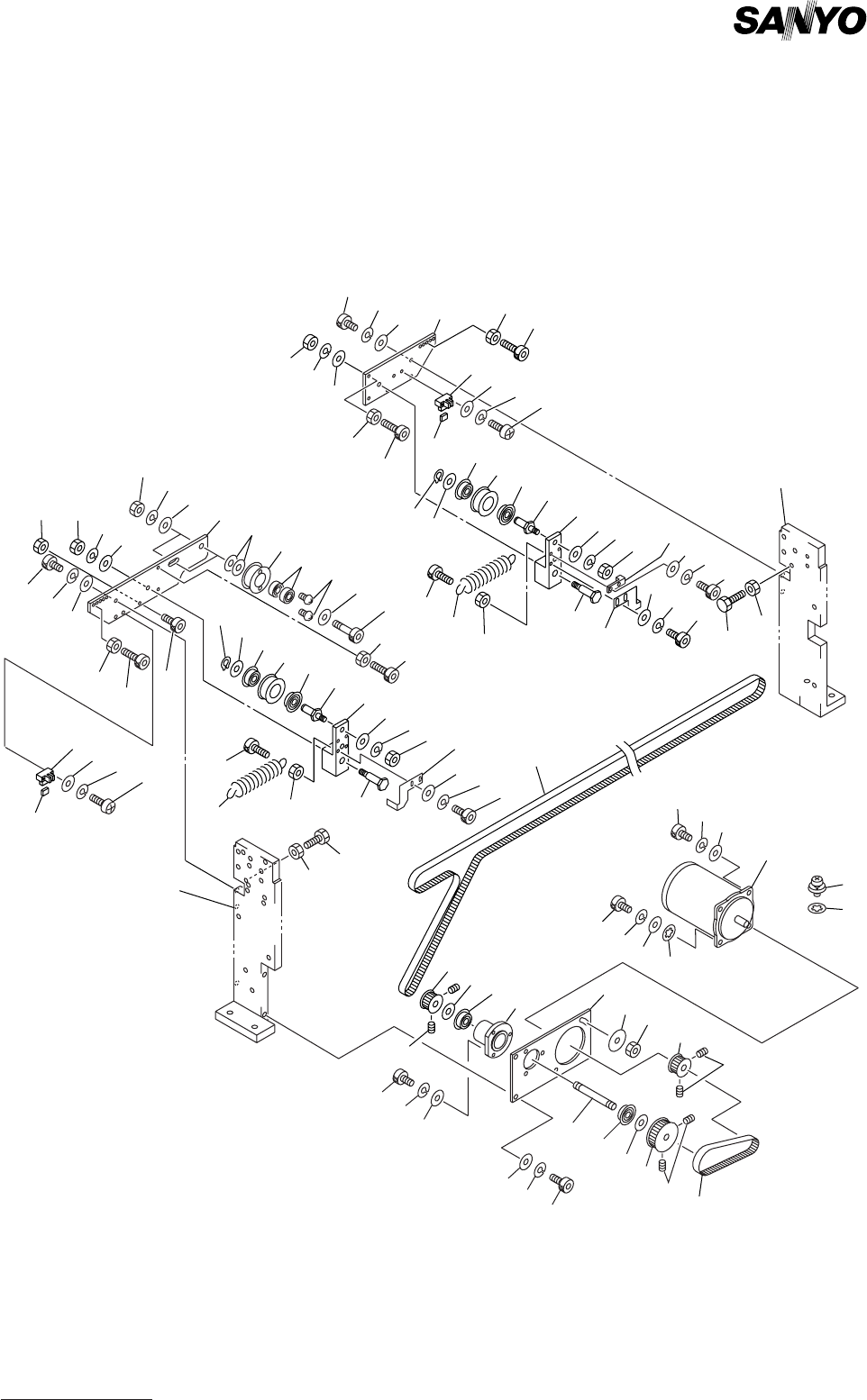

Fig. 9-3 トランスファ駆動部 Transfar Driver
14
15
16
21
18
19
20
22
23
59
38
39
40
41
42
43
44
45
46
66
67
68
65-1
47
54
63
64
57
65
66
67
68
16
17
See Fig.9-1
Key No.2
See Fig.9-1
Key No.1
41
55
38
39
40
41
42
43
44
45
46
79
80
81
82
41
47
54
55
58
63
64
1
2
3
4
7
6
5
5-1
8
9
10
11
12
13
26
25
24
3
4
28
54
56
69
71
72
73
52
53
48
49
50
60
61
62
70
27
30
31
29
32
33
34
35
36
37
56
51
60
61
62
54
48
49
53
52
50
51-1
69
71
72
73
70
87
86
Fig.9-3
TCM-3000E-002
TCM-3000S-002
