MODEL TCM-3100J
9811-001
空圧制御部 PNEUMATIC SECTION

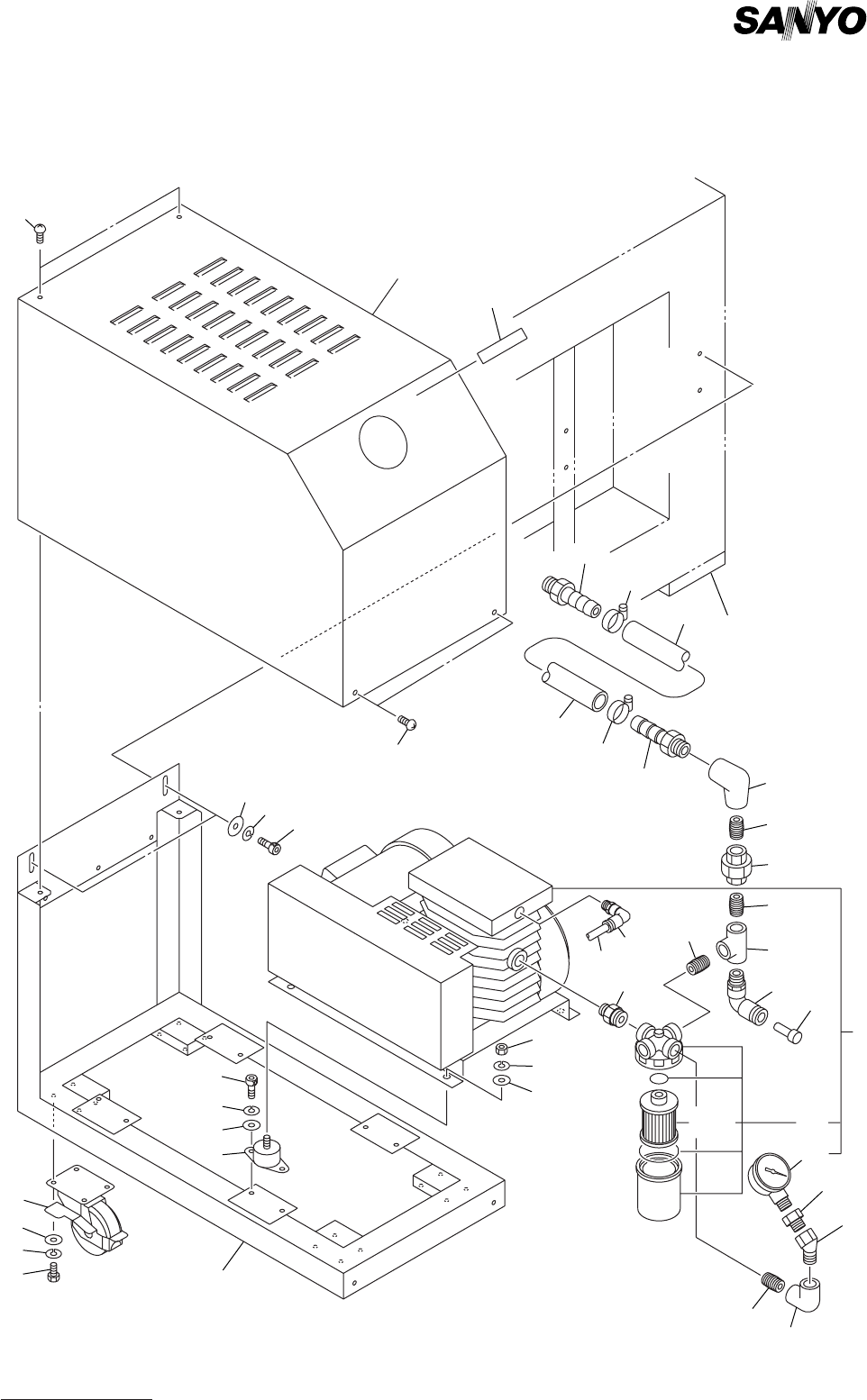

Fig.10-1 真空ポンプ Vacuum Pump
TCM-3000S
55
60
56
56
57
58
59
See Fig.1-1
Key No.2
25
24
23
13
13-1
14
39
38
33
37
1
6
2
3
4
5
9
8
7
45
46
36
33
35
33
33
31
12
34
43
44
47
46
45
21
22
47
MODEL TCM-3100J
9811-001
10- 1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 058 4714 FRAME 1 659L--03B-044
2 630 058 0648 CASTER 4 659L--03H-031
3 411 141 4107 WASHER V 5X10X1 16 FW5
4 411 141 6705 WASHER SPR 5 16 SW5
5 630 000 7756 BOLT,HEX-SCT 16 M5X12
6 630 003 6787 MECH PARTS(RUBBER DUMPER) 4 659L--03H-002
7 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
8 411 141 3001 WASHER SPR 6 8 SW6
9 630 000 7862 BOLT,HEX-SCT 8 M6X10
12 630 055 2195 VACUUM PUMP 1 659L--03H-001
13 630 031 8593 AIR LINE EQPT(FILTER) 1
13 -1 630 012 1230 AIR LINE EQPT(FLT ELEM) 1
14 630 055 2171 VACUUM PARTS 1
21 630 003 7388 PIPE FITTINGS 1
23 411 141 4503 WASHER V 8X17X1.6 8 FW8
24 411 141 3100 WASHER SPR 8 8 SW8
25 411 141 0901 NUT HEX 8 8 M8
31 630 034 9290 PIPE FITTINGS 1 659L--03H-037
33 630 003 8187 PIPE FITTINGS 4
34 630 003 8088 PIPE FITTINGS 1
35 630 003 8279 PIPE FITTINGS 1 659L--03H-003
36 630 009 3520 PIPE FITTINGS 1 659L--03H-004
37 630 003 7845 PIPE FITTINGS 1
38 630 058 4738 PIPE FITTINGS 1 659L--03H-093
39 630 003 8033 PIPE FITTINGS 1
43 630 058 4752 PIPE FITTINGS 1 659L--03H-094
44 630 003 7791 PIPE FITTINGS 1
45 630 004 1026 PIPE FITTINGS 2 659L--03H-005
46 630 033 6948 TUBE 1 659L--03H-006
47 630 008 0940 TUBE(BAND) 2 659L--03H-007
55 630 058 4721 COVER 1 659L--03B-045
56 411 140 8007 SCR TRS 5X6 4 M5X6 TRS
57 630 001 0220 WASHER 2 659L--03H-071
58 411 141 6705 WASHER SPR 5 2 SW5
59 630 000 7770 BOLT,HEX-SCT 2 M5X20
NOTE
MODEL TCM-3100J
9811-001
空圧制御部 PNEUMATIC SECTION

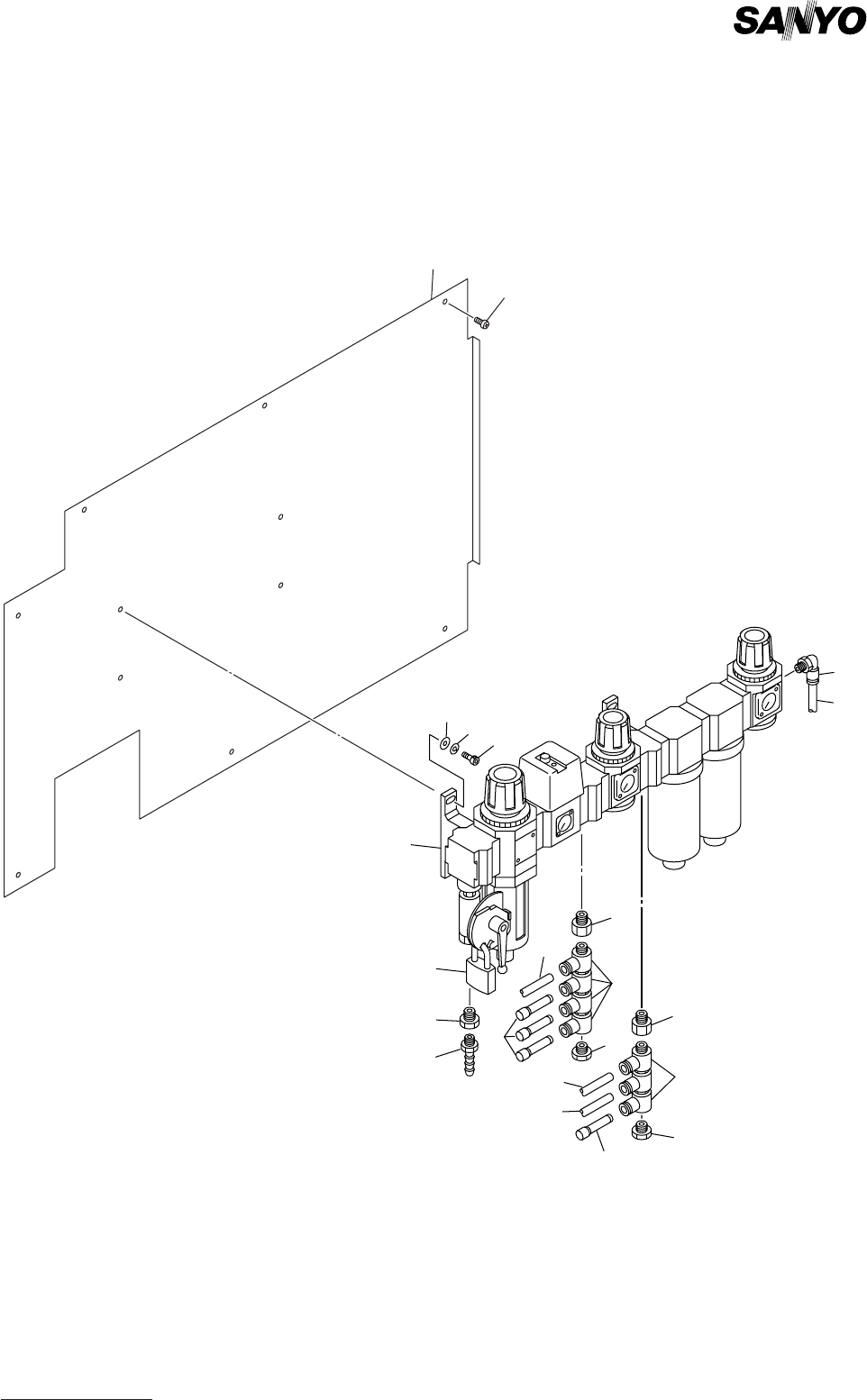

Fig.10-2 エアポート配管 Air Port Piping
7
1
2
8
9
10
21
11
11
12
12
13
13
14
14
15
16
17
18
22
23
24
TCM-3100S
