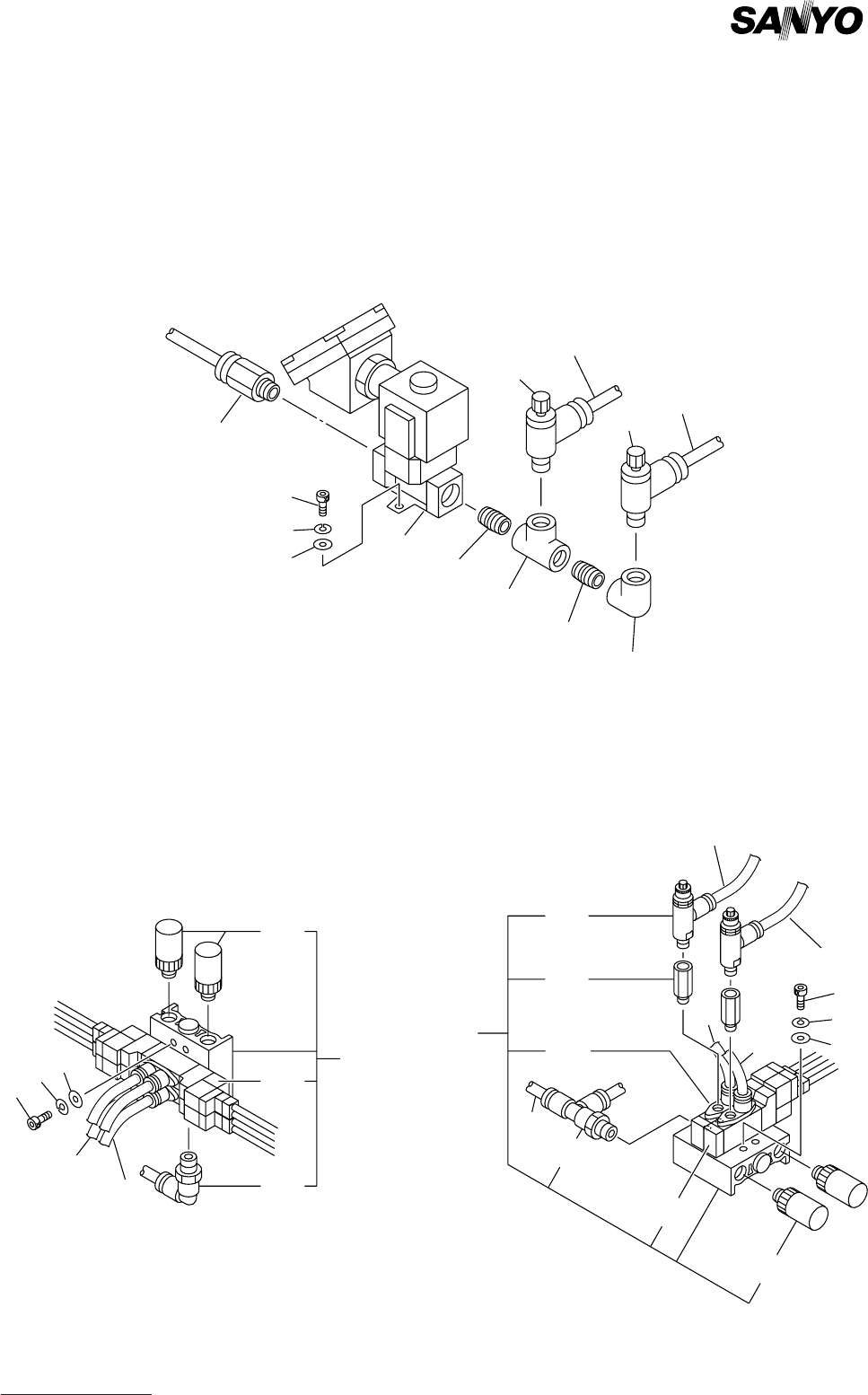

MODEL TCM-3100J 981 1-001 空圧制御部 PNEUMA TIC SECTION Fig.10-3 エア配管 Air Piping 21 22 23 25 26 29 28 27 41 42 4795 22 24 25 6 7 8 5-7 5-6 5-5 5-2 5-3 5-4 1-3 1-2 1-4 1 5 14 13 15 13 14 2 2 3 3 4 11 12
MODEL TCM-3100J
9811-001
10- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 066 0753 COVER 1 659L--03B-046
2 411 113 9109 SCR TRS 5X10 7 M5X10 TRS
7 630 055 2515 AIR LINE EQPT 1 659L--03H-008
8 630 003 8033 PIPE FITTINGS 1
9 630 008 0285 PIPE FITTINGS 1
10 630 003 7388 PIPE FITTINGS 1
11 630 003 8231 PIPE FITTINGS 2 659L--03H-010
12 630 003 8224 PIPE FITTINGS 7 659L--03H-009
13 630 003 8248 PIPE FITTINGS 2 659L--03H-011
14 630 003 7814 PIPE FITTINGS 3
15 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
16 411 141 3001 WASHER SPR 6 4 SW6
17 630 000 7893 BOLT,HEX-SCT 4 M6X20
18 630 053 4917 MECH PARTS 1 659L--03H-092
NOTE
MODEL TCM-3100J
9811-001
空圧制御部 PNEUMATIC SECTION
Fig.10-3 エア配管 Air Piping
21
22
23
25
26
29
28
27
41
42
4795
22
24
25
6
7
8
5-7
5-6
5-5
5-2
5-3
5-4
1-3
1-2
1-4
1
5
14
13
15
13
14
22
33
4
11
12
MODEL TCM-3100J
9811-001
10- 3
Key No. PART No. PART NAME Q'ty REMARKS
1 630 053 8540 SOLENOID VALVE 1 659F--03H-030
1 -3 630 003 6541 AIR LINE EQPT 2
1 -4 630 052 1993 PIPE FITTINGS 1
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
5 630 061 1885 SOLENOID VALVE 1 659G--03H-037
5 -3 630 003 6541 AIR LINE EQPT 2
5 -5 630 040 4067 PIPE FITTINGS 2
5 -6 630 003 8293 PIPE FITTINGS 2
6 411 141 4008 WASHER V 4X9X0.8 2 FW4
7 411 141 2905 WASHER SPR 4 2 SW4
8 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 659L--03H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 659L--03H-015
26 630 031 8579 PIPE FITTINGS 1 659L--03H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
NOTE
