MODEL TCM-3100J 981 1-001 10- 3 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 053 8540 SOLENOID VALVE 1 659F--03H-030 1 -3 630 003 6541 AIR LINE EQPT 2 1 -4 630 052 1993 PIPE FITTINGS 1 2 411 141 4008 W ASHER V 4X…
MODEL TCM-3100J
9811-001
空圧制御部 PNEUMATIC SECTION
Fig.10-3 エア配管 Air Piping
21
22
23
25
26
29
28
27
41
42
4795
22
24
25
6
7
8
5-7
5-6
5-5
5-2
5-3
5-4
1-3
1-2
1-4
1
5
14
13
15
13
14
22
33
4
11
12
MODEL TCM-3100J
9811-001
10- 3
Key No. PART No. PART NAME Q'ty REMARKS
1 630 053 8540 SOLENOID VALVE 1 659F--03H-030
1 -3 630 003 6541 AIR LINE EQPT 2
1 -4 630 052 1993 PIPE FITTINGS 1
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
5 630 061 1885 SOLENOID VALVE 1 659G--03H-037
5 -3 630 003 6541 AIR LINE EQPT 2
5 -5 630 040 4067 PIPE FITTINGS 2
5 -6 630 003 8293 PIPE FITTINGS 2
6 411 141 4008 WASHER V 4X9X0.8 2 FW4
7 411 141 2905 WASHER SPR 4 2 SW4
8 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 659L--03H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 659L--03H-015
26 630 031 8579 PIPE FITTINGS 1 659L--03H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
NOTE
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION

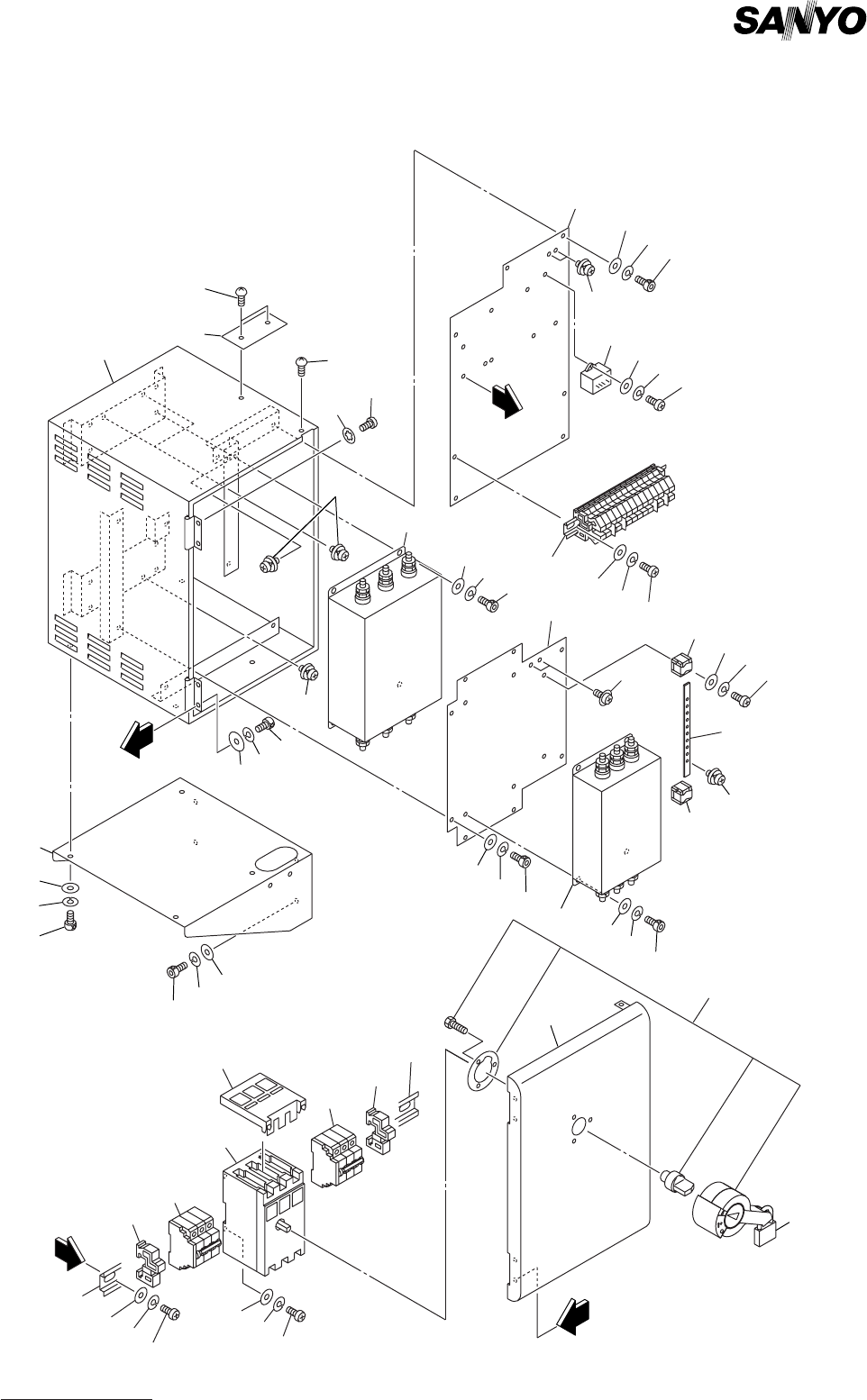

Fig.11-1 一次電源 Power Supply-Primary
1
2
A
A
3
4
5
6
7
8
9
10
B
B
10
11
12
13
14
20
16
17
18
19
21
25
22
23
24
21
41
42
26
31
32
33
34
75
71
72
73
74
36
57
55
38
39
40
56
57
51
37
65
66
67
68
87
81
82
82
83
83
84
84
85
86
52
51
53
54
5-1
5-2
