MODEL TCM-3100J 981 1-001 1 1- 8 Key No. PART No. PART NAME Q'ty REMA RK S 15 630 049 5034 CORD 1 659FB-03D-045 16 630 049 5041 CORD 1 659FB-03D-046 17 630 049 5058 CORD 1 659FB-03D-047 18 630 049 5065 CORD 1 659FB-…
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION

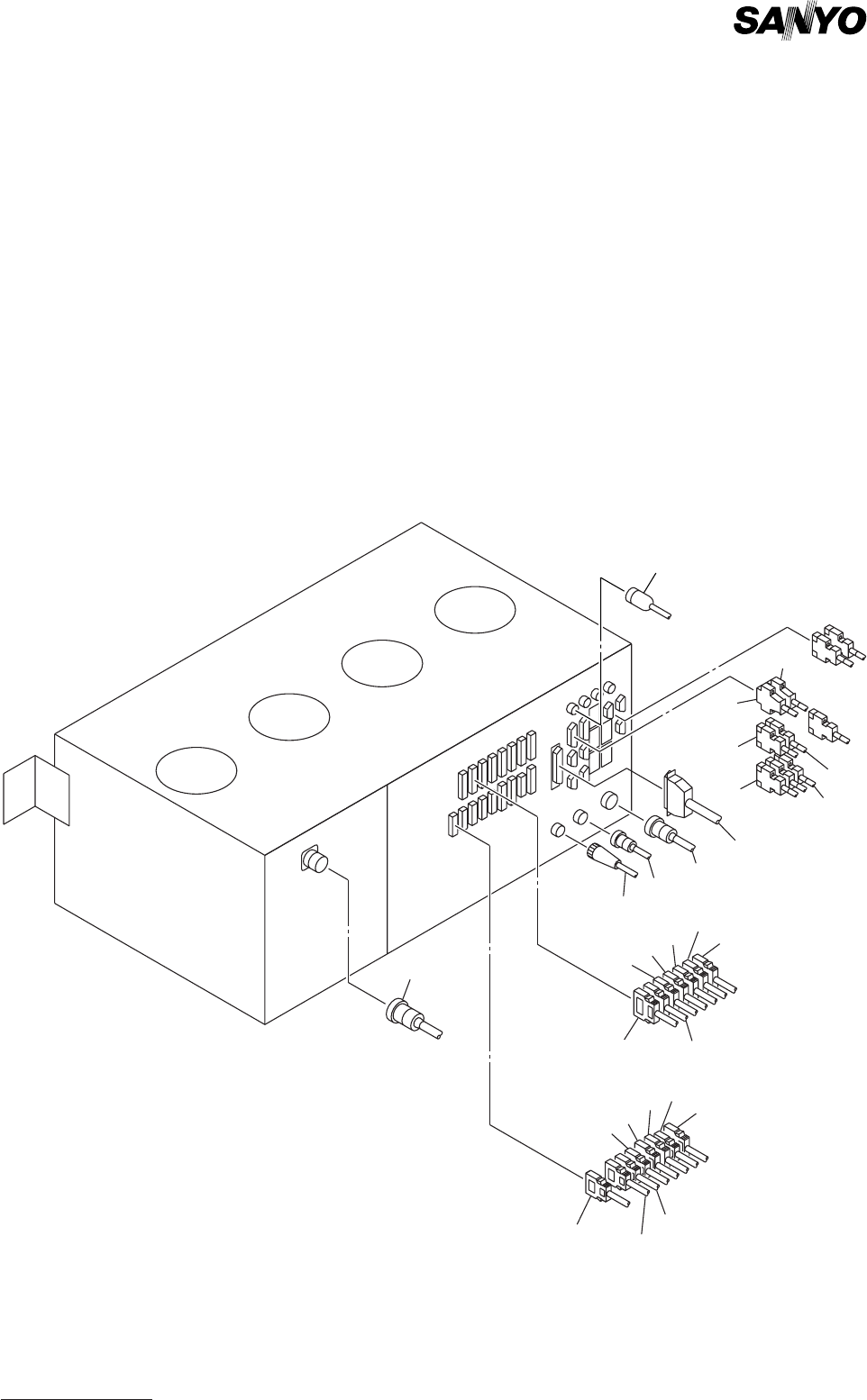

Fig.11-8 制御ボックス配線 Control Box Wiring
71
19
18
17
16
15
26
25
24
83
22
21 20
28
30
27
85
74
73
55
57
59
58
54
65
66
TCM-3000Z
70
MODEL TCM-3100J
9811-001
11- 8
Key No. PART No. PART NAME Q'ty REMARKS
15 630 049 5034 CORD 1 659FB-03D-045
16 630 049 5041 CORD 1 659FB-03D-046
17 630 049 5058 CORD 1 659FB-03D-047
18 630 049 5065 CORD 1 659FB-03D-048
19 630 056 6895 CORD 1 659FB-03D-049
20 630 049 5089 CORD 1 659FB-03D-050
21 630 049 5096 CORD 1 659FB-03D-051
22 630 049 5102 CORD 1 659FB-03D-052
24 630 049 5119 CORD 1 659FB-03D-053
25 630 058 0341 CORD 1 659FB-03D-054
26 630 058 0372 CORD 1 659FB-03D-055
27 630 049 5140 CORD 1 659FB-03D-056
28 630 056 6956 CORD 1 659FB-03D-057
54 630 049 7632 CORD 1 659FB-03D-064
55 630 049 7618 CORD 1 659FB-03D-063
57 630 049 7595 CORD 1 659FB-03D-062
59 630 074 1728 CORD 1 659FB-03D-065
66 630 049 5195 CORD 1 659FB-03D-060
70 630 049 8028 CORD 1 659FB-03D-066
71 630 049 3269 CONNECTOR 1 659FB-03D-033
73 630 054 8709 CONNECTOR 1 659FB-03D-102
74 630 049 3238 CONNECTOR 1 659FB-03D-025
83 630 059 5864 CORD 1 659FB-03D-126
85 630 004 6267 CONNECTOR 1 659FB-03D-127
NOTE
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION
Fig.11-9 タッチパネル Touchpanel
1
3
30
5
6
7
4
5
6
7
8
9
10
See Fig.1-1
Key No.13
34
38
39
40
33
32
31
25
24
23
29
28
27
26
21
22
3000Z
1-1
1-2
1-3
1-4
1-1
1-2
1-3
1-4
2
2-2
2-1
35
36
37
41
44
43
42
46
45
41
