P-118-001e - 第214页

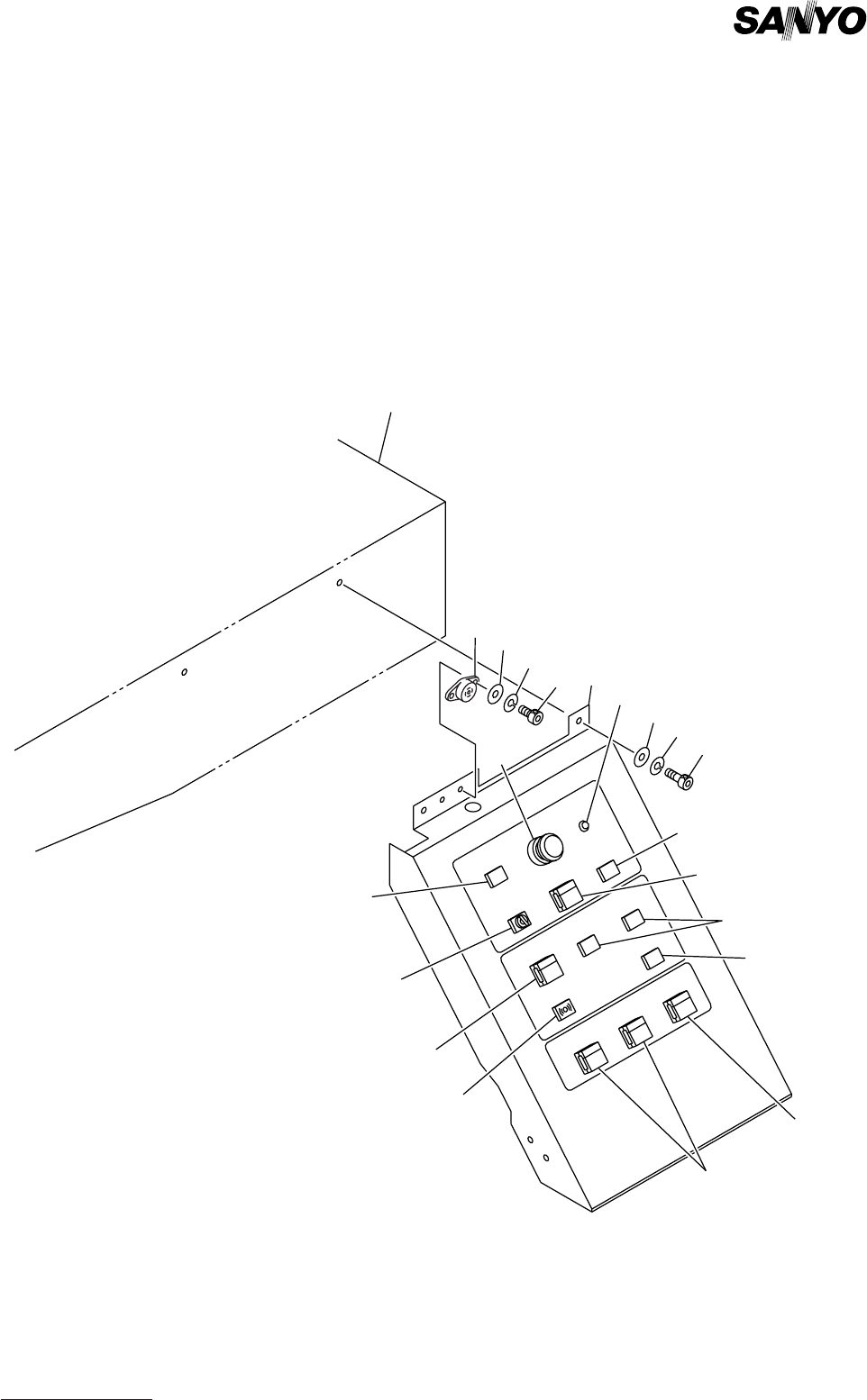

MODEL TCM-3100J 981 1-001 電気制御部 ELECTRICAL SECTION Fig.1 1-10 前面操作パネル Front Operation Panel 1 41 42 43 31 32 33 34 11 12 13 14 28 15 27 26 18 4796 See Fig.1-1 Key No.13 . . 24 25 . 16 17 . 19 20 . 21 22 . 23
MODEL TCM-3100J
9811-001
11- 9
Key No. PART No. PART NAME Q'ty REMARKS
1 630 071 6993 PLATE 1 659DB-03V-001
2 630 059 7950 UNIT,DISPLAY 1 659DB-03D-002
2 -1 630 075 3189 SPACER 3 659DB-03V-007
2 -2 630 075 2717 WASHER 3 659DB-03D-020
2 -3 411 008 1706 WASHER SPR 4 3 SW4 F
2 -4 411 162 1505 SCR PAN 4X20 3 M4X20 PAN
2 -5 630 059 4157 COVER 1 659DB-03V-006
3 630 071 6979 PLATE 1 659DB-03V-002
4 630 073 2757 PLATE 1 659DB-03V-003
5 411 141 4107 WASHER V 5X10X1 4 FW5
6 411 141 6705 WASHER SPR 5 4 SW5
7 630 000 7749 BOLT,HEX-SCT 4 M5X10
8 411 141 4107 WASHER V 5X10X1 2 FW5
9 411 141 6705 WASHER SPR 5 2 SW5
10 630 000 7770 BOLT,HEX-SCT 2 M5X20
21 630 062 0726 BOX 1 659DB-03V-004
22 630 000 4243 SOCKET 2 659DB-03D-006
23 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
24 411 086 4408 WASHER SPR 3 4 SW3 F
25 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
26 411 141 4107 WASHER V 5X10X1 1 FW5
27 411 141 6705 WASHER SPR 5 1 SW5
28 630 000 7756 BOLT,HEX-SCT 1 M5X12
29 411 036 8609 SCR PAN+SW+W 5X12 1
30 411 036 8609 SCR PAN+SW+W 5X12 1
31 411 141 4107 WASHER V 5X10X1 1 FW5
32 411 141 6705 WASHER SPR 5 1 SW5
33 630 000 7756 BOLT,HEX-SCT 1 M5X12
34 630 051 6951 BRACKET 1 659DB-03V-005
35 630 001 0220 WASHER 2 BW5
36 411 141 6705 WASHER SPR 5 2 SW5
37 630 000 7756 BOLT,HEX-SCT 2 M5X12
38 630 001 0220 WASHER 2 BW5
39 411 141 6705 WASHER SPR 5 2 SW5
40 630 000 7756 BOLT,HEX-SCT 2 M5X12
41 630 051 5763 WIRE PARTS 2 659FB-03D-101
42 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
43 411 008 1706 WASHER SPR 4 2 SW4 F
44 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
46 411 036 8609 SCR PAN+SW+W 5X12 7
50 630 060 0896 CORD 1 659DB-03D-018
NOTE
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION
Fig.11-10前面操作パネル Front Operation Panel
1
41
42
43
31
32
33
34
111213
14
28
15
27
26
18
4796
See Fig.1-1
Key No.13
. .
2425
.
16 17
.
19 20
.
21 22
.
23
MODEL TCM-3100J
9811-001
11-10
Key No. PART No. PART NAME Q'ty REMARKS
1 630 074 9014 PANEL 1 659DC-03V-001
11 630 033 4609 SWITCH,BUTTON 1 659DC-03D-001
12 630 033 4586 DISPLAY ELEMENT 1 659DC-03D-002
13 630 033 4593 ACCESSORY,SW 1 659DC-03D-003
14 630 066 7042 SWITCH,BUTTON 1 659DC-03D-004
15 630 000 3130 SWITCH,SELECTOR 1 659DC-03D-012
16 630 000 2713 SWITCH,BUTTON 1 659DC-03D-006
17 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
18 630 000 2515 SWITCH,BUTTON 2 659DC-03D-005
19 630 000 2713 SWITCH,BUTTON 2 659DC-03D-006
20 630 000 0382 ACCESSORY,SW 2 659DC-03D-009
21 630 000 2713 SWITCH,BUTTON 1 659DC-03D-006
22 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
23 630 007 6066 SWITCH,BUTTON 1 659DC-03D-007
24 630 007 6066 SWITCH,BUTTON 1 659DC-03D-007
25 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
26 630 035 0074 BUZZER 1 659DC-03D-011
27 630 000 2744 SWITCH,BUTTON 1 659DC-03D-008
28 407 035 4704 LED SLP-721F 1 659DC-03D-010
31 630 033 4685 BUZZER 1 659DB-03D-003
32 411 141 3605 WASHER V 2X5X0.3 2 FW2 F
33 411 141 2509 WASHER SPR 2 2 SW2 F
34 411 039 2604 SCR PAN 2X6 2 M2X6 PAN
41 411 141 4107 WASHER V 5X10X1 2 FW5
42 411 141 6705 WASHER SPR 5 2 SW5
43 630 000 7749 BOLT,HEX-SCT 2 M5X10
NOTE
