P-118-001e - 第231页
MODEL TCM-3100J 981 1-001 1 1-16 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 061 5630 SUPPORT 1 659FB-03V-019 2 630 001 0220 W ASHER 2 BW 5 3 411 141 6705 W ASHER SPR 5 2 SW 5 4 630 000 7756 BOLT,HEX-SCT 2 M 5X1…
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION

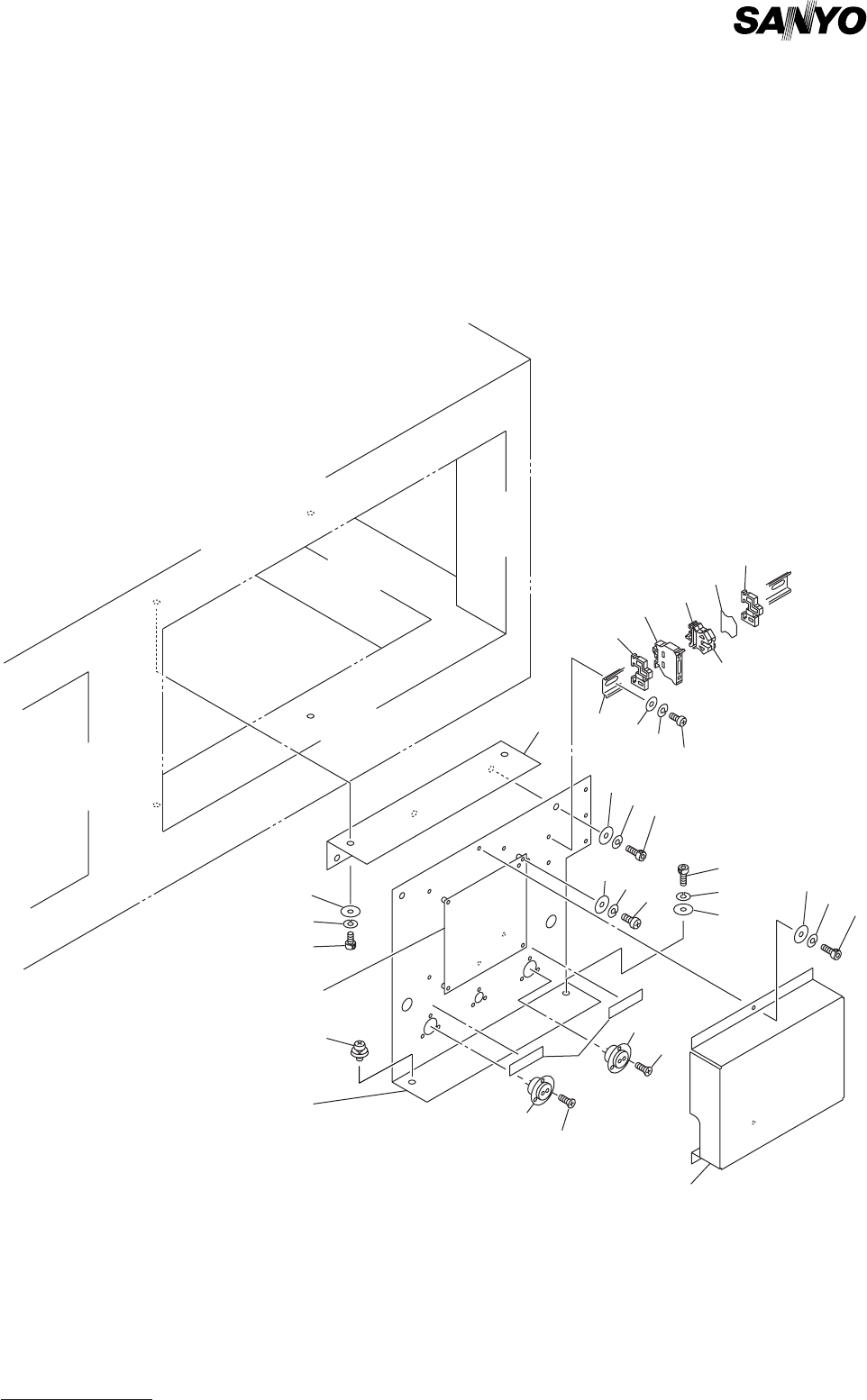

Fig.11-16前後工程I ／F １ Previous/Next Work Process Interface-1
1
31
34
13
15
24
10
32
33
21
22
23
4795R
25
26
27
2
3
4
20
33
32
31
11
15
30
41
49
46
47
48
49
42
43
44
45
.
45-1
MODEL TCM-3100J
9811-001
11-16
Key No. PART No. PART NAME Q'ty REMARKS
1 630 061 5630 SUPPORT 1 659FB-03V-019
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7756 BOLT,HEX-SCT 2 M5X12
10 630 070 4594 PANEL 1 659FB-03V-017
11 630 004 6496 CONNECTOR 1 659FB-03D-130
13 630 004 6496 CONNECTOR 1 659FB-03D-130
14 630 004 6274 CONNECTOR 1 659FB-03D-129
15 411 034 7208 SCR FLT 3X8 9 M3X8 FLT
20 630 062 4793 P.C.B,MOUNT(I/F) 1 659FB-03U-002
21 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
22 411 086 4408 WASHER SPR 3 4 SW3 F
23 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
24 630 059 0692 COVER 1 659FB-03V-018
25 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
26 411 008 1706 WASHER SPR 4 2 SW4 F
27 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
31 630 001 0220 WASHER 3 BW5
32 411 141 6705 WASHER SPR 5 3 SW5
33 630 000 7756 BOLT,HEX-SCT 3 M5X12
34 411 036 8609 SCR PAN+SW+W 5X12 1
42 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
43 411 008 1706 WASHER SPR 4 2 SW4 F
44 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
45 630 070 4808 FUSE HOLDER 1 659FB-03D-157
45 -1 423 022 8005 FUSE 250V 1A 1 659FB-03D-162
46 630 049 3801 TERMINAL 2 659FB-03D-155
47 630 049 3702 ACCESSORY,WIRING 1 659FB-03D-175
48 630 049 3733 ACCESSORY,WIRING 1 659FB-03D-156
49 630 049 3672 BRACKET,WIRING 2 659FB-03D-158
NOTE
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION

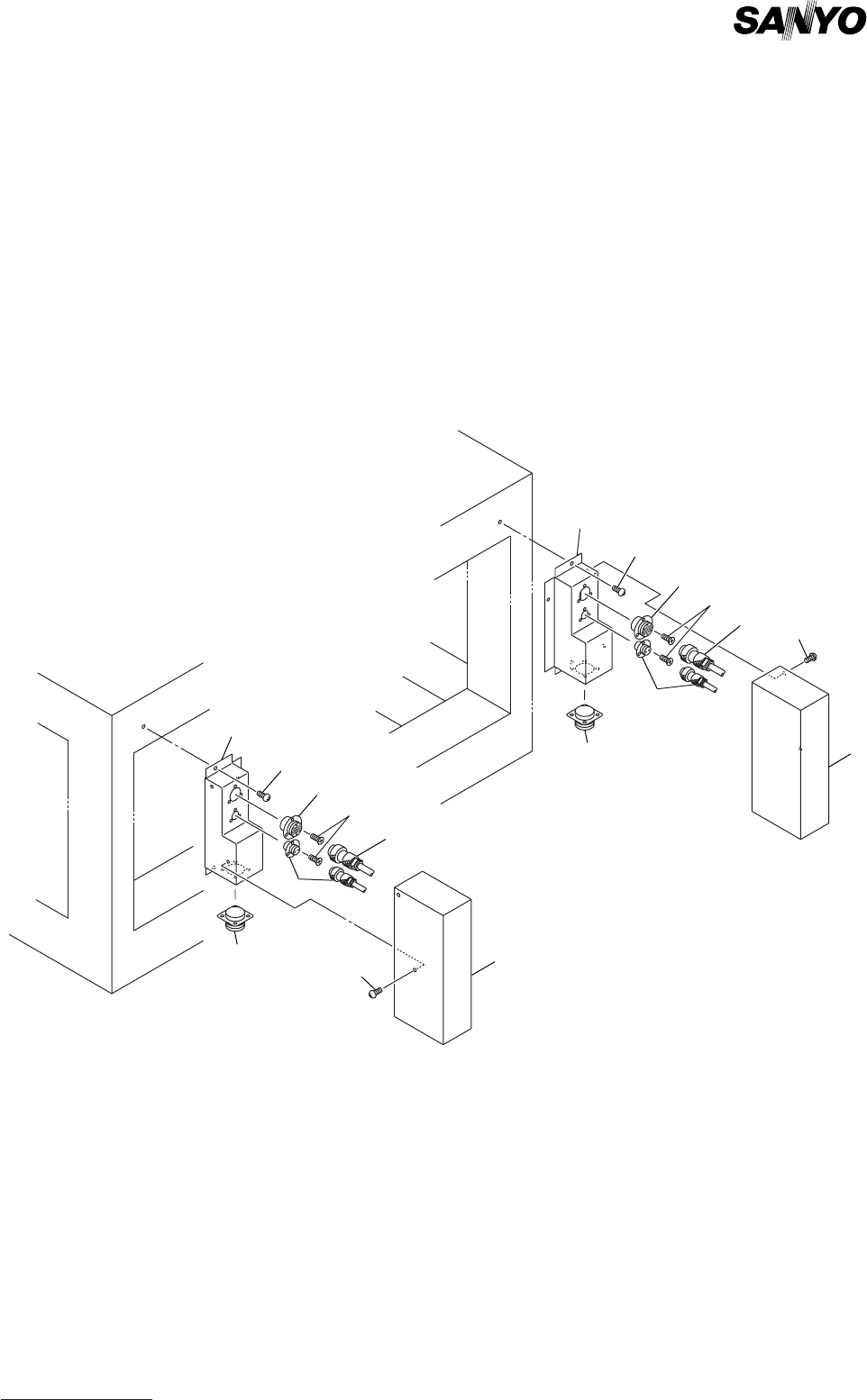

Fig.11-17前後工程I ／F ２ Previous/Next Work Process Interface-2
1
2
2
3
4
5
10
11
12
4796
21
22
22
23
24
25
30
31
32
