MODEL TCM-3100J 981 1-001 12- 4 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 035 2658 BRACKET 1 659FB-03D-077 2 630 056 2125 PILOT LAM P 1 659FB-03D-040 2 -1 630 000 1983 LAMP 4 3 411 141 4107 W ASHER V 5X10X1 2 …
MODEL TCM-3100J
9811-001
カバー部 COVER SECTION

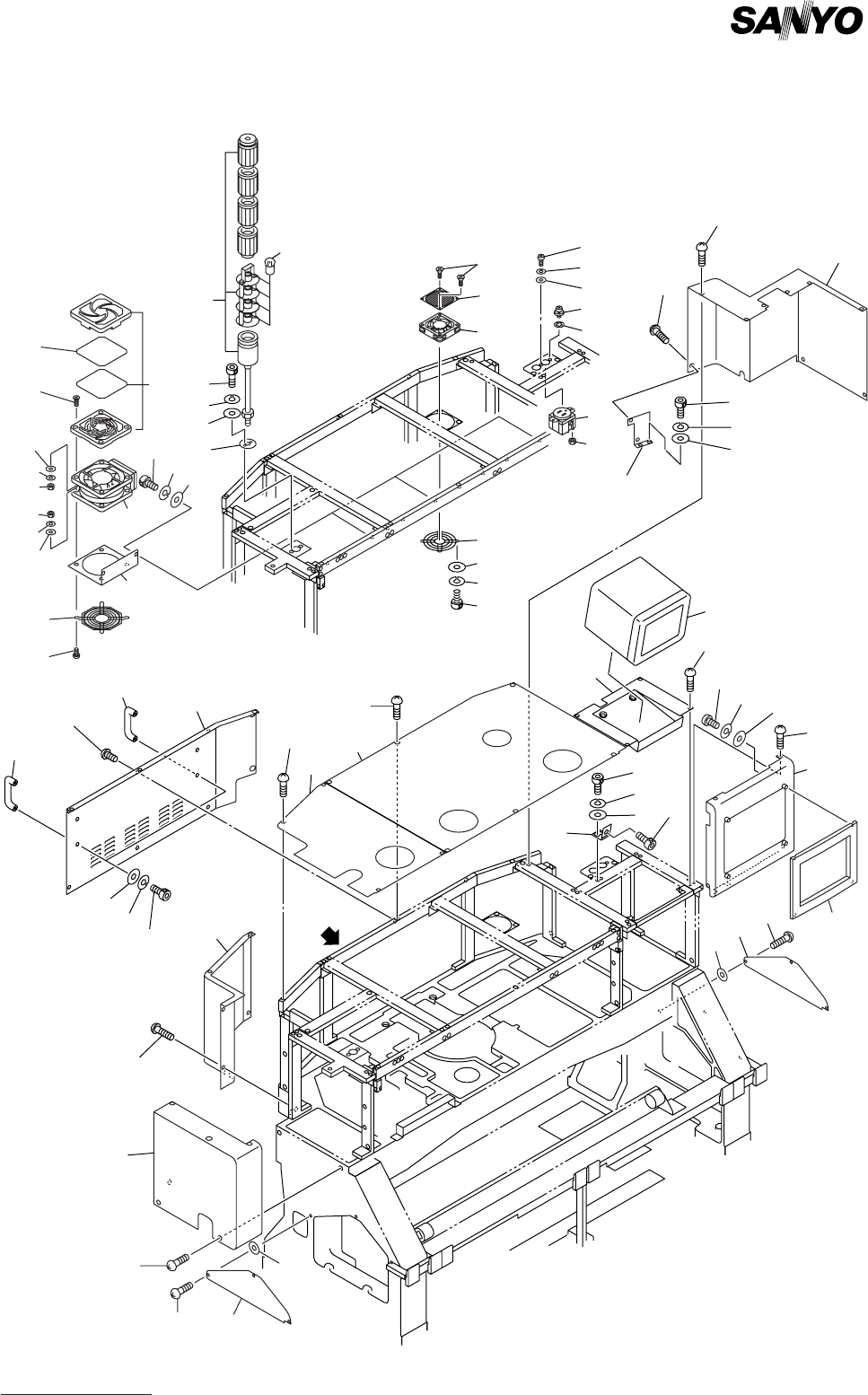

Fig.12-4 上部カバー Upper Cover
70
46
47
48
45
23
54
56
55
56
24
56
56
56
56
56
55-4
55-3
55-2
A
25
30
29
28
26
27
TCM-3100J
71
72
72 71
2
2-1
5
4
3
1
11
13
12
DETAIL"A"
17
16
15
14
21-1
21-2
19
20
21
18
22
55-1
83
98
82
81
85
87
86
84
89
88
94
92
93
91
97
96
70
43
42
44
41
51
52
53
56
50
50
49
MODEL TCM-3100J
9811-001
12- 4
Key No. PART No. PART NAME Q'ty REMARKS
1 630 035 2658 BRACKET 1 659FB-03D-077
2 630 056 2125 PILOT LAMP 1 659FB-03D-040
2 -1 630 000 1983 LAMP 4
3 411 141 4107 WASHER V 5X10X1 2 FW5
4 411 141 6705 WASHER SPR 5 2 SW5
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
11 630 062 8258 MOTOR,DC 3 659FB-03D-069
12 630 000 0986 ACCESSORY,MOT-M 3 659FB-03D-070
13 411 042 3001 SCR PAN 4X10 6 M4X10 PAN
14 630 049 1074 ACCESSORY,MOT-M 3 659C--03D-300
15 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
16 411 008 1706 WASHER SPR 4 6 SW4 F
17 411 042 3001 SCR PAN 4X10 6 M4X10 PAN
18 630 000 4243 SOCKET 1 659DB-03D-006
19 411 119 1909 WASHER V 3X7X0.5 1 FW3 F
20 411 086 4408 WASHER SPR 3 1 SW3 F
21 411 040 7803 SCR PAN 3X12 1 M3X12 PAN
21 -1 411 086 9809 WASHER IN TW 3 1
21 -2 411 114 7005 SCR PAN+SW+W 3X8 1
22 411 054 6809 NUT HEX 3 2 M3 F
23 630 052 6165 COVER 1 659R--03B-025
24 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
25 630 045 8060 UNIT,DISPLAY 1 659DB-03D-001
26 630 052 7629 BRACKET 1 659R--03B-024
27 630 000 7497 BOLT,HEX-SCT 2 FW5
28 411 141 4107 WASHER V 5X10X1 2 SW5
29 411 141 6705 WASHER SPR 5 2 M5X10
30 630 000 7749 BOLT,HEX-SCT 1 M3X4
41 630 066 2948 BRACKET 1 659R--03B-030
42 411 141 4107 WASHER V 5X10X1 2 FW5
43 411 141 6705 WASHER SPR 5 2 SW5
44 630 000 7749 BOLT,HEX-SCT 2 M5X10
45 630 075 8658 COVER 1 659R--03B-035
46 630 058 0464 COVER 1 659R--03B-031
47 630 075 8030 COVER 1 659R--03B-032
48 630 075 8047 COVER 1 659R--03B-033
49 630 066 2955 COVER 1 659R--03B-037
50 630 003 5087 HANDLE 2 659R--03H-008
51 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
52 411 141 3001 WASHER SPR 6 4 SW6
53 630 000 7862 BOLT,HEX-SCT 4 M6X10
54 630 075 8696 COVER 1 659R--03B-038
55 630 071 7204 COVER 1 659R--03B-036
55 -1 630 071 6023 ACCESSORY,DISPLAY 1 659DB-03D-019
55 -2 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
55 -3 411 086 4408 WASHER SPR 3 4 SW3 F
55 -4 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
56 411 113 9109 SCR TRS 5X10 37 M5X10 TRS
70 630 029 1391 WASHER 6 659R--03H-016
71 630 063 4129 COVER 2 659R--03B-137
NOTE
MODEL TCM-3100J
9811-001
12- 4
Key No. PART No. PART NAME Q'ty REMARKS
72 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
81 630 072 5315 BRACKET 3 659R--03B-139
82 630 070 3061 MOTOR,AC 3 659FB-03D-800
83 630 074 6853 ACCESSORY,MOT-M (FILTER) 3 659FB-03D-802
84 630 076 4932 ACCESSORY,MOT-M 3 659FB-03D-803
85 630 068 4292 ACCESSORY,MOT-M 3 659FB-03D-801
86 411 140 7406 SCR FLT 5X20 12 M5X20 FLT
87 411 088 1702 WASHER V 5X10X1 12 FW5 F
88 411 008 2109 WASHER SPR 5 12 SW5 F
89 411 118 8503 NUT HEX 5 12 M5 F
91 411 140 6508 SCR PAN 5X20 12 M5X20 PAN
92 411 088 1702 WASHER V 5X10X1 12 FW5 F
93 411 008 2109 WASHER SPR 5 12 SW5 F
94 411 118 8503 NUT HEX 5 12 M5 F
96 411 141 4107 WASHER V 5X10X1 6 FW5
97 411 141 6705 WASHER SPR 5 6 SW5
98 630 000 7749 BOLT,HEX-SCT 6 M5X10
NOTE
