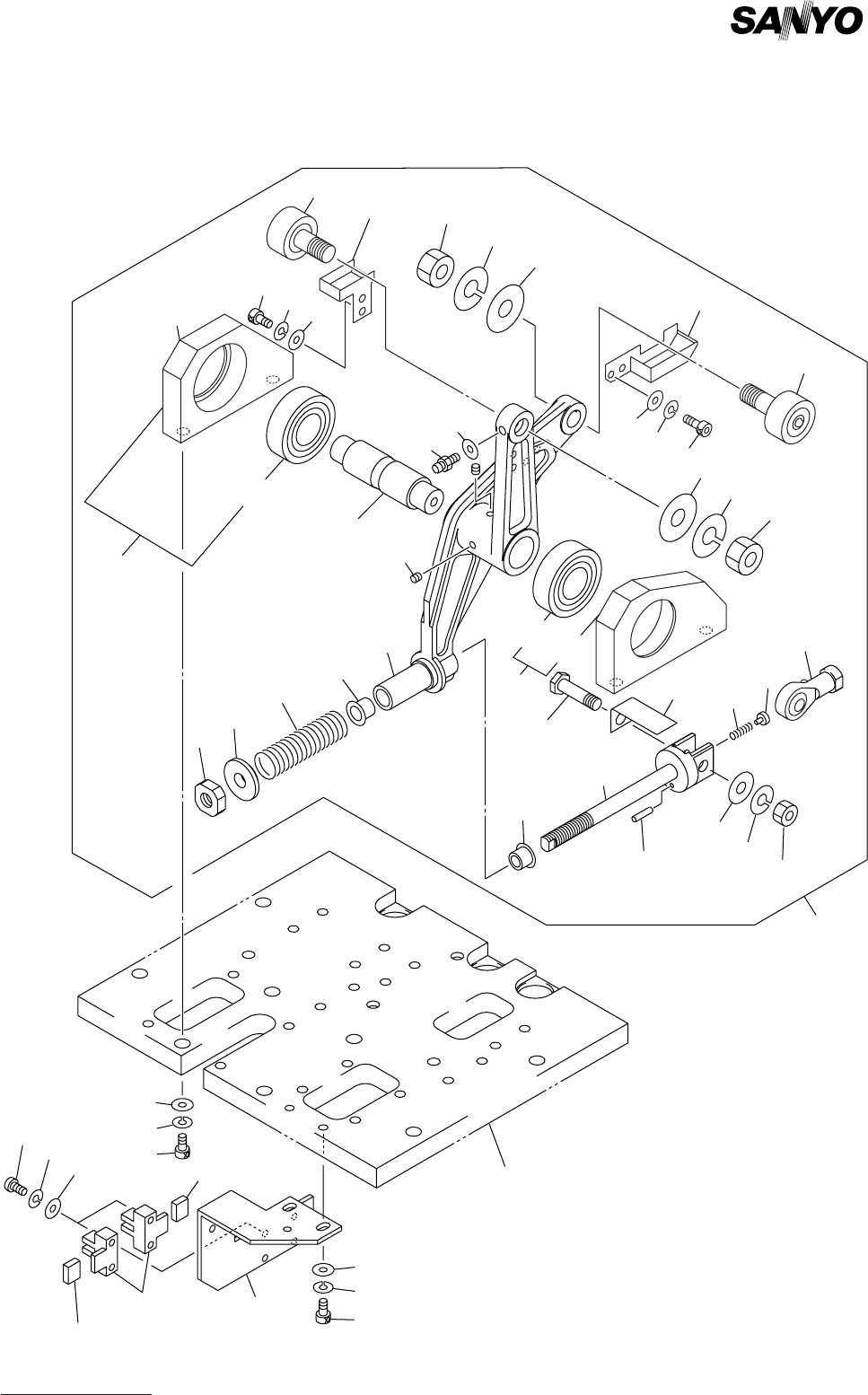

MODEL TCM-3100J 981 1-001 ヘッド駆動部 HEAD DRIVING SECTION Fig. 3-14 カッターレバー Cutter Lever 13 42-2 42-1 2 14 12 3 4 5 6 15 16 24 25 26 27 28 17 18 19 20 21 22 43 44 45 4796 41-2 7 8 9 10 15 See Fig.3-13 Key No.29 30 29 11 23 5…
MEMO
MODEL TCM-3100J
9811-001
ヘッド駆動部 HEAD DRIVING SECTION
Fig. 3-14カッターレバー Cutter Lever
13
42-2
42-1
2
14
12
3
4
5
6
15
16
24
25
26
27
28
17
18
19
20
21
22
43
44
45
4796
41-2
7
8
9
10
15
See Fig.3-13
Key No.29
30
29
11
23
57
58
59
51
53
52
53
54
55
56
41-1
41
42
1
32
32
33
33
31
31
MODEL TCM-3100J
9811-001
3-14
Key No. PART No. PART NAME Q'ty REMARKS
1 630 060 9394 ASSY,LEVER(CUTTER) 1
2 630 056 1876 LEVER 1 659K--03B-059
3 630 049 0367 CAM FOLLOWER 1 659K--03H-016
4 411 141 4800 WASHER V 12X24X2.5 1 FW12
5 411 141 3308 WASHER SPR 12 1 SW12
7 630 049 0374 CAM FOLLOWER 1 659K--03H-017
8 411 141 4800 WASHER V 12X24X2.5 1 FW12
9 411 141 3308 WASHER SPR 12 1 SW12
11 411 141 6002 WASHER F 6X11.5X1.6 1 FWS6
12 630 003 4301 GREASE NIPPLE 1 659K--03H-036
13 630 049 1395 SHAFT 1 659K--03B-083
14 630 000 8944 SET SCREW 2 M5X6 SET
15 630 049 0176 BUSH,BEARING 2 659K--03H-034
16 630 048 9699 SHAFT 1 659K--03B-065
17 630 049 0152 SPRING,COMP 1 659K--03H-032
18 630 048 9415 COLLAR 1 659K--03B-067
19 630 052 4246 MECH PARTS(PARALLEL PINS) 1 659K--03H-033
20 630 002 5828 SPRING,COMP 1 659K--03H-031
21 630 048 9408 COLLAR 1 659K--03B-066
22 630 005 0868 BEARING,PARTS 1 659K--03H-035
23 630 055 3604 ROD END 1 659EB-03H-012
24 630 048 9439 PLATE 1 659K--03B-069
25 630 048 9422 PIN,HINGE 1 659K--03B-068
26 411 141 4503 WASHER V 8X17X1.6 1 FW8
27 411 141 3100 WASHER SPR 8 1 SW8
28 411 141 0901 NUT HEX 8 1 M8
29 630 056 2132 BOX 1 659K--03B-100
30 630 056 2149 BOX 1 659K--03B-101
31 411 141 4008 WASHER V 4X9X0.8 4 FW4
32 411 141 2905 WASHER SPR 4 4 SW4
33 630 000 7619 BOLT,HEX-SCT 4 M4X8
41 630 060 4917 ASSY,SUPPORT(CUTTER2) 1
41 -1 630 056 2170 SUPPORT 1 659K--03B-058
41 -2 630 049 0084 BEARING,RADIAL 1 659K--03H-013
42 630 060 4900 ASSY,SUPPORT(CUTTER1) 1
42 -1 630 056 2163 SUPPORT 1 659K--03B-057
42 -2 630 049 0084 BEARING,RADIAL 1 659K--03H-013
43 411 141 4503 WASHER V 8X17X1.6 4 FW8
44 411 141 3100 WASHER SPR 8 4 SW8
45 630 000 8036 BOLT,HEX-SCT 4 M8X30
51 630 050 0950 BRACKET 1 659K--03B-070
52 630 000 0252 SENSOR,PHOTO 2 659K--03H-041
53 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 659K--03H-043
54 411 088 9005 WASHER F 3X6X0.5 4 FWS3 F
55 411 086 4408 WASHER SPR 3 4 SW3 F
56 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
57 411 141 4107 WASHER V 5X10X1 2 FW5
58 411 141 6705 WASHER SPR 5 2 SW5
59 630 000 7763 BOLT,HEX-SCT 2 M5X16
