Vision Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7159094A LIGHT BOX-UPPER 1 J7159094A 2 J9059002A CVOD PCB ASS'Y 2 CVOD SIDE PCB ASS'Y 3 J2102302 REFLECTOR 4 0150-625028 4 J7459002A COVER GLASS…
Vision Ass’y
- 1 -

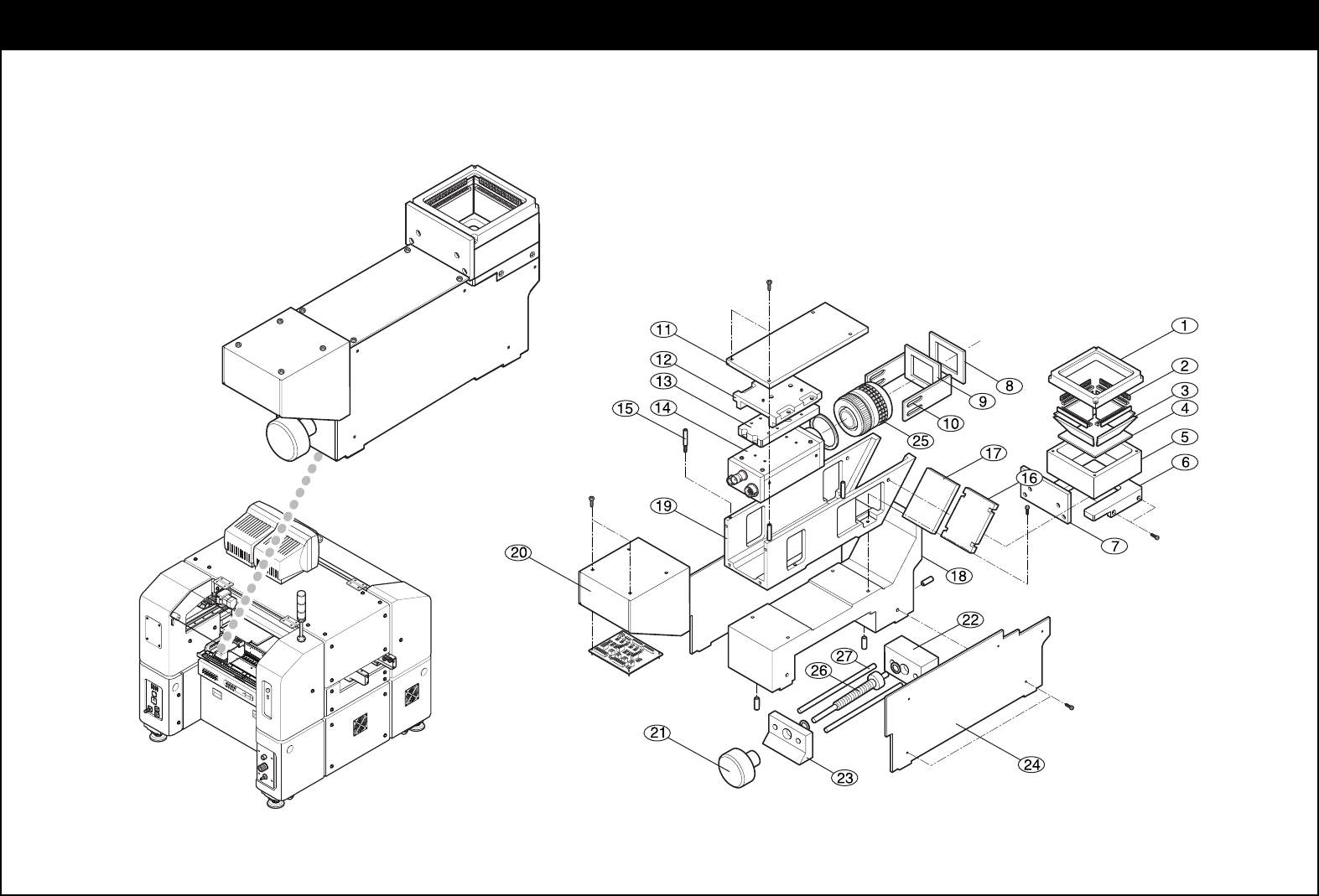

Vision Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7159094A LIGHT BOX-UPPER 1 J7159094A
2
J9059002A CVOD PCB ASS'Y 2 CVOD SIDE PCB ASS'Y
3
J2102302 REFLECTOR 4 0150-625028
4
J7459002A COVER GLASS 1 J7459002A
5
J7159095A LIGHT BOX-LOWER 1 J7159095A
6
J7159038A
LIGHT BRACKET 1
J7159038A
7
J7159046B WIRE COVER 1 J7159046B
8
J7259007A DIFFUSER 1 J7259007A
9
J9059001A CVOD PCB ASS'Y 1 CVOD NAXIS PCB ASS'Y
10
J7159045A LED PLATE 2 J7159045A
11
J7159037A TOP PLATE 1 J7159037A
12
J7159015B CAMERA BRACKET 1 J7159015B
13
J7059010A HOLDER 1 J7059010A
14
J1300491 CCD CAMERA 1 SFA-410ED
15
J2100965 BRACKET 4 0130-625023
16
J7159032A
MIRROR BRACKET 1
J7159032A
17
J6755004A
FOLDING MIRROR 1
J6755004A
18
J7159035A UNIT BASE 1 J7159035A
19
J7159036A BODY BASE 1 J7159036A
20 J7059002B ELC BOX 1 J7059002B
21
J2100957 KNOB 1 0130-625015
22
J2100956 BLOCK 1 0130-625014
23
J2100954 BLOCK 1 0130-625012
24
J7159044A
COVER 1
J7159044A
25 J6739006A LENS 1 C1614A-TS 35mm VISION
J6739007A LENS
1 B1218-2-TS
45mm VISION
J6739005A LENS
1 B2518-TS
20mm VISION
- 1 -
26
J2100953 SCREW 1 0130-625011
27
J2100955 SHAFT 2 0130-625013
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
