CP40配件说明 - 第13页
Mech. Ass’y - 1 -
Air Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
55 J7058003A REGULATOR BRACKET 1 J7058003A
56 J1301423 O-RING 3 DIA 5
57 J9801510 CONVEYOR AIR ASS'Y 1 0135-613006-A
58 J1301695 MANIFOLD BASE 1 SS5Y3-60-07D-7
59 J2102198 BUT SOL CABLE ASS'Y 1 QA2-CV26-5
60 J1301696 SOLENOID 1 SY3160-5L-C6
61 J1301698 SILENCER 1 AN203-KM8
62 J1301699 PLUG 1 KQP04-X19
63 J1300621 SPEED CONTROLLER 2 AS2001F-06
64 J6713016A AIR TUBE (POLYURETHANE) 8 U2-4-4*2.5 (BLACK)
65 J6713016A AIR TUBE (POLYURETHANE) 10 U2-4-4*2.5 (BLACK)
66 J6713017A AIR TUBE (POLYURETHANE) 5 U2-4-6*4 (BLACK)
67 J6713018A AIR TUBE (POLYURETHANE) 5 U2-4-8*5 (BLACK)
68 J6713019A AIR TUBE (POLYURETHANE) 10 U2-4-10*6.5 (BLACK)
69 J6713020A AIR TUBE (POLYURETHANE) 2.5 U2-4-12*8 (BLACK)
70
71
72
73
74
75
76
77
78
79
80
81
- 3 -

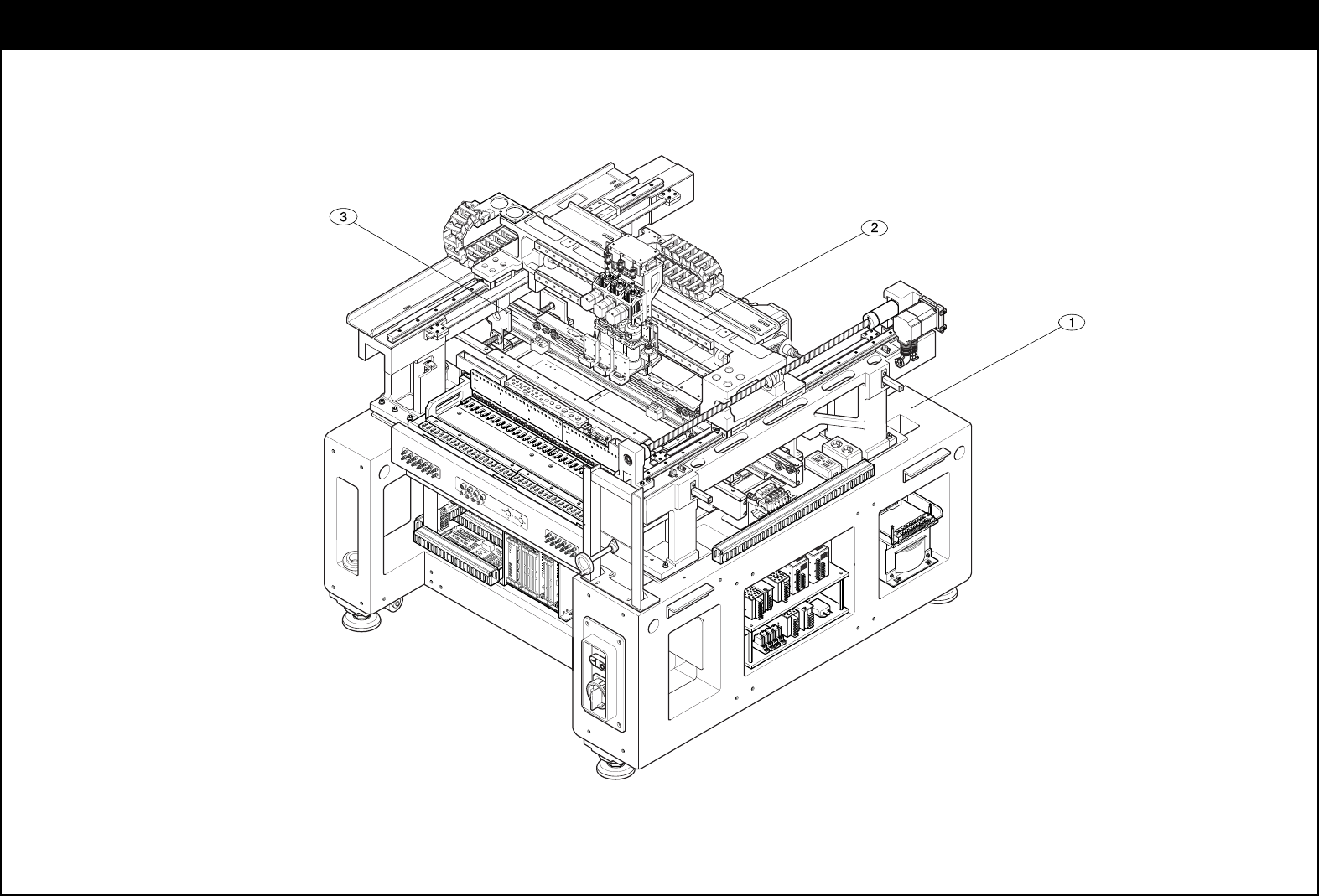

Mech. Ass’y
- 1 -
MECH. Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9801520 MAIN FRAME ASS'Y 1 0135-611001-A
2
J9054028A X-Y FRAME ASS'Y 1 CP-40L(V)+
3
J9053016A CONVEYOR ASS'Y 1 3STAGE CONVEYOR PRONT FIXED RAIL L->R
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
