CP40配件说明 - 第25页
X-Y Frame Ass’y - 1 -
Feeder Station Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9057009C FEEDER BASE ASS'Y 1 J9057009C
FRONT
J9057010C FEEDER BASE ASS'Y 1 J9057010C
REAR
2
J2101456 COVER-FRONT-LEFT 1 0134-661012
FRONT
J2101459 COVER-REAR-LEFT 1 0134-661015
REAR
3
J2102238 SUPPORT SPEED CON. L 1 0134-661021-P1
4
J1301142 EXHAUST THROTTLE VALVE 26 ASN2-M5/ETM5 (PISCO)
5
J2102237 BASE-MULTI CYL 1 0134-661010-P2
6
J1301423 O-RING 26 DIA 5
7
J1300279 FITTING 52 KQ2S04-M5/POC4-M5M
8
J6309009A HOLE PLUG 8 1065-800-90-B
9
J1301182 TEE FITTING 13 KQT04-M5/PB4-M5 (PISCO)
10
J2101209 NUMBER PLATE (FRONT) 1 0131-661020
11
J2102224 STAY-FRONT COVER 4 0135-661117
12
J7061004B CON PANEL F/R 1 J7061004B
13
J2102234 SUPPORT SPEED CON. 1 0134-661020-P1
14
J7157009B STAY COVER 4 J7157009B
15
J1301387 MULTI CYLINDER 13 0134-662501, (WOOSUNG)
16
J2101457 COVER-FRONT-RIGHT 1 0134-661013
FRONT
J2101458 COVER-REAR-RIGHT 1 0134-661014
REAR
17
J7057020B BRACKET SPEED CON 4 J7057020B
18
J2101539 COVER-FEEDER S/T 1 0134-661018-P1
FRONT
J2101864 COVER-FEEDER S/T 1 0135-661018
REAR
19
J2101863 ADAPTER CYLINDER BLOCK 2 0135-661011
20
21
22
23
- 1 -

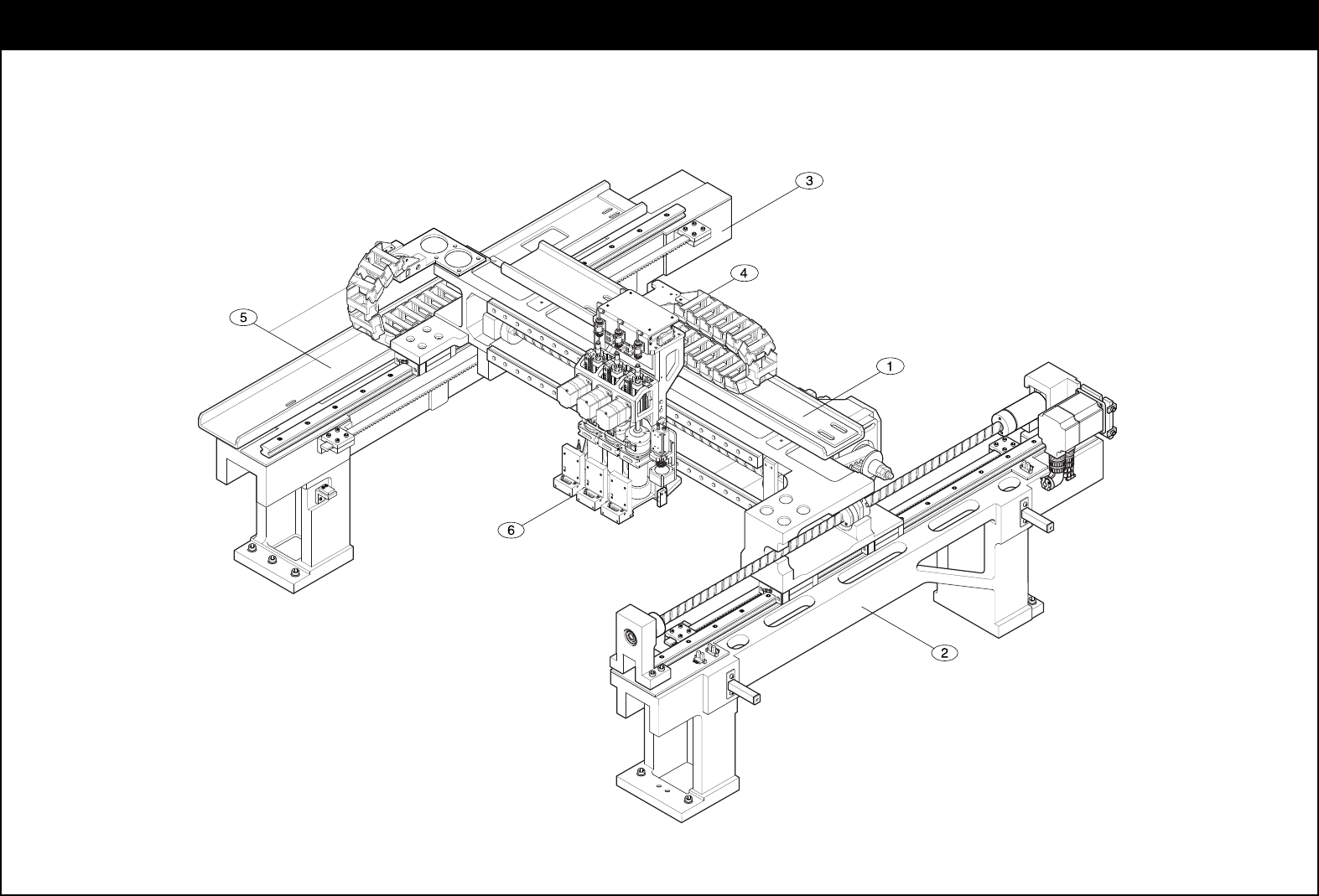

X-Y Frame Ass’y
- 1 -
X-Y Frame Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9054029A X-FRAME ASS'Y 1 J9054029A
2
J9801497 Y1-FRAME ASS'Y 1 0135-631010-A
3
J9801086 Y2-FRAME ASS'Y 1 0134-631011-A
4
J9054030A CARRIER ASS'Y 1 J9054030A
5
J9800991 CABLE BEYOR ASS'Y 1 0133-631007-A
6 HEAD & CARRIER ASS'Y 1 CP-40L(V)+
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 1 -
