X-Frame Ass' y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J1300484 PHOTO SENSOR 3 EE-SX671 2 J1301217 TIMMING BELT-X 1 5GT-350-15 3 J2100120 BRACKET1 X SENSOR 1 0131-631154 4 J2100121 BRACKET2 X SENSOR 1 0131-63…
X-Frame Ass’y
- 1 -
X-Frame Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J1300484 PHOTO SENSOR 3 EE-SX671
2
J1301217 TIMMING BELT-X 1 5GT-350-15
3
J2100120 BRACKET1 X SENSOR 1 0131-631154
4
J2100121 BRACKET2 X SENSOR 1 0131-631155
5 J7154058D
X-FRAME 1
J7154058D
6
7
J6607035A
LM GUIDE
2 2RSR 15ZMUUC1+913LPM-II
8
J9800960 X-BALL SCREW ASS'Y 1 0133-631003-A
9
J6102001A CABLEVEYOR-X 1 HSP 0450-3B-50R 14LINK
10
J6509001A CABLEVEYOR BKT 1 KJP-0450 X, Y
11
J2100124 BRACKET CABLE BEYOR GUIDE 3 0131-631158
12
J7254002B CUSHION-X C/BEYOR 1 J7254002B
13
J7154041C GUIDE C/BEYOR-X 1 J7154041C
14
J9800959 SYNCHRO PULLEY ASS'Y 1 0133-631002-A
15
J2101502 X-MOTOR ASS'Y 1 QA-PW44
16
17 J7154049A BLOCK-READ HEAD 1 J7154049A LINEAR SCALE
18 J7154050A SUB PLATE Y 1 J7154050A LINEAR SCALE
19 J3215001A LEAD HEAD [RGH22x50D] 1 RGH22x50D LINEAR SCALE
20 J7054118A DOG SENSOR-L/S [J7054118A] 1 J7054118A LINEAR SCALE
21
22
23
24
25
26
27
- 1 -

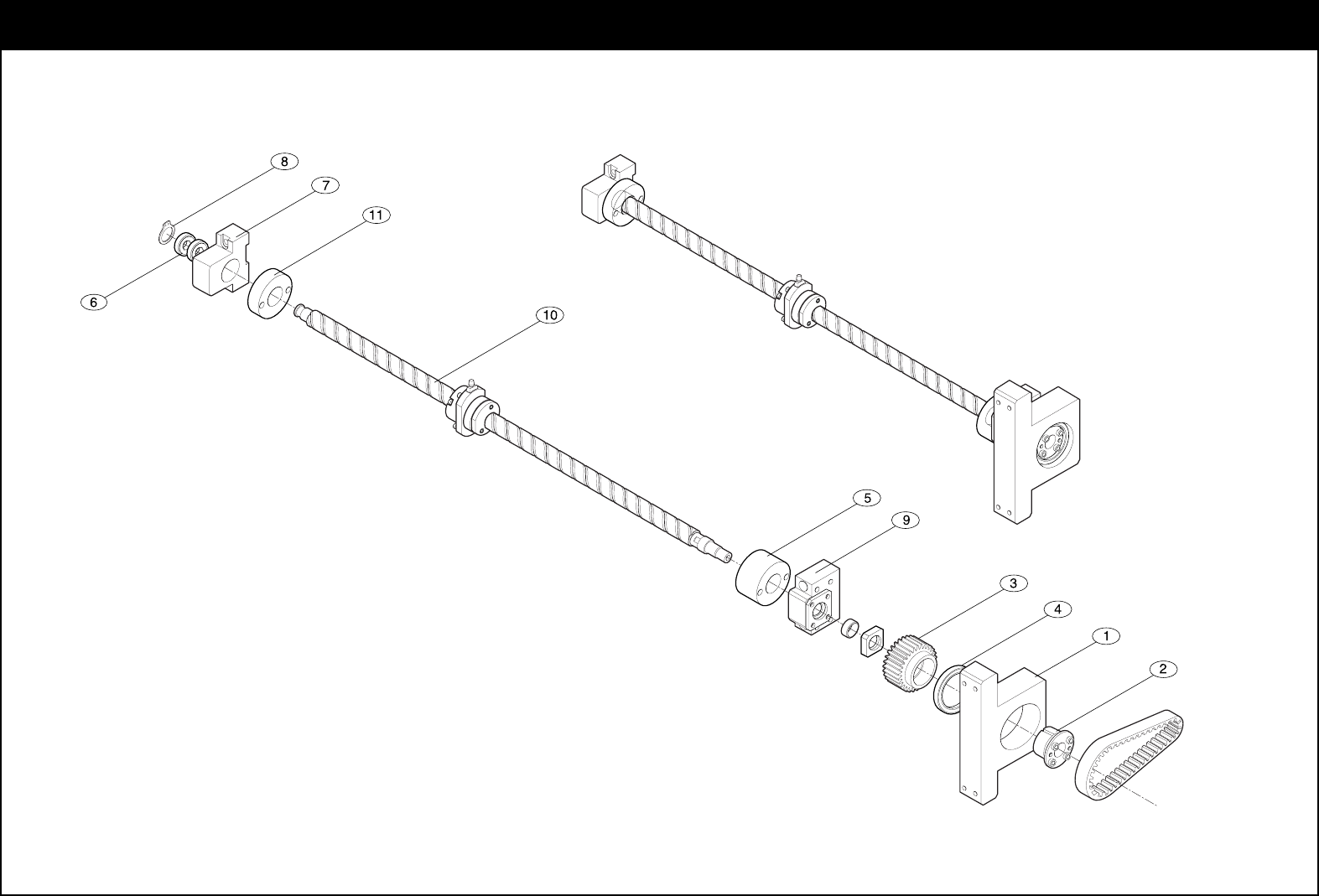

X-Ball Screw Ass’y
