CP40配件说明 - 第31页
Synchr o Pulle y Ass’y - 1 -
X-Ball Screw Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J2101200 HOUSING-BEARING 1 0131-631180
2
J1300530 MECHA LOCK X SCREW 1 MA10 (ISEL) 0131-631115
3
J1301357 BEARING 1 6807ZZ
4
J1301208 SCREW PULLEY-X 1 P32-5GT-A (0131-631005)
5
J1300648 CUSHION-X 1 ALX50-24
6 J1300509 BALL BEARING 2 6000ZZ
7
J2100089 SCREW SUPPORT-X 1 0131-631018-P1
8
J1300517 C-RING 1 10mm (SHAFT)
9
J1301707 SUPPORT UNIT 1 AK12S1
10
J1301205 BALL SCREW-X 1 GH1632QS-HEFR (0131-631031)
11
J2101375 CUSHION-X 1 ALX 50-13
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 1 -

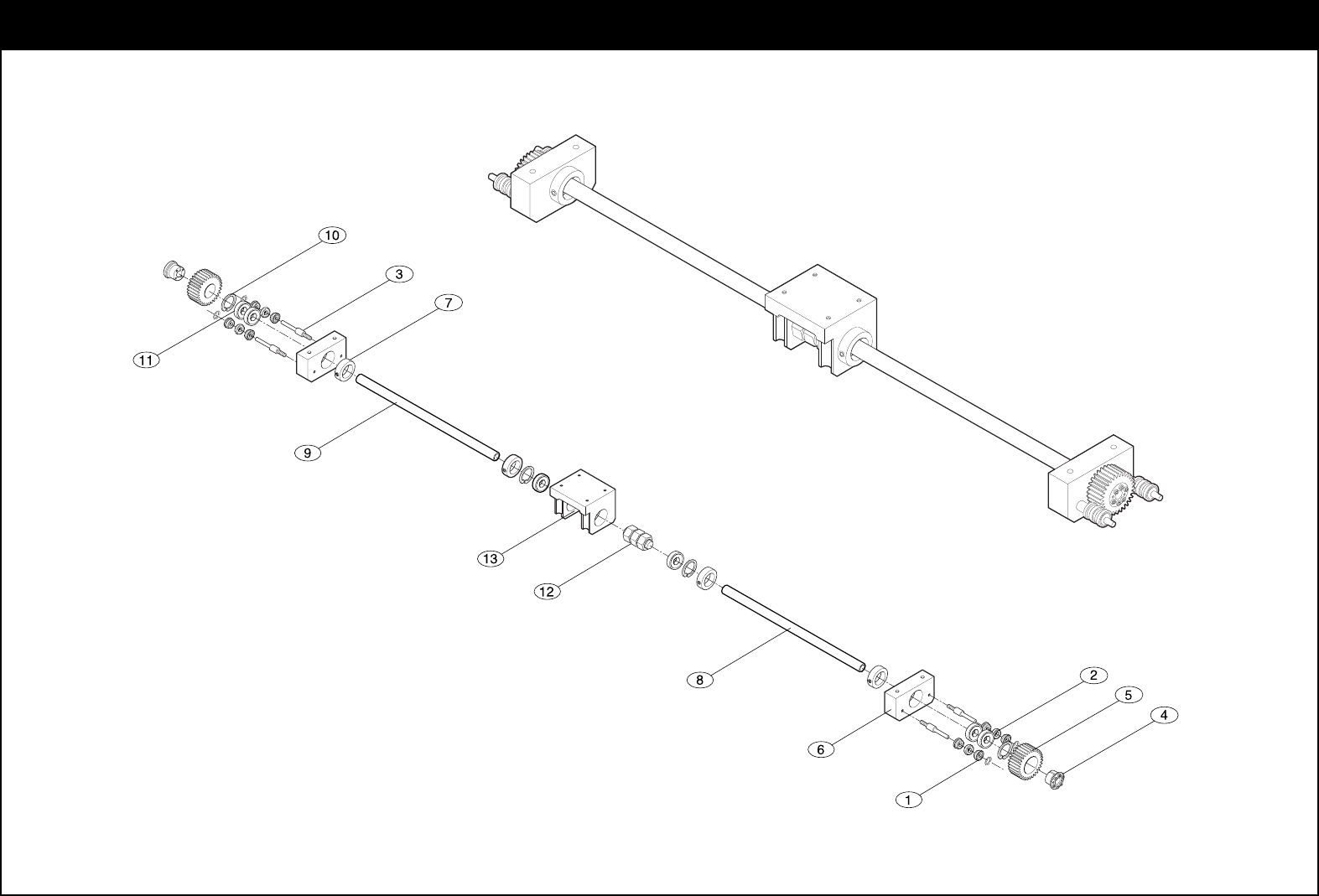

Synchro Pulley Ass’y
- 1 -
Synchro Pulley Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J1300504 BEARING 8 F606ZZ
ONLY FOR CP-40LV+
2
J1300503 BEARING 4 606zz
ONLY FOR CP-40LV+
3
J2100085 BEAIRING BAR 4 0131-631009
ONLY FOR CP-40LV+
4
J1300532 MECHA LOCK SYNCHRO 2 MA15
ONLY FOR CP-40LV+
5
J1301207 SYNCHRO PULLEY 2 P25-5GT-A (0131-631003)
ONLY FOR CP-40LV+
6 J2100087 PIPE SUPPORT 2 0131-631014 ONLY FOR CP-40LV+
7
J1300651 SET COLLAR 4 SC1512-SS41 (MINAMI)
ONLY FOR CP-40LV+
8
J1301221 TORSION BAR 1 SLIDE PIPE 15*10 512L
ONLY FOR CP-40LV+
9
J1300579 TORSION BAR 1
SLIDE PIPE 15*10 497L (0131-631010)
ONLY FOR CP-40LV+
10
J1300519 C-RING 4 32mm (HOLE)
ONLY FOR CP-40LV+
11
J1300510 BEARING 6 6002ZZ
ONLY FOR CP-40LV+
12
J1300529 COUPLING 1 N-15-15 (ISEL)
ONLY FOR CP-40LV+
13
J2102235 SUPPORT-SYNCHRO SHAFT 1 0131-631152-P1
ONLY FOR CP-40LV+
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 1 -
